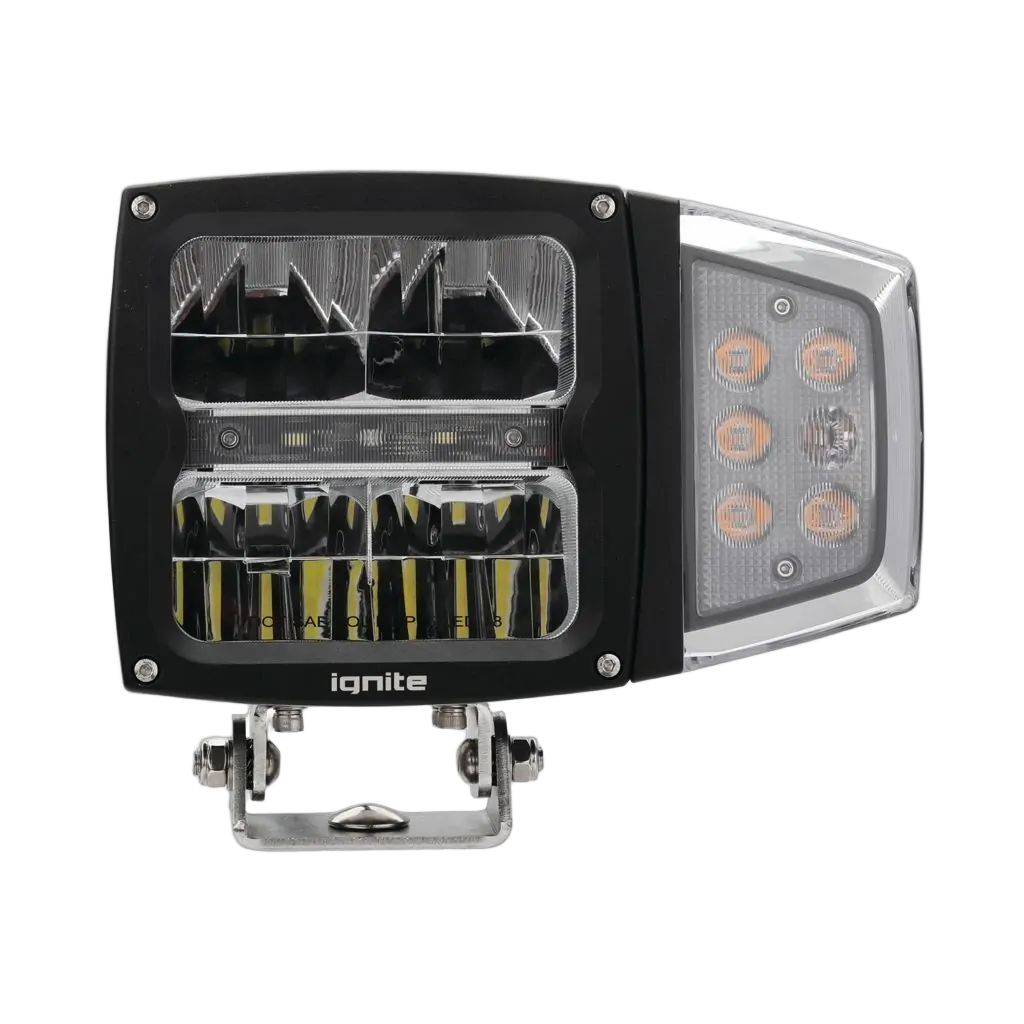

Ignite Square Combined LED Head and Indicator Lamp 10 - 30 Volt 80 Watt
Low Beam: 1,800 Raw Lumens and 1,530 Effective Lumens and 5,700K
High Beam: 3,600 Raw Lumens and 3,060 Effective Lumens and 5,700K
Indicator Lamp: 400 Raw Lumens and 340 Effective Lumens and 2,200K
Position Lamp: 160 Raw Lumens and 130 Effective Lumens and 5,700K
Current Draw: 6.7amp @ 12 Volt and 3.31amp @ 24 Volt
Polycarbonate Free Form Optical Reflector Technology for Low and High Beam Lamps
Polycarbonate Lens assembly
227.5mm x 150mm - Black Fascia
Integrated Electronic Thermal Management (ETM)
Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
Indicator Lamp has multi-directional mounting allowing it to be mounted on the Left Hand side, Right Hand side or
on top of the Headlamp housing providing diversity of mounting options
Stainless Steel Single Bolt Mount Bracket and Hardware
400mm Lead with 4 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
50,000 Hours LED Lifespan
High / Low Beam, Position and Indicator Lamps
ECE R6, R7, R10, DOT and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
Weight: 1.5kg
Spare Parts:- IWH030 Adaptor Harness for Negative Switched Vehicles
2 x 10 Watt High Intensity ETI LED's for Low Beam
4 x 10 Watt High Intensity ETI LED's for High Beam
5 x 5 Watt High Intensity Prolight Amber LED's for Indicator Lamp
2 x 1 Watt LumiLEDs LED's for Position Lamp
