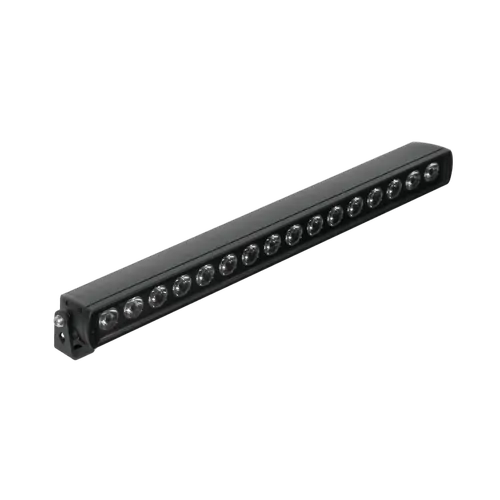

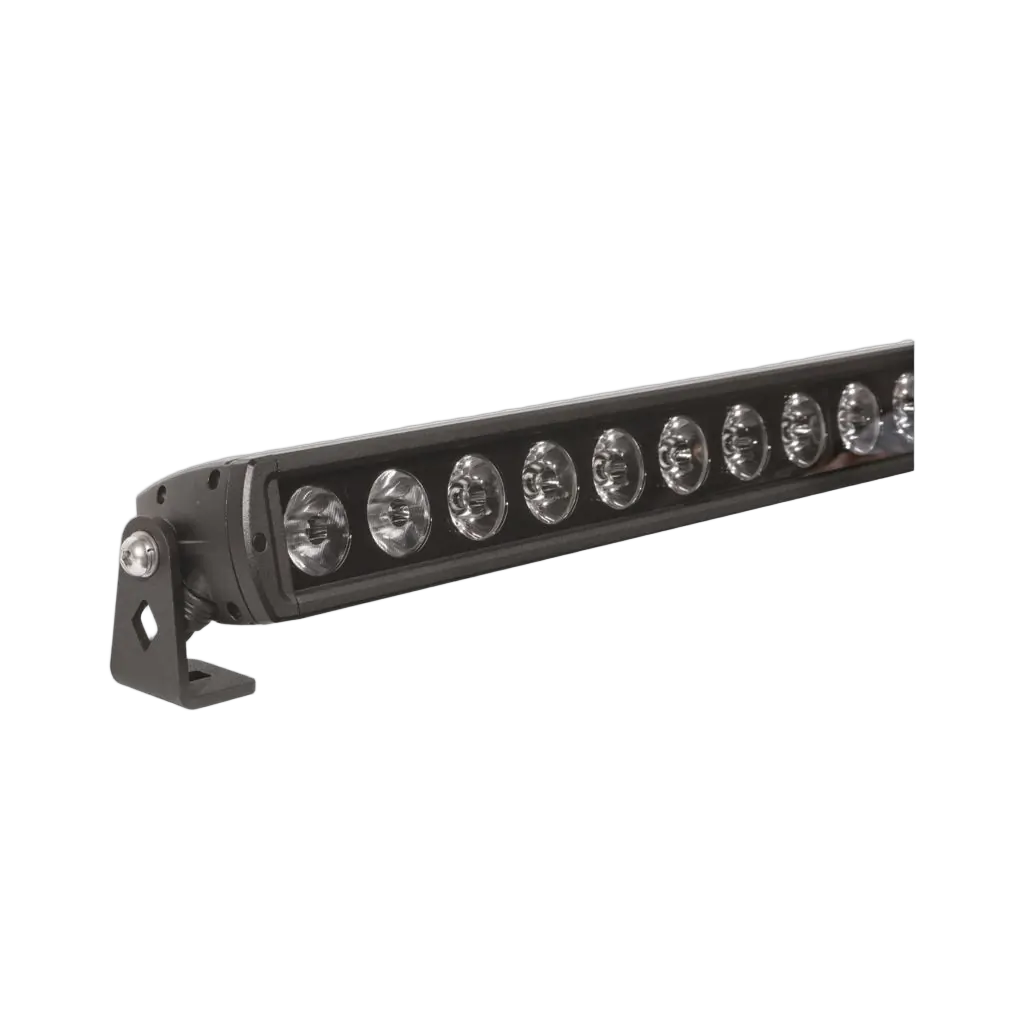

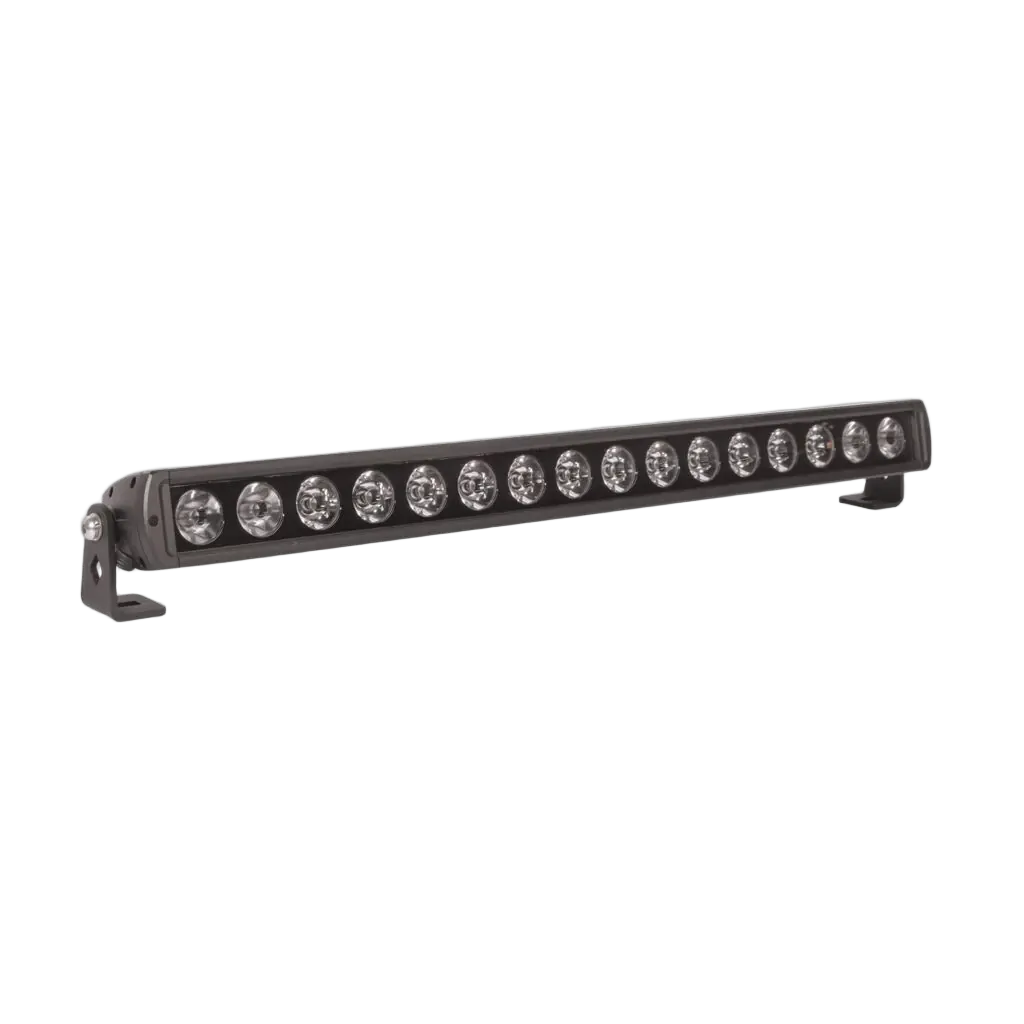

Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 160 Watt
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
500mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Spot (Pencil) Beam Pattern 15 Degrees
Reverse Polarity Protection
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R112, R10 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
.
Spare Parts:-
IBB50MM Round Bullbar Mounting Bracket 50mm
16 x 10 Watt High Intensity Osram LED's
IBB64MM Round Bullbar Mounting Bracket 64mm
IBB76MM Round Bullbar Mounting Bracket 76mm
IAS40MM 40mm Spacer Mounting Bracket
IBB01 Back Mounting Bracket
IBB02 Spare Bottom Mounting Bracket
16,560 Raw Lumens, 1 Lux @ 575m and 6,000K
1 Lux @ 575m and 330,625cd Peak Beam Intensity
Current Draw: 10.3amp @ 12 Volt and 5.2amp @ 24 Volt
Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
