The all new Australian made compact DL230 HTX is the ultimate fusion of HID and LED technology, providing the instant flood of LED combined with the unmatched long-distance of HID, eliminating the need for additional spotlights and bars beyond one set of HTX.

FEATURES:

• 70w HID bulb within 170mm reflector
• 20 x genuine Lumileds LEDs providing flood beam pattern
• 1768m @1 LUX
• Lightweight glass filled nylon composite housing
• 6063 extruded aluminium for optimum heat dissipation
• IP69k rated to protect against moisture / contaminant ingress
• UV stable hard coated impact resistant polycarbonate lens
• Stainless steel hardware
• Three mode operation for complete control
• LED – for instant wide beam
• HID – for long distance
• Combine the two for ultimate visibility
• High current waterproof connector
• Genuine Gore® waterproof membrane with mechanical seal
• Over, under and reverse voltage protection
• Thermal overload protection
• Australian made
• 3 year warranty

SPECIFICATIONS:

• LED power: 80W
• HID power: 70W
• Effective lumens: 8400
• Input voltage range: 10-16V DC
• Current draw: 11Amps @ 13.2V
• LED colour temperature: 5000K
• Matched HID colour temperature
• Input cable length: 450mm (17.71″)
• Operating temperature: -40°C to 60°C
• Weight including bracket: 2.3kg (5.07lbs)
• Dimensions – 230mm diameter, 111mm depth, 245mm height including bracket

WHAT'S IN THE KIT

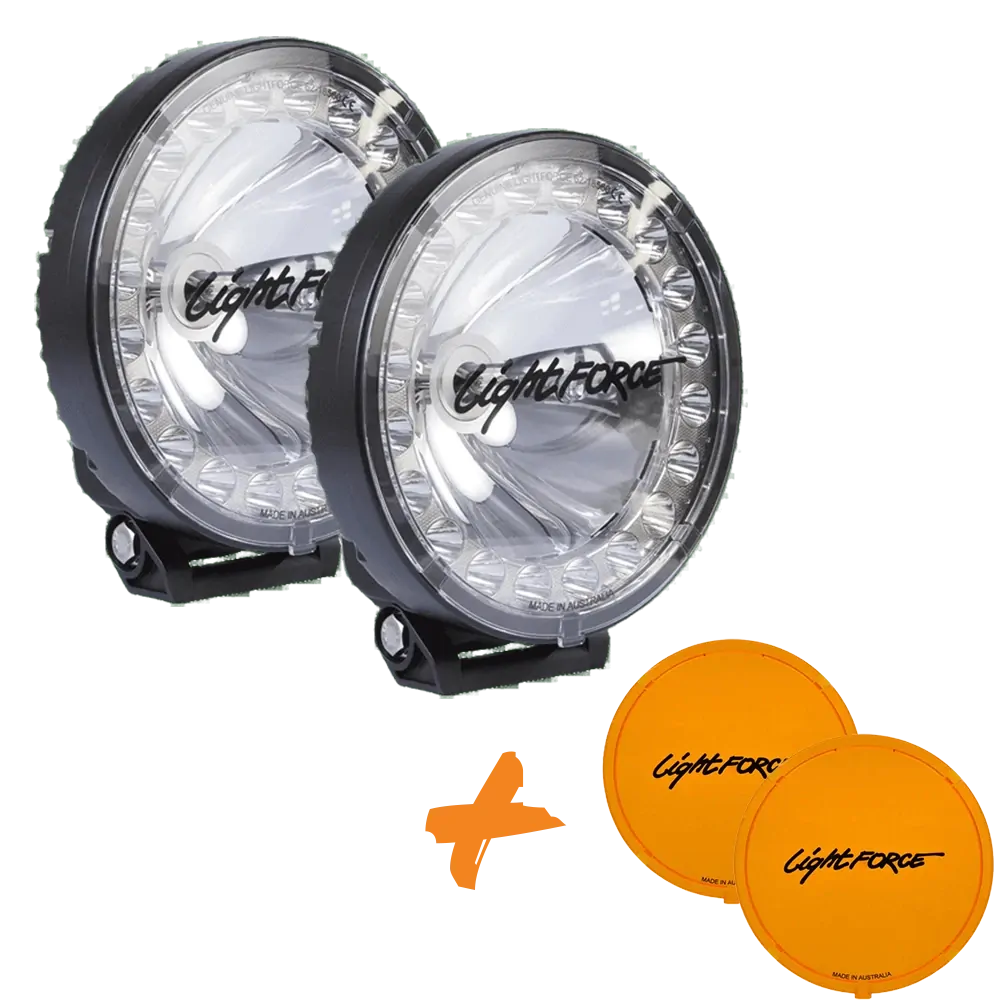

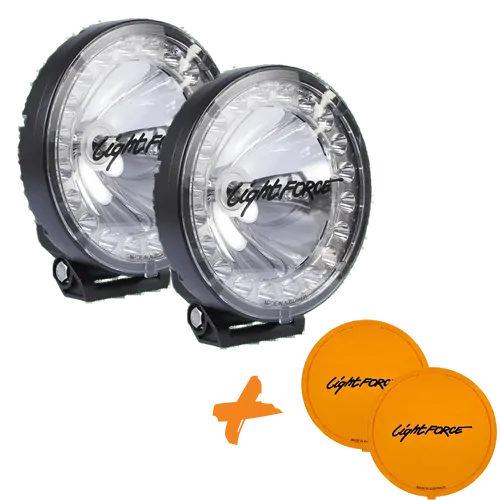

• 2x Lightforce HTX2 Hybrid Driving Lights (HTXMK2)
• 2x Lightforce HTX2 Clear Spot Filters (HTXMK2SFL)

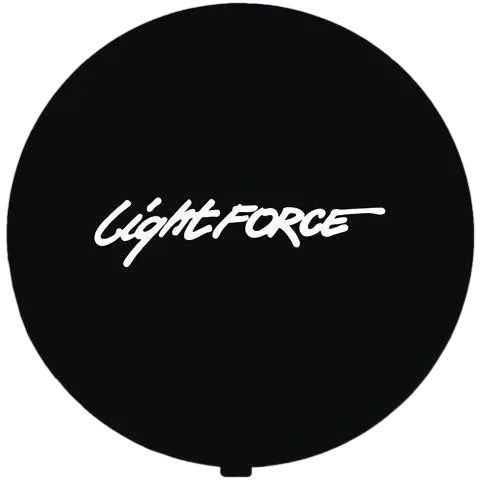

• 2x Lightforce HTX2 Black Covers (HTXMK2BC)

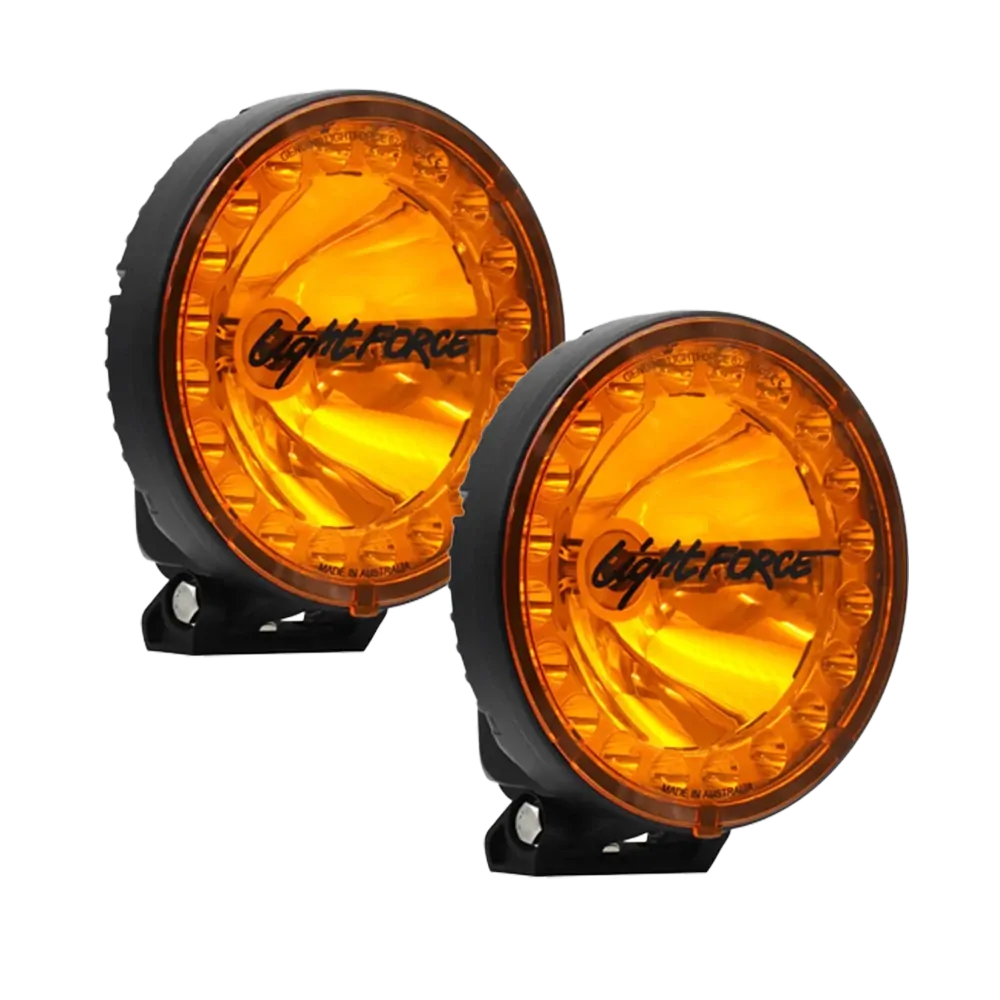

• 2 x Lightforce HTX2 Amber Filters (HTXMK2SAFL)

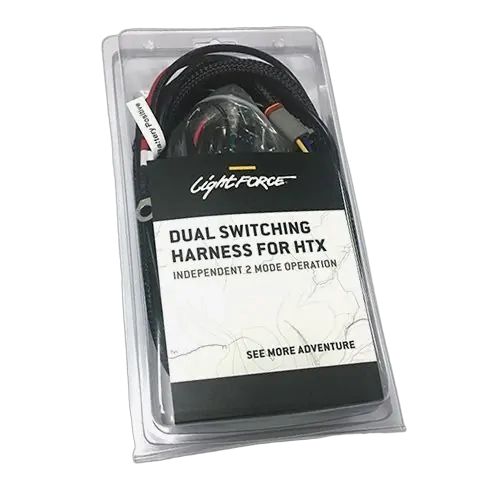

• 1x Lightforce Dual Switching Wiring Harness (LFDLHDS)
• 2x Reversible mounting bracket and hardware
• 2x Matching 4 pin waterproof harness adaptor
• 1 x User Instructions
