The XD Series 9” LED Driving Lights are built to deliver serious light output without the premium price tag. Designed to throw usable light up to 1500 metres down the road, they give you the distance you need for high-speed highway driving and remote night runs where visibility matters most.

With a wide 75° beam angle, the XD Series doesn’t just punch light straight ahead. It spreads illumination comfortably across both sides of the road, helping you spot hazards, wildlife, and track edges earlier, without harsh hotspots or wasted glare.

Running at a balanced 5700K colour temperature, these lights provide a clean, natural light that’s easy on the eyes and reduces fatigue on long night drives. The result is clearer contrast, better depth perception, and less reflection off road signs and dust.

Built for Australian conditions and designed for real-world touring and off-road use, the XD Series combines robust construction with a practical beam pattern that works where it counts. From outback tracks to long coastal highways, these lights put the light where you actually need it.

No gimmicks. No unnecessary extras. Just solid performance you can rely on when the sun goes down.

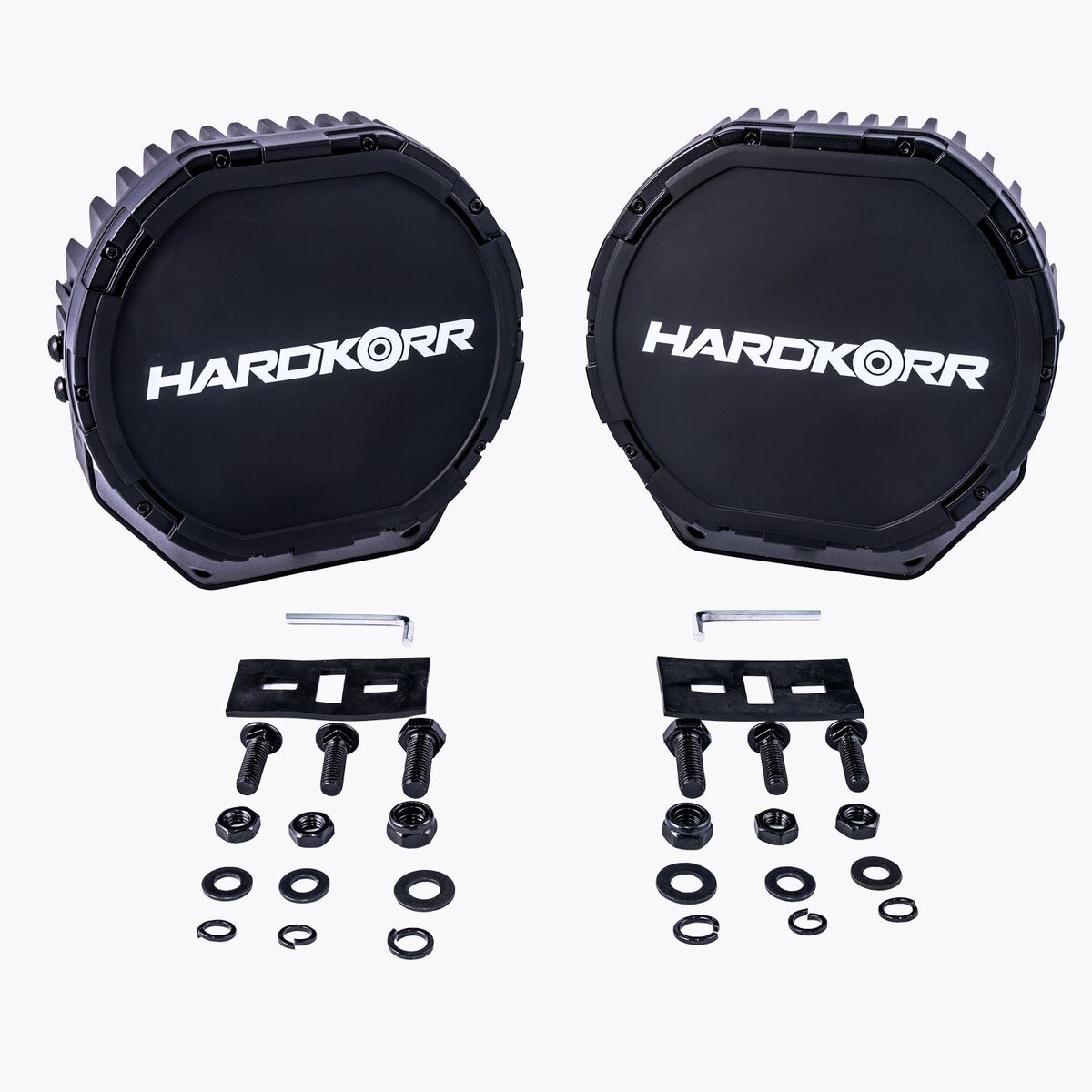

Item Included
2x XD-Series Driving Lights

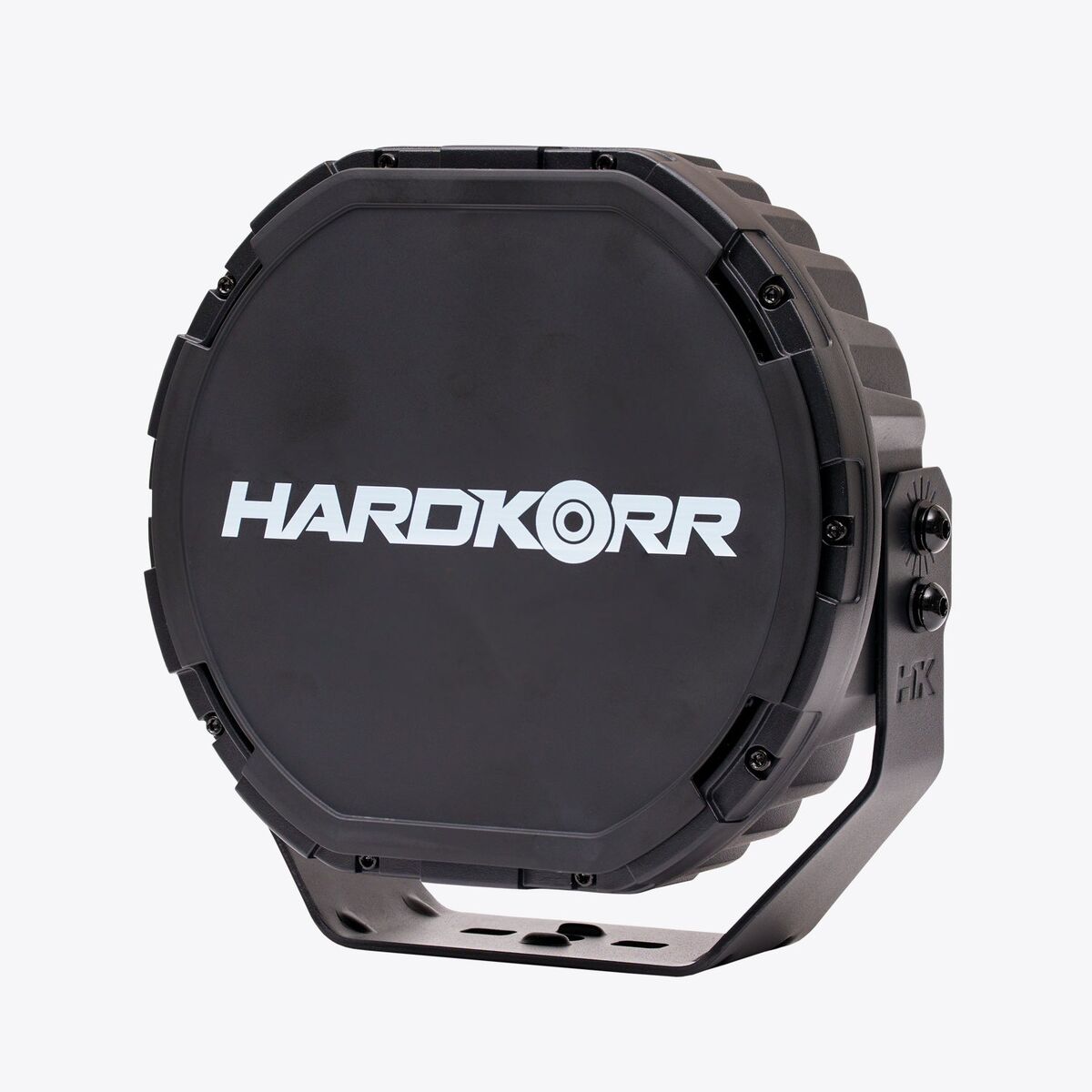

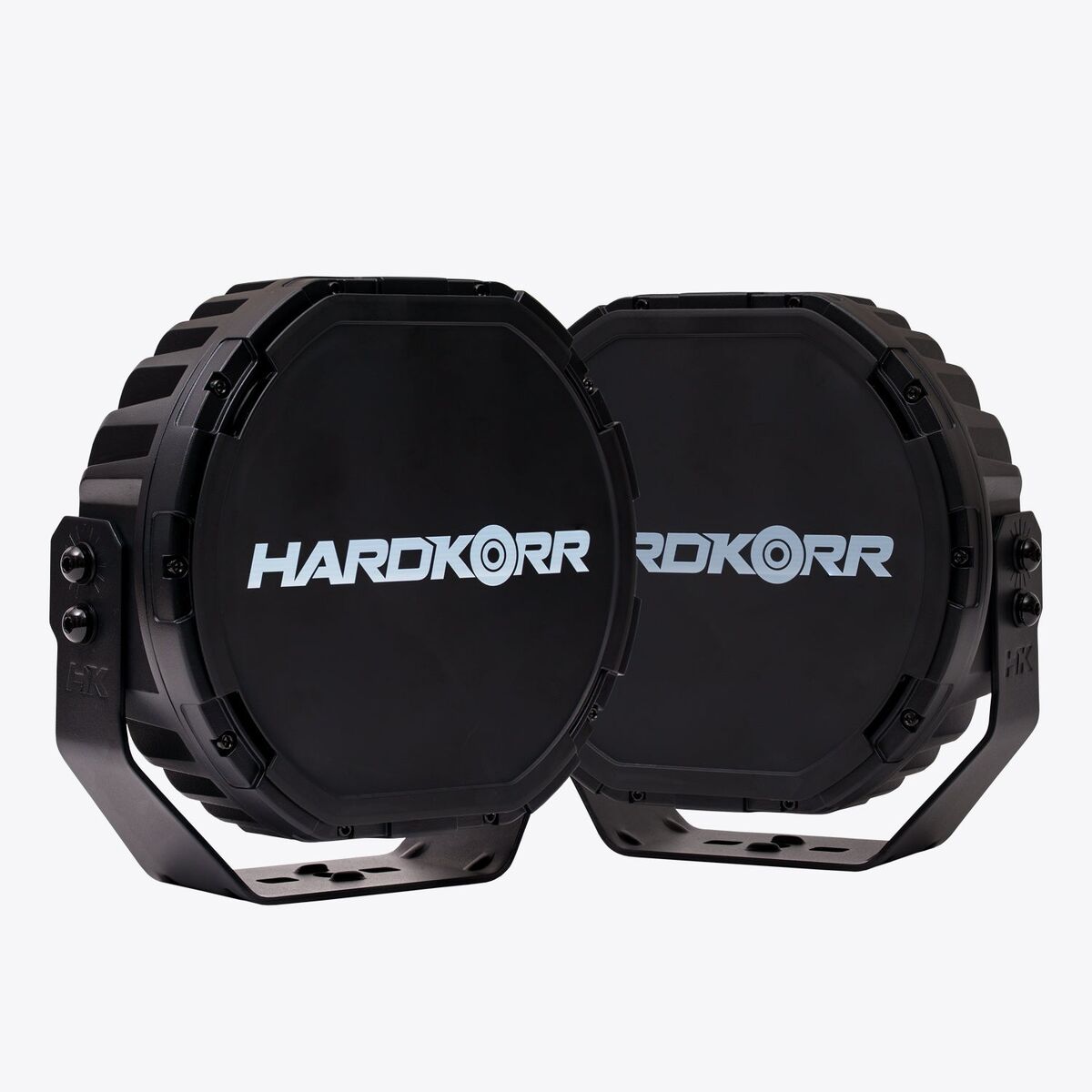

2x Black lens covers
6x Stainless steel bolts
6x Washers
6x Nuts
2x Rubber mounting pads
Documentation Warranty card

Note: Wiring Harness sold separately.



  • 1,500 m beam for remote touring
  • 75° pattern helps spot roadside hazards
  • 23,140 lm pair output keeps detail sharp
  • IP68/69K build handles creek crossings
  • 10–30 V input fits most 4WD setups
  • Alloy body and iron bracket go the distance
  • Size: 229 (L) x 230 (H) x 97 (D) mm
  • Weight: 2.6 kg each
  • Raw light output: 26,800 lm per pair
  • Effective light output: 23,140 lm per pair
  • 1 lux distance: 1,500 m
  • Beam angle: 75°
  • Peak intensity: 1,140,000 cd
  • Colour temperature: 5,700 K
  • CRI: 70
  • LED chips: 20x OSRAM and 4x LUMINUS
  • Operating voltage: 10–30 V DC
  • Current draw: 11.67 A @ 12 V / 5.83 A @ 24 V
  • Power consumption: 140 W
  • Operating temperature range: -40°C to 80°C
  • Ingress protection rating: IP68 / IP69K
  • Housing material: powder-coated die-cast aluminium
  • Bracket material: powder-coated 3.4 mm iron
  • Lens material: UV-coated polycarbonate

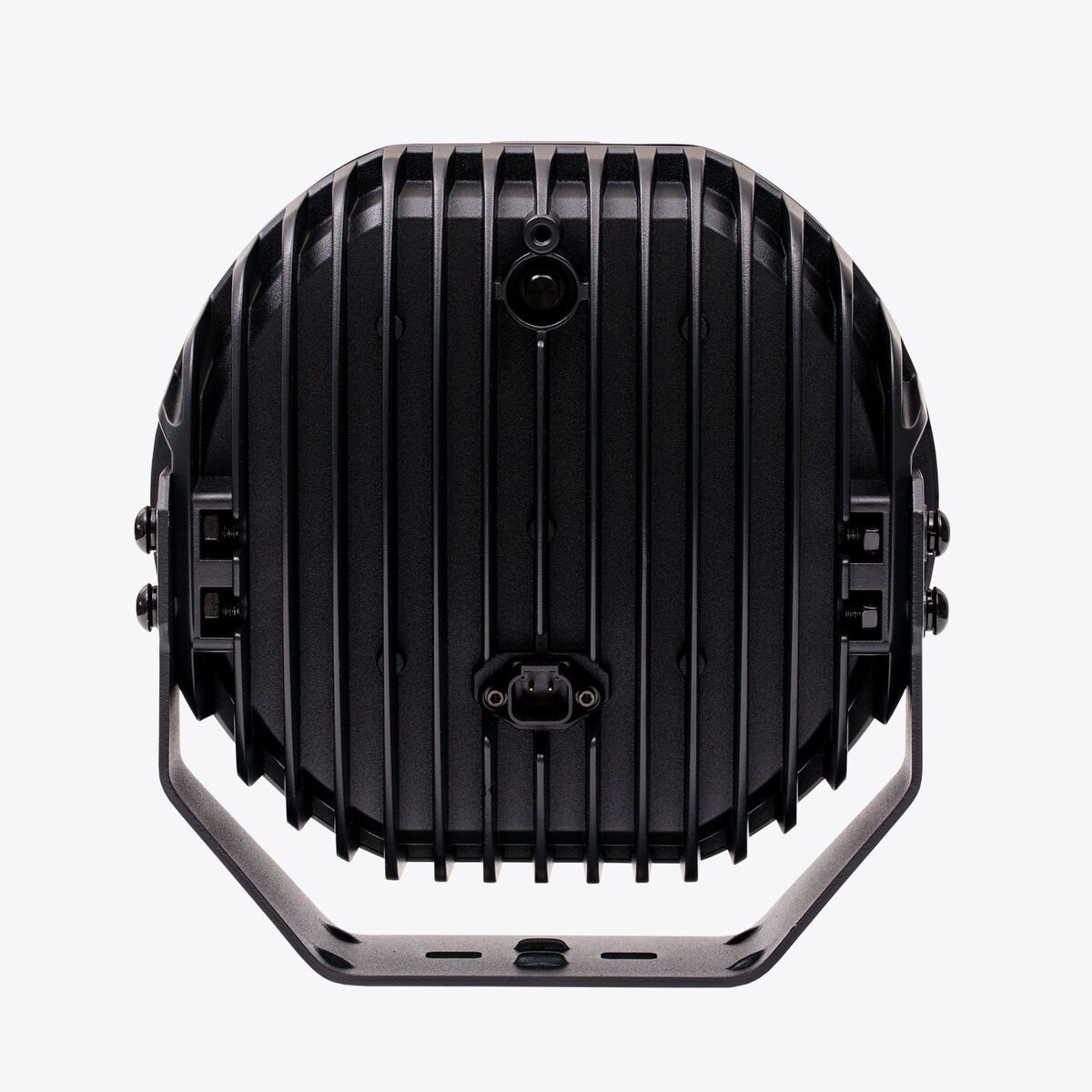

  • Electrical connector: 2-pin Deutsch DT
  • Certifications: EMC-CISPR 15, IP68/69K, CE-ROHS
  • 2x XD Series 9" LED driving lights
  • 2x Black lens covers
  • 6x Stainless steel bolts
  • 6x Washers
  • 6x Nuts
  • 2x Rubber mounting pads
  • 1x Warranty card
SKU DLXD-9P
Barcode # OEBC720499
Brand Hard Korr
Shipping Weight 6.0000kg
Shipping Width 0.450m
Shipping Height 0.150m
Shipping Length 0.300m
