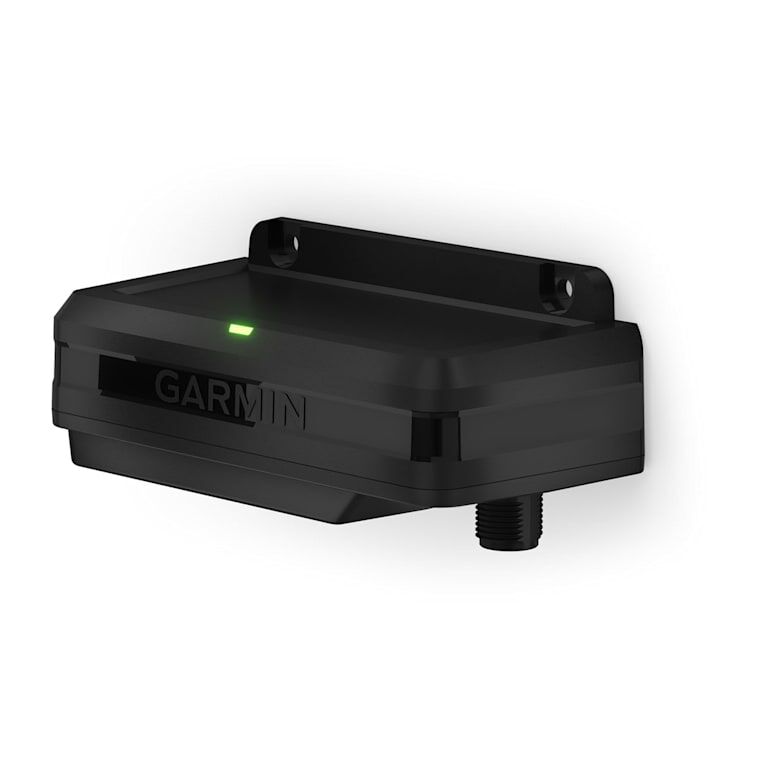

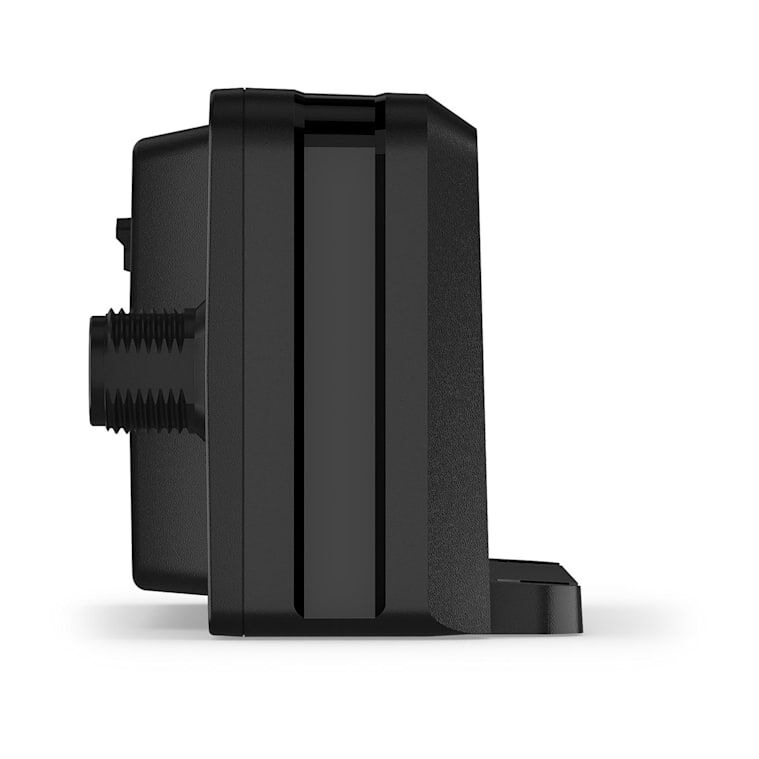

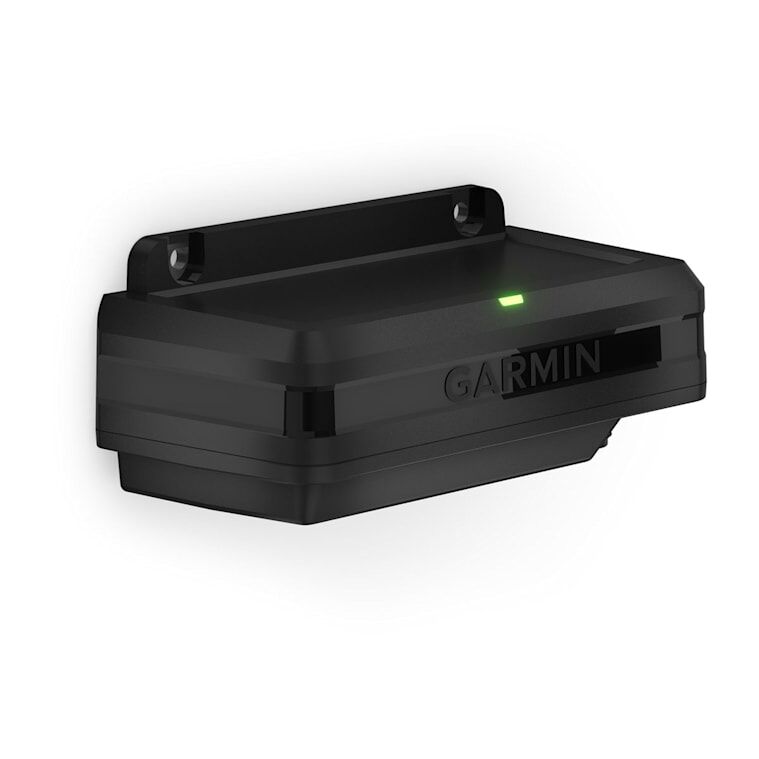

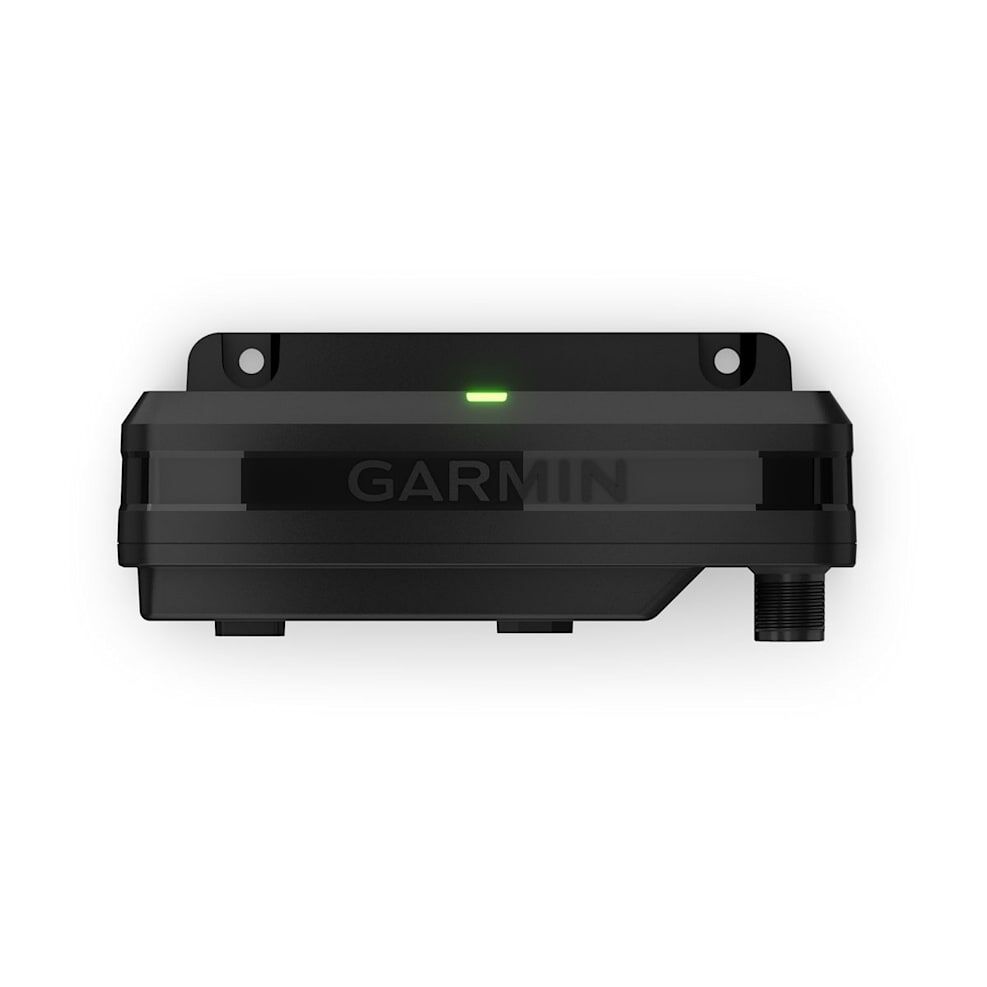

Control LED lights on your boat from your compatible chartplotter or smartphone with the Garmin Spectra light control module (lights not included). Assign and control different light groups for cup holders, speakers, strip or courtesy lights, and more to create your own vibe.
BE THE LIGHT DJ
From bow to stern and everything in between, this module lets you control and set up different light groups and scenes.
IN YOUR CONTROL
Control lights over the NMEA 2000® network with your compatible chartplotter or with the ActiveCaptain® App on your compatible smartphone.
MATCH THE BEAT
See the beat by syncing the LED lights to the music track with the audio sync feature.
FUSION® AND JL AUDIO COMPATIBLE
Control LED lighting on Fusion and JL Audio boat speakers and subwoofers plus wake tower speakers (sold separately).
GROW THE SYSTEM
Add more lights after the initial install with a scalable system.
RUGGED DESIGN
Built to withstand the abuse of life on the water (in accordance with IP66/IP67 ratings)
SPECS
General |
|
| Unit dimensions (WxHxD) | 197 x 52 x 47 mm LC302: (7.76″ x 2.05″ x 1.85″) 113 x 52 x 47 mm LC102: (4.45″ x 2.05″ x 1.85″) |
|---|---|
| Weight | LC302: 158 g (5.57 oz) LC102: 83 g (2.93 oz) |
| Water rating | IP66/IP67 |
| OPERATING TEMPERATURE RANGE | 0° to 50° C (32° to 122° F) |
| Compass-safe distance | 20 cm (7.87″) |
| WARRANTY | 2 years |
| Cable construction | Multistrand tinned copper with white PVC outer jacket |
| WARRANTY | 1 year |
Electrical |
|
| Input voltage | 10.8 to 16 V (12 V system) 21.6 to 32 V (24 V system) |
| Input current (max) | LC302: 6 A LC102: 2 A |
| Output current (max) | 2 A (per output connector) |
| NMEA 2000® LEN | 2 (≤ 70 mA) |
| Over voltage protection | Yes |
| Over current protection | Yes |
Lighting Features |
|
| LED connection types | RGB, RGBW, CRGBW, single channel |
| Lighting modes | Colour pick, audio sync (colour blend/audio spectrum), effects |
| Premium control and setup via | MFD or ActiveCaptain® app |
| Control via | Fusion Apollo™ Stereo |
IN THE BOX

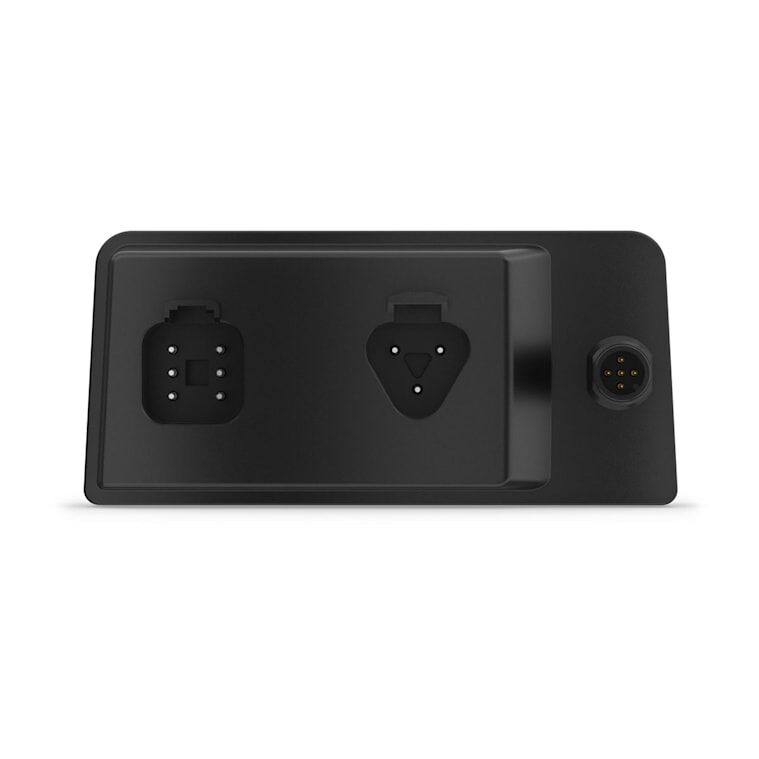

- Garmin Spectra LC302 or LC102 (depending on the version selected)
- Power flying lead with water-resistant three-way connector
- Three (LC302) or one (LC102) LED flying leads with water-resistant six-way connectors (depending on the version selected)
- Tee connector for the NMEA 2000® network
- Backbone/drop cable (0.3 m) for the NMEA 2000® network
- Mounting screws
- Documentation
| SKU | 010-02829-00 |
|---|---|
| Barcode # | 0753759306908 |
| Brand | Garmin |
| Shipping Weight | 0.3400kg |
