Specifications

Circuit Breakers
Maximum Voltage 48V DC
Circuit Breaker Class Type III – switchable/manual reset – trip free
Circuit Breaker Type Single Pole Thermally Responsive Bi-metal Blade
Interrupt Capacity 3000A @ 48V
Minimum Operating Temp -32° C
Maximum Operating Temp 82° C
Ignition Protected Meets SAE J553, J1625, J1171, UL1550
Splash & Dust Proof IP67
UL Rating Housing is Thermal Plastic UL Rated, 94V0
Terminal Stud 25-70A - M6 (accepts 1/4″ ring Terminal)
80-200A - M10 (accepts 3/8″ ring Terminal)
Terminal Stud Torque 50 in-lb (5.65 Nm)
Weight 0.23 kg

Note: Specifications subject to change without notice.

SKU EN-RCB25
Barcode # OEBC527630
Brand Enerdrive
Shipping Weight 0.4500kg
SKU: EN-RCB25

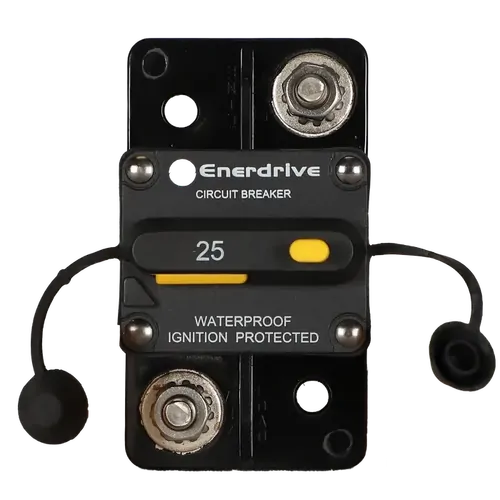

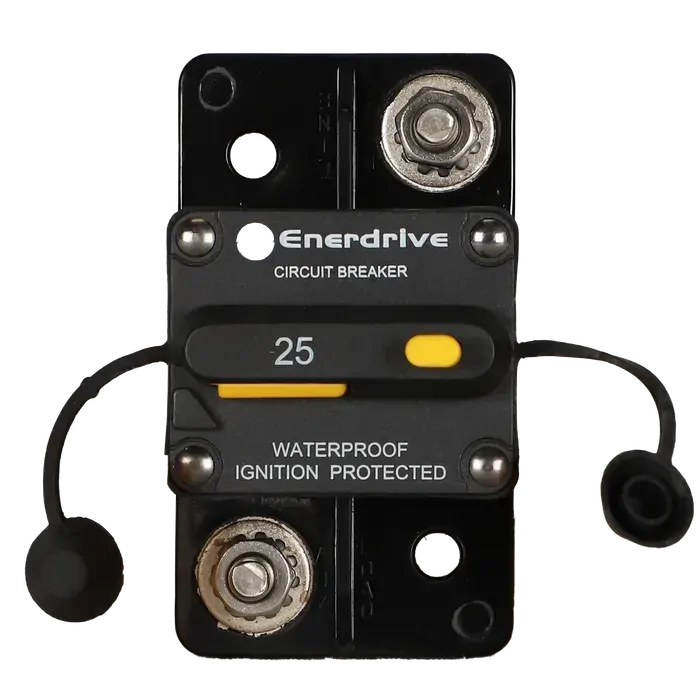

Enerdrive 285-Series Circuit Breakers Surface Mount 5/16 Stud 25A

QOH: 0
QTY: 999
Sale price
$50.99

Don't Pay RRP:$52.00

Earn 500 Outback Rewards Points

Sale price
$50.99

Don't Pay RRP:$52.00

Pay in 4 interest-free payments of $12.75 PayPal Checkout

afterpay More info.

Make 4 payments of $12.75 over 8 weeks and get it now!

or interest free for up to 12 months with zipMoney
Make 4 payments of $12.75 over 8 weeks and get it now! Afterpay
