Description
Features
- Stainless steel studs, nuts and washers for optimal corrosion resistance
- Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
- Special fiber reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
- Unique grid optimized footprints allow space saving arrangements of multiple products
- Common interconnection heights for easy combining of multiple products using link plates
- Robust transparent covers with breakouts to allow wire access from any direction
- Smart terminal design allows dual mirrored cable lug connections
- Easy in-system connection access due to top locked covers
Specifications
Model | Part No. | Grid size | Maximum Current1) | Max. Voltage | Connection stud size |
---|---|---|---|---|---|
DCM 3xM8 Busbar | DCM-5073160 | 1 x 2 | 600A | 50V | M8 |
DCM 3xM10 Busbar | DCM-5073180 | 1 x 2 | 600A | 50V | M10 |
1) Higher voltages may require additional safety measures
Specifications
SKU | DCM-5073160 |
---|---|
Barcode # | OEBC527651 |
Brand | Enerdrive |
Shipping Weight | 0.0600kg |

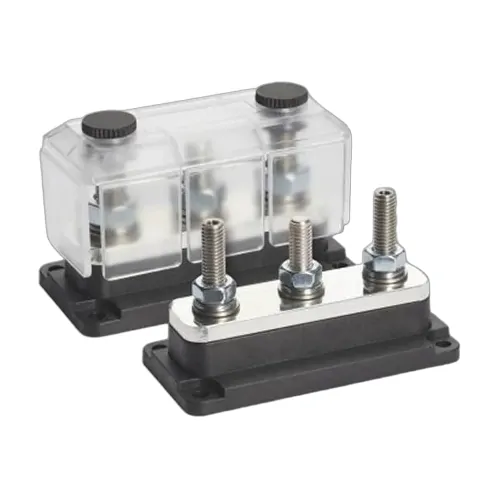

Enerdrive 3 Stud Busbar - M8
