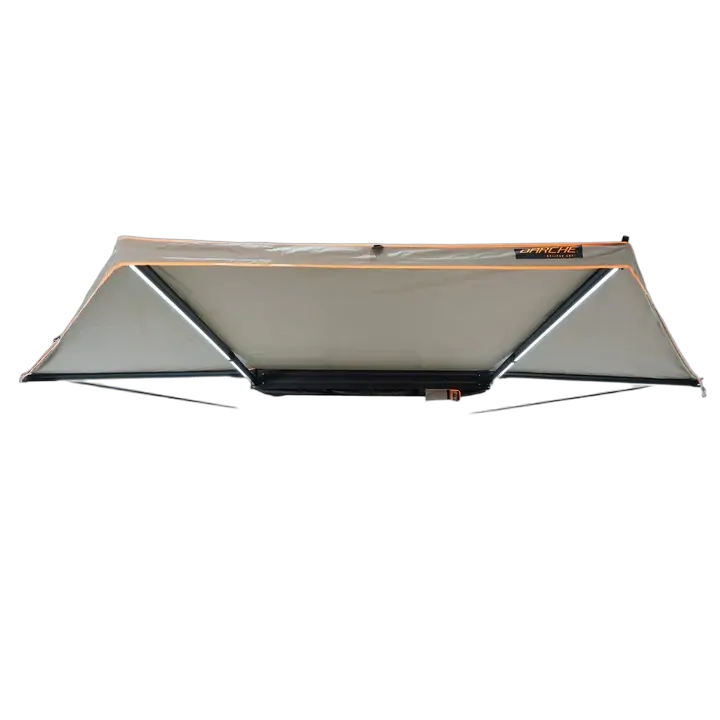

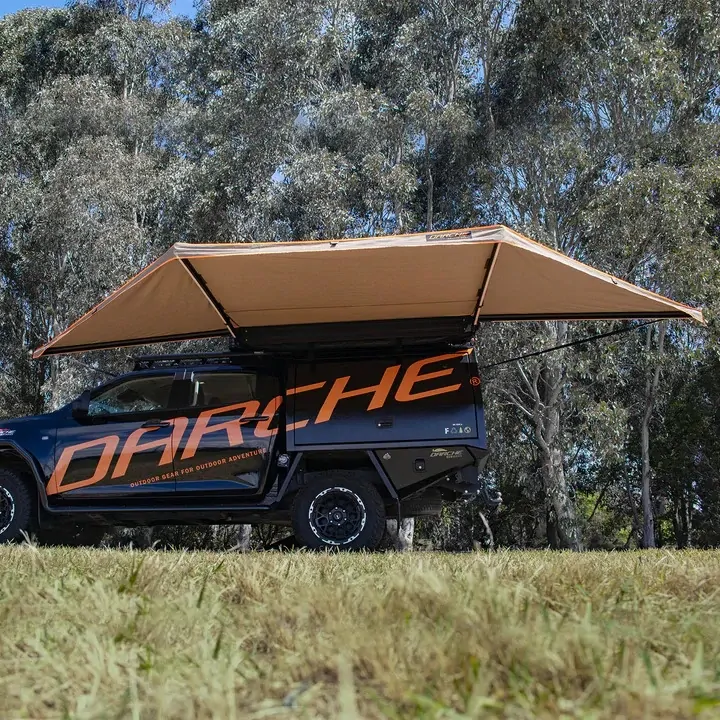

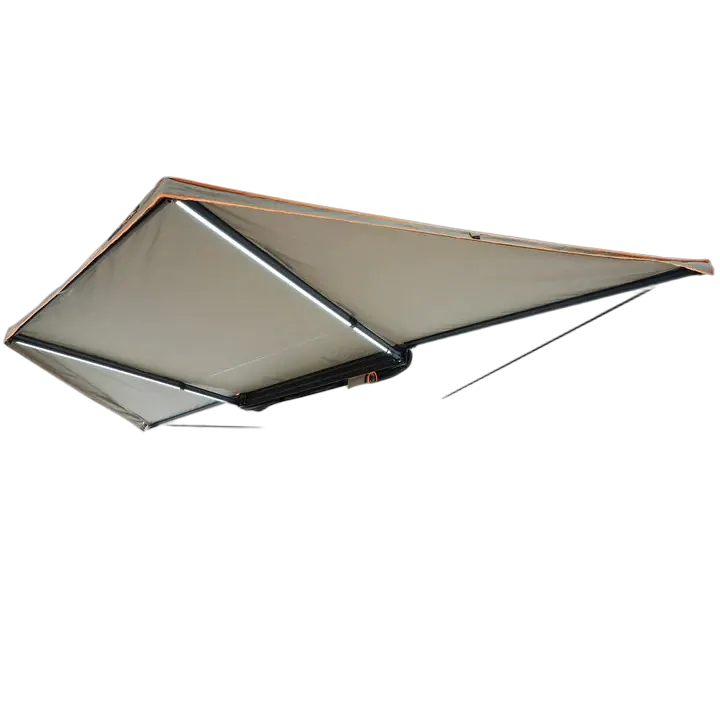

DARCHE Eclipse 180 Freestanding LED Awning

The DARCHE Eclipse 180 Freestanding LED Awning is a heavy-duty shelter solution providing 8.2m² of coverage for your 4WD or camping setup. Engineered for the Australian environment, this awning is constructed from 320gsm ripstop polycotton canvas with a 3000mm waterhead rating to ensure maximum weather resistance. The innovative two-piece backing plate design allows for a fully enclosed transit cover, while integrated 8mm sailtrack channels let you attach additional accessories or wall kits.

Safety and durability are verified through a rigorous 30-day wind-testing regimen using calibrated data from the Australian Bureau of Meteorology. Results confirm the Eclipse 180 is wind rated to 30km/h in freestanding mode, though it is recommended to use the included poles and guy ropes for unpredictable conditions. For night-time utility, the rafter arms feature integrated dimmable LED strips with a dedicated amber setting to prevent attracting insects to your campsite.

Product Features

• Wind Stability: Certified 30km/h wind rating when used in freestanding mode.
• Superior Coverage: Provides 8.2m² of sheltered space around the side of the vehicle.

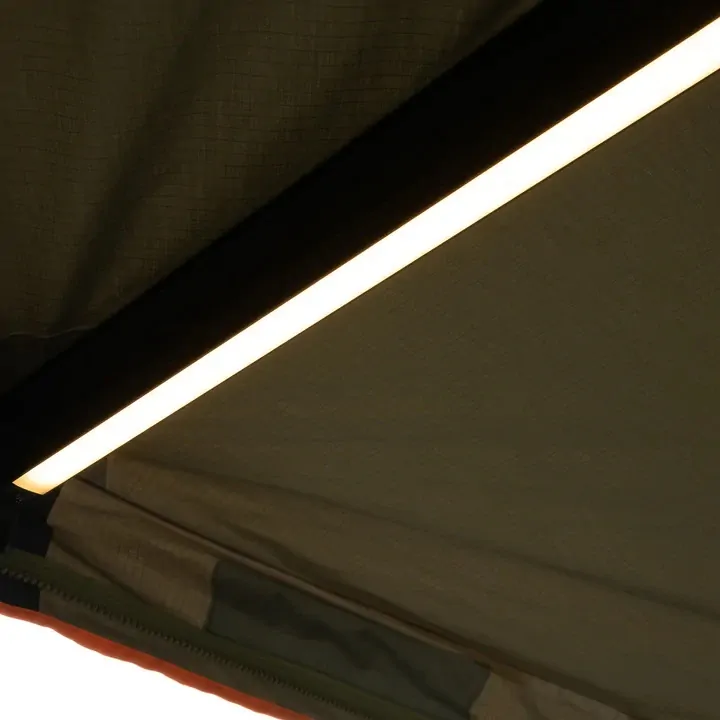

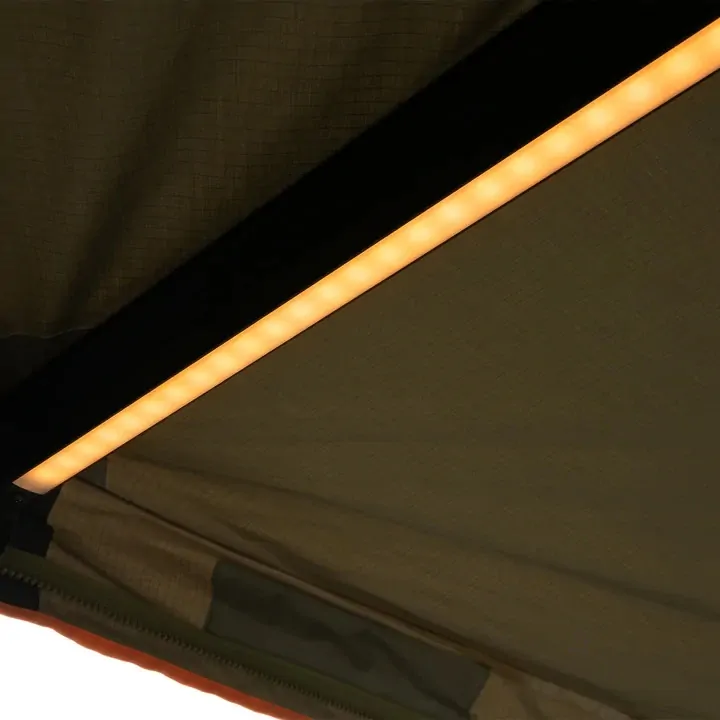

• Integrated Lighting: Built-in dual-colour (white and amber) dimmable LED strips in the rafter arms.
• Heavy-Duty Fabric: 320gsm ripstop canvas with a UPF 50+ rating for sun protection.

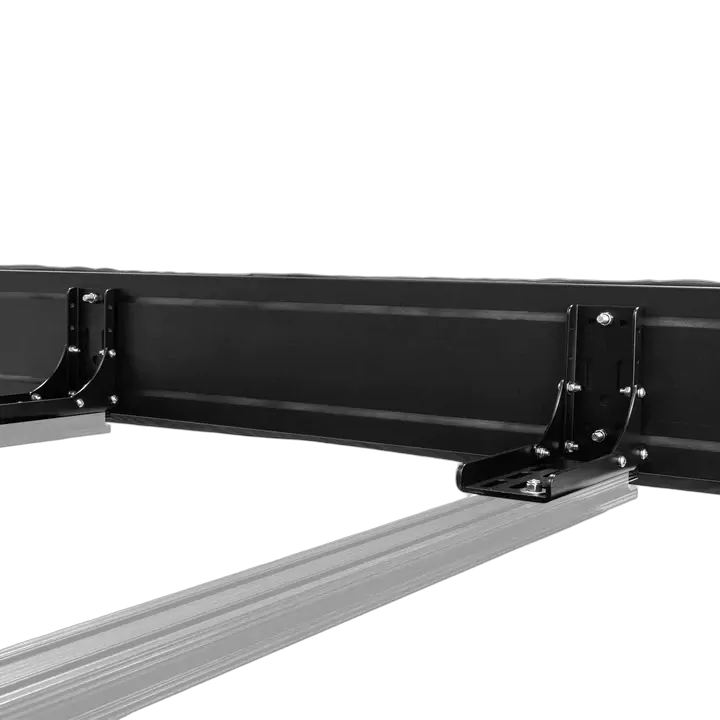

• Versatile Mounting: Includes height-adjustable brackets and is compatible with Roof Top Tent brackets.

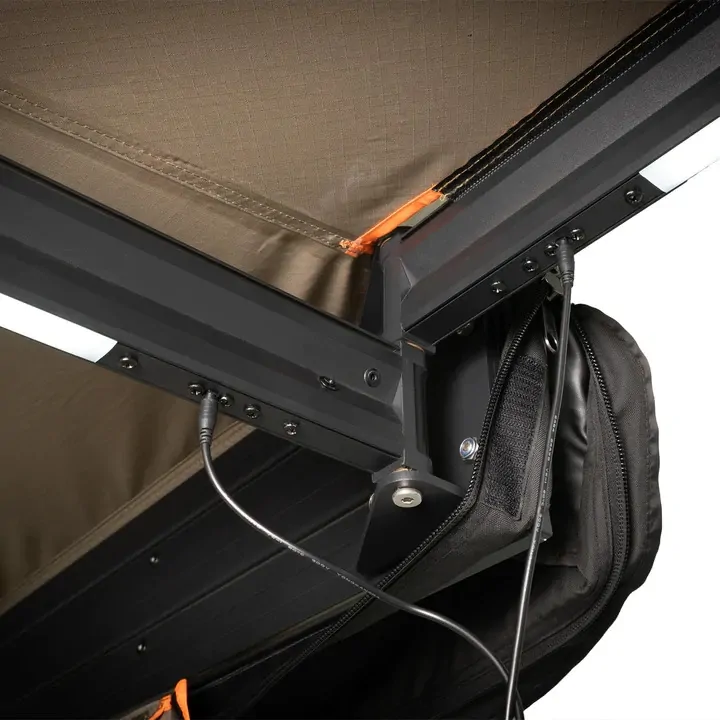

• X-Tube Frame: Aluminium alloy rafter arms and hinges designed for maximum structural strength.
• Wall Kits available (T050801744A and T050801744PV sold separately)
• Compatible with Roof Top tent brackets (T050801945 and T050801946, sold separately)

Product Specifications

• Coverage Area: 8.2 sqm.
• Wind Rating: 30 km/hr (freestanding).
• Fabric: 320gsm Ripstop Polycotton Canvas.
• Waterhead Rating: 3000mm.
• Weight: 21.0 kg.
• Packed Dimensions: 2220mm (L) x 160mm (W) x 180mm (H).
• Warranty: 3-Year Manufacturer Warranty.

Frequently Asked Questions

How does DARCHE verify the 30km/h wind rating?

DARCHE conducted a 30-day wind-testing regimen using an Omega OM-CP-WIND101A data logger to record wind speeds every second. The system was calibrated with data from the Australian Bureau of Meteorology to ensure accuracy. Testing showed the awning could withstand gusts over 50km/h, leading to the conservative 30km/h freestanding rating for consumer safety.

Can I mount this awning directly to a Roof Top Tent (RTT)?

Yes, but specific conditions apply. You must use compatible Darche RTT Awning Brackets (T050801945 or T050801946). When mounted to an RTT, the awning poles must be deployed at all times to prevent putting excessive leverage and structural stress on the tent frame.
