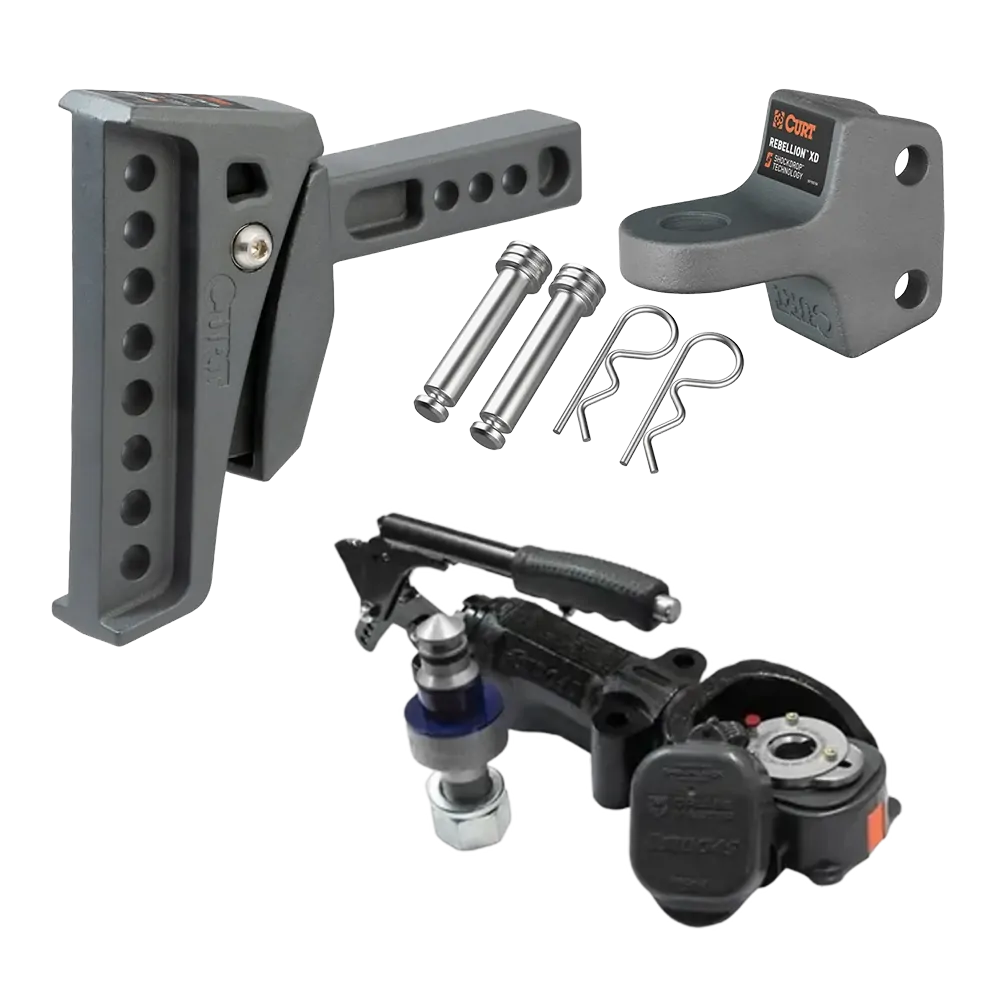

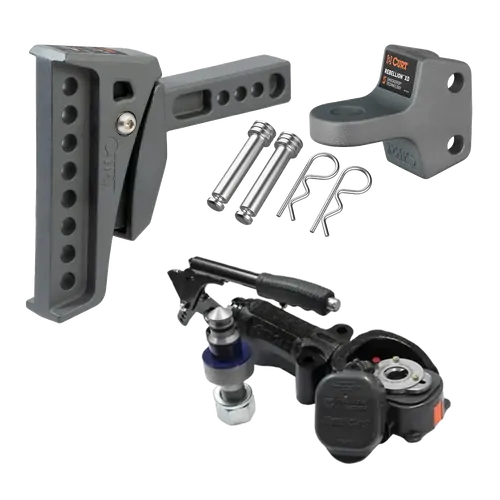

Curt Rebellion XD ShockDrop ™

CURT Rebellion XD ShockDrop Ball Mount 50mm Square Hitch (Class 4) is a leap forward in Towing technology. It provides more control, confidence, and a more comfortable ride, all while protecting your towing system from jerking, jarring, rattling, and trailer sway.CURT Rebellion XD Ball Mount is constructed with ShockDrop technology. Built into the ball mount is a cushioned isolator that inserts between the receiver shank and vertical shank. The isolator provides dynamic, adaptive suspension of the coupling point giving you a comfortable towing experience and provides increased control in events of sudden braking.Unlike other cushioned ball mounts, the CURT Rebellion XD ShockDrop Ball Mount has no airbags or bearings, making the unit virtually maintenance-free. When you're ready to tow, simply mount it onto your receiver hitch like you would any other ball hitch.

The six height adjustment positions ensure level towing of the trailer, and it is perfect for all kinds of pickup trucks and SUVs, including larger and lifted trucks.

• Adjustable, six-position head for precise levelling with different trailers

• 152mm maximum drop (shank cannot be flipped)

DO45

Key Features:

• 4,500Kg Rated

• D-Value & V-Value ADR Compliant

• Patented “Checklock” Gen.2 Dust Cap & Bumper for an easy, secure seal

• Reflective Reversing Strip

• Rear support webbing allows for mounting upside down on the underside of the drawbar

• Plus all the design and function recognised from the DO35 V3Plus

• Handbrake included

Fitment:

• The Cruisemaster DO45 Plus uses a wider 4 bolt mounting pattern than the DO35 to allow for the more substantial build, meaning you may need to modify your mounting plate if upgrading from a different coupling.

• Weight Distribution Systems - It is important to note when selecting a WDH or tow tongue for use with the DO45Plus that you select a unit suitable for use with the 1 1/4" shaft of the DO45 Plus Pin.

• For instructions on installation, maintenance and use refer the DO45Plus User Guide.

• *Please note while the DO45 Plus’s Zn-Ni with E-Coat provides superior corrosion protection it may fade with extended exposure to UV. This does not affect the operation of the DO45Plus. To best maintain the finish of the product, we recommend covering the DO35 coupling when not in use if stored outside and exposed to direct UV.

**Please note: DO45 Version 1 & DO45 Plus accessories and fittings are not interchangable

4 bolts at 185mm x 76mm (Front) x 54mm (Rear)
