DB Series

DB Series

Features / Specifications

  • Our lowest priced rear combination lamp
  • Competes with cheap Chinese copies
  • 8 x Super Bright LEDs with Enhanced Lens Optics
  • ECE approved
  • IP67 100% Water proof
  • 12V Only
  • 2 Year Warranty
  • 150mm x 50mm x 23mm


Download Data Sheet

Fitting Instructions

1/ Drill a 13mm hole for the wire outlet plug.
2/ Remove the protective film from the 3M tape.
3/ Push the cable and plug through the hole.
4/ Line up the lamp and press firmly.
5/ The lamp is held securely with high quality 3M tape.

Wire Colour for Trailer Kit
Red - Stop, Brown - Tail, White - Earth,
Yellow - LHS Indicator, Green - RHS Indicator

Please refer to ADR 13/00 for mounting instructions.

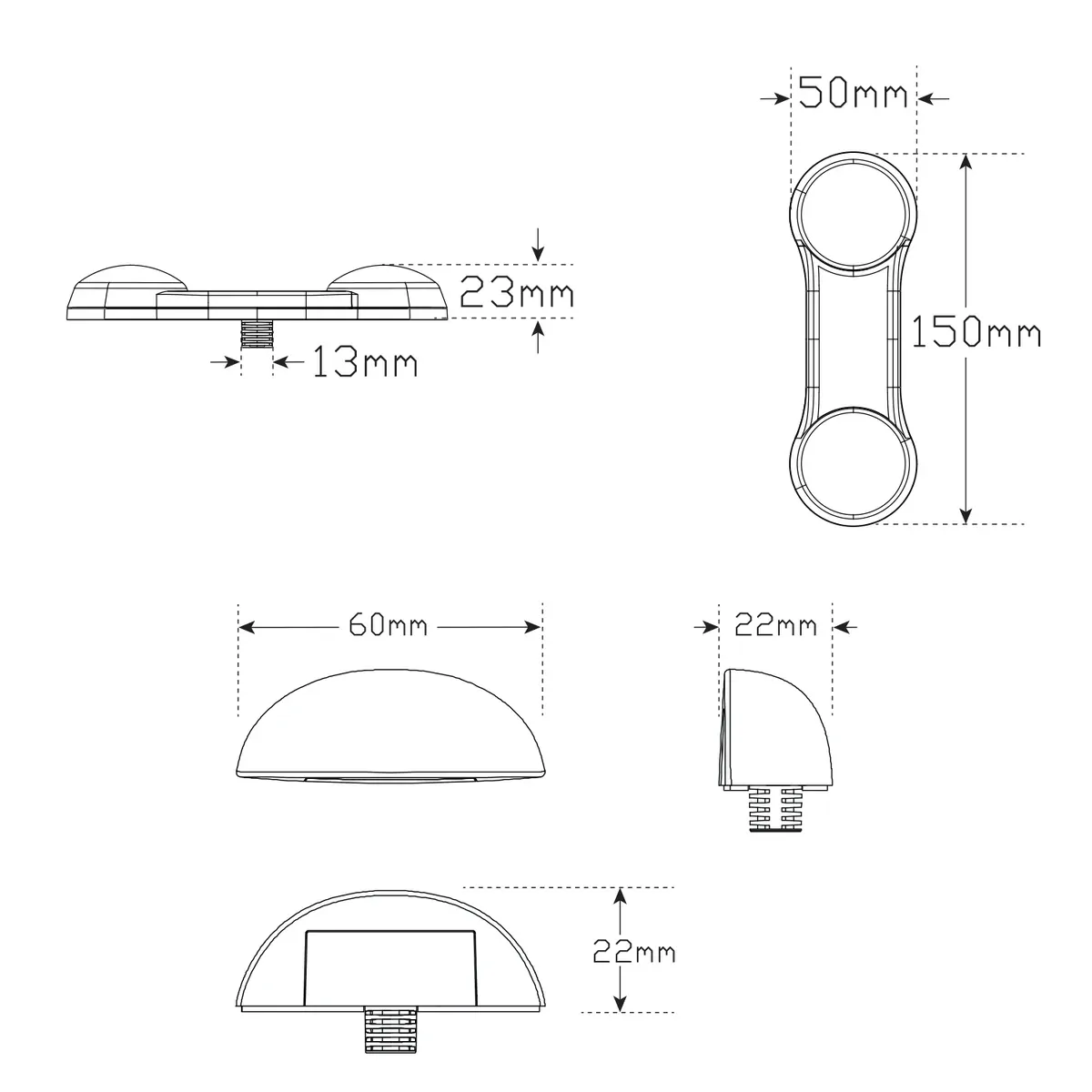

Technical Drawings

More details


SKU DB2LP15M
Barcode # 9335962022779
Brand LED Autolamps
Shipping Weight 0.5320kg
Shipping Width 0.215m
Shipping Height 0.215m
Shipping Length 0.070m
SKU: DB2LP15M

Combination Lamps DB2LP1/5M (Twin Pack)

QOH: 13
QTY: 13
Availability:
In stock
In Stock

Sale price
$90.99
Pay in 4 interest-free payments of $22.75 PayPal Checkout

More info.

Make 4 payments of $22.75 over 8 weeks and get it now!

or interest free for up to 12 months with zipMoney
Make 4 payments of $22.75 over 8 weeks and get it now! Afterpay
Stop/Tail/Ind/Reflector Kit 1X Db1Ar/5M, 1X Db1Arlp/5M, 1X 60Blmcs , Twin Blister, Ece Approved
