Description
407 Series
407 Series
Features / Specifications
|

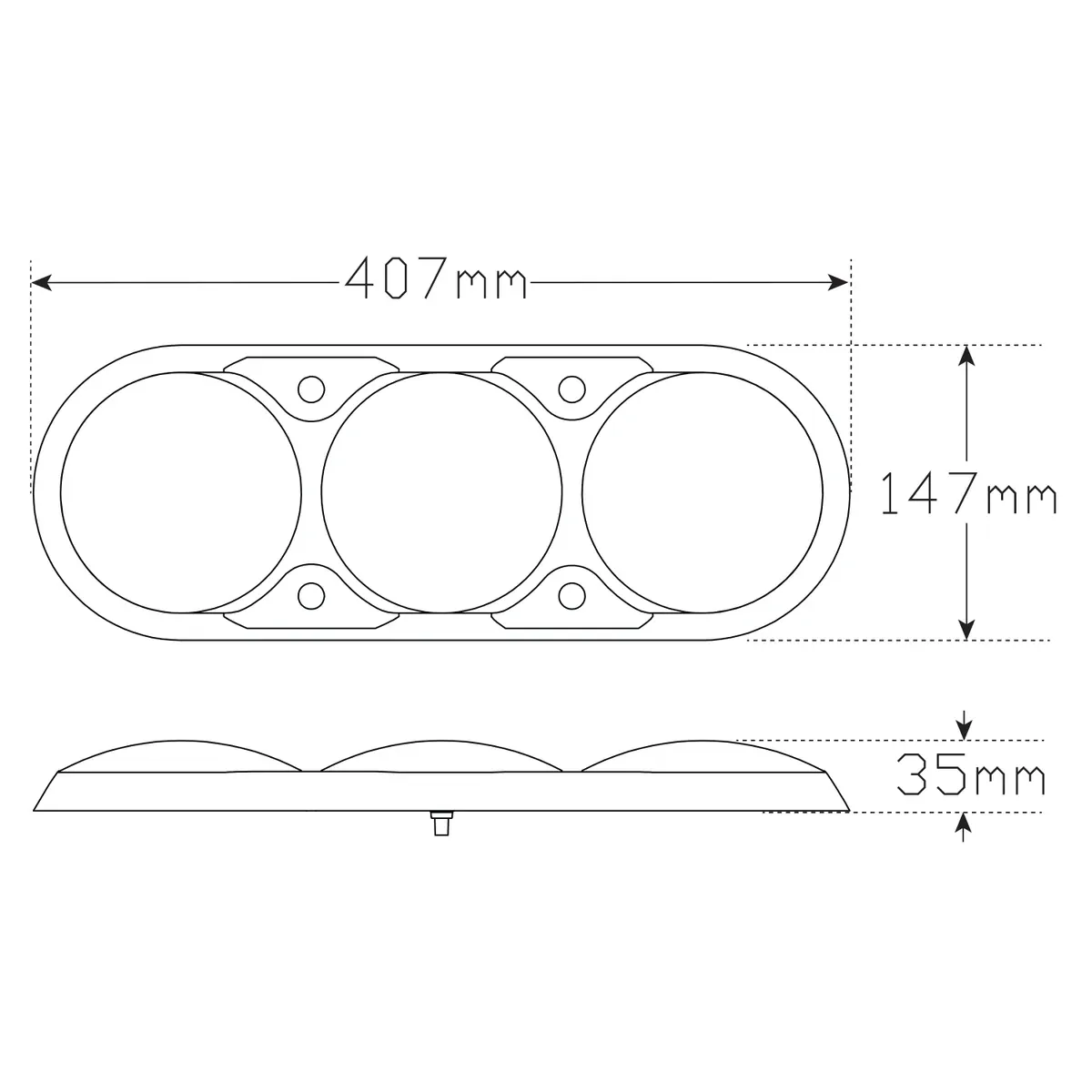

Fitting InstructionsThe screw cap covers need to be removed prior to installation. To remove simply use one of the supplied screws or a small screwdriver to push them out from the rear of the lamp. Once the lamp has been fitted, push the black screw caps back into place. Technical Drawings
|
Features
- Compact 407mm combo rear lamp
- Works with common 12 volt setups
- IP67 sealed LEDs for harsh weather
- Hidden screw caps for clean finish
- ADR approved for legal road use
Specifications
- Series: LED Autolamps 407 Series
- Function: Stop / tail / indicator combination lamp
- Mount type: Surface mount
- Voltage: 12–24 Volt compatible or 12 Volt only variants
- Compliance: ADR Australian Road Approved
- Ingress protection: IP67 rated
- Overall length: 407mm
- Overall height: 147mm
- Overall depth: 35mm
- Warranty: 5 years
- 1 x LED Autolamps 407 Series combination lamp
- 1 x Black surface-mount bracket with clear lens assembly
- Screw cap covers for mounting points
| SKU | 407BARRC |
|---|---|
| Barcode # | 9335962107698 |
| Brand | LED Autolamps |
| Shipping Weight | 0.5120kg |
| Shipping Width | 0.060m |
| Shipping Height | 0.410m |
| Shipping Length | 0.150m |
Combination Lamps 407BARRC
SKU: 407BARRC
Sale price
REG $118.90
SALE ENDS
Dispatch in 1-2 weeks
More infoMake 4 payments of $25.12 over 8 weeks and get it now!
Stop/Tail, Indicator, Black Bracket, Clear Lens 12 Volt, White Box
