223 Series

223 Series

Features / Specifications

  • Easy Mounting Design
  • Inbuilt Reflex Reflector
  • ADR Australian Road Approved
  • Voltage Range 12-24 Volt
  • IP67 Rated
  • 5 Year Warranty



Download Data Sheet

Fitting Instructions

The screw covers on the left and right side of the lamp have been supplied not clipped-in for ease of installation. Once the lamps have been mounted using the screws provided, simply clip the covers in place. Important Note: If the screw covers ever need to be removed after installation,  locate the cover slots as marked on the drawing below, carefully insert only the tip of a standard 5mm flat screw driver into a slot, and lever slightly with the screw driver to release the cover from the lamp.

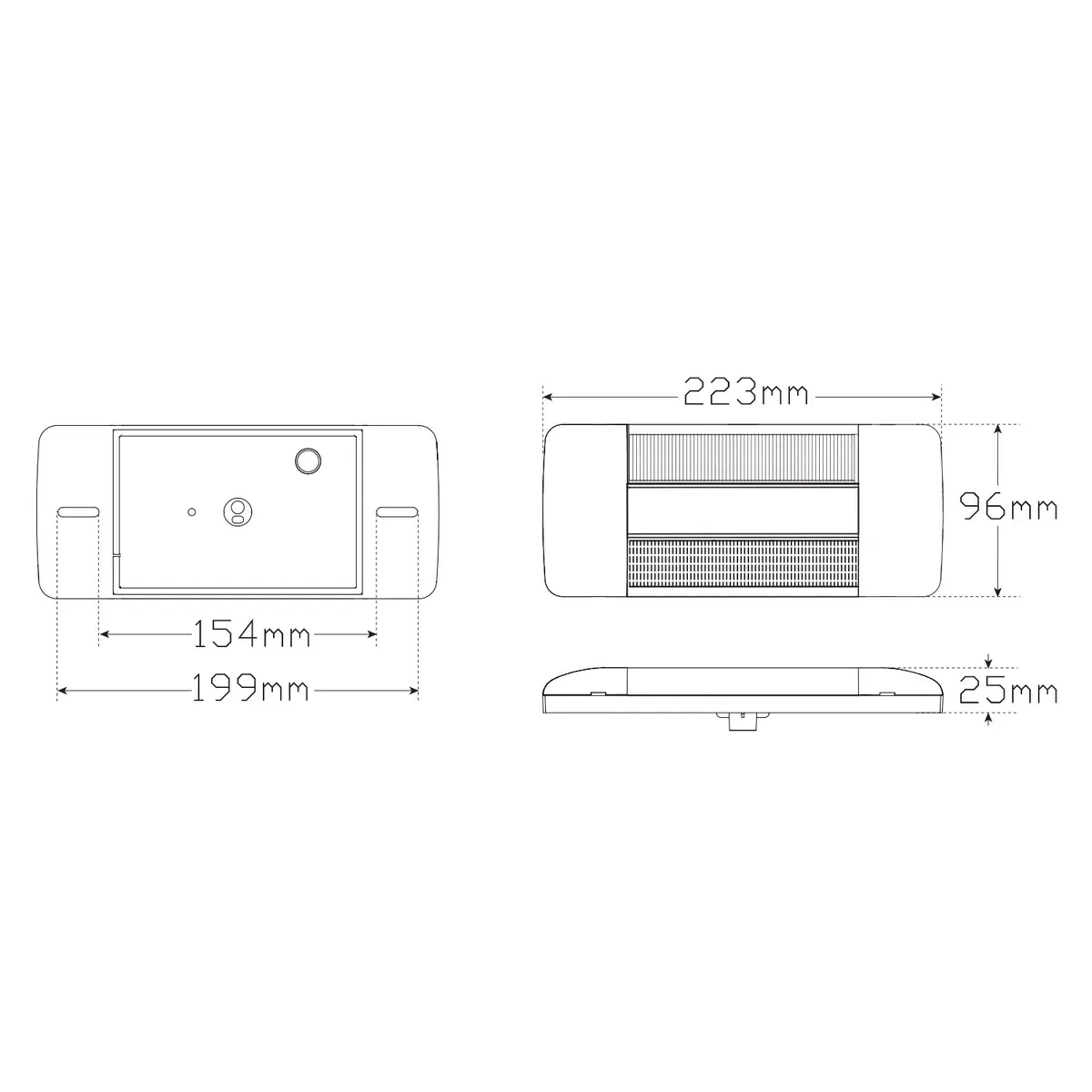

Technical Drawings

More details


SKU 223BARM2
Barcode # 9335962028764
Brand LED Autolamps
Shipping Weight 0.5000kg
Shipping Width 0.250m
Shipping Height 0.250m
Shipping Length 0.050m
SKU: 223BARM2

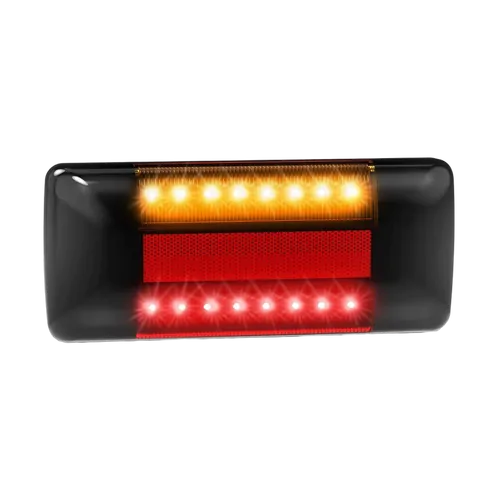

Combination Lamps 223BARM2

QOH: 0
QTY: 999
Sale price
$115.99

Don't Pay RRP:$132.12

Earn 1,150 Outback Rewards Points

Sale price
$115.99

Don't Pay RRP:$132.12

Pay in 4 interest-free payments of $29.00 PayPal Checkout

afterpay More info.

Make 4 payments of $29.00 over 8 weeks and get it now!

or interest free for up to 12 months with zipMoney
Make 4 payments of $29.00 over 8 weeks and get it now! Afterpay

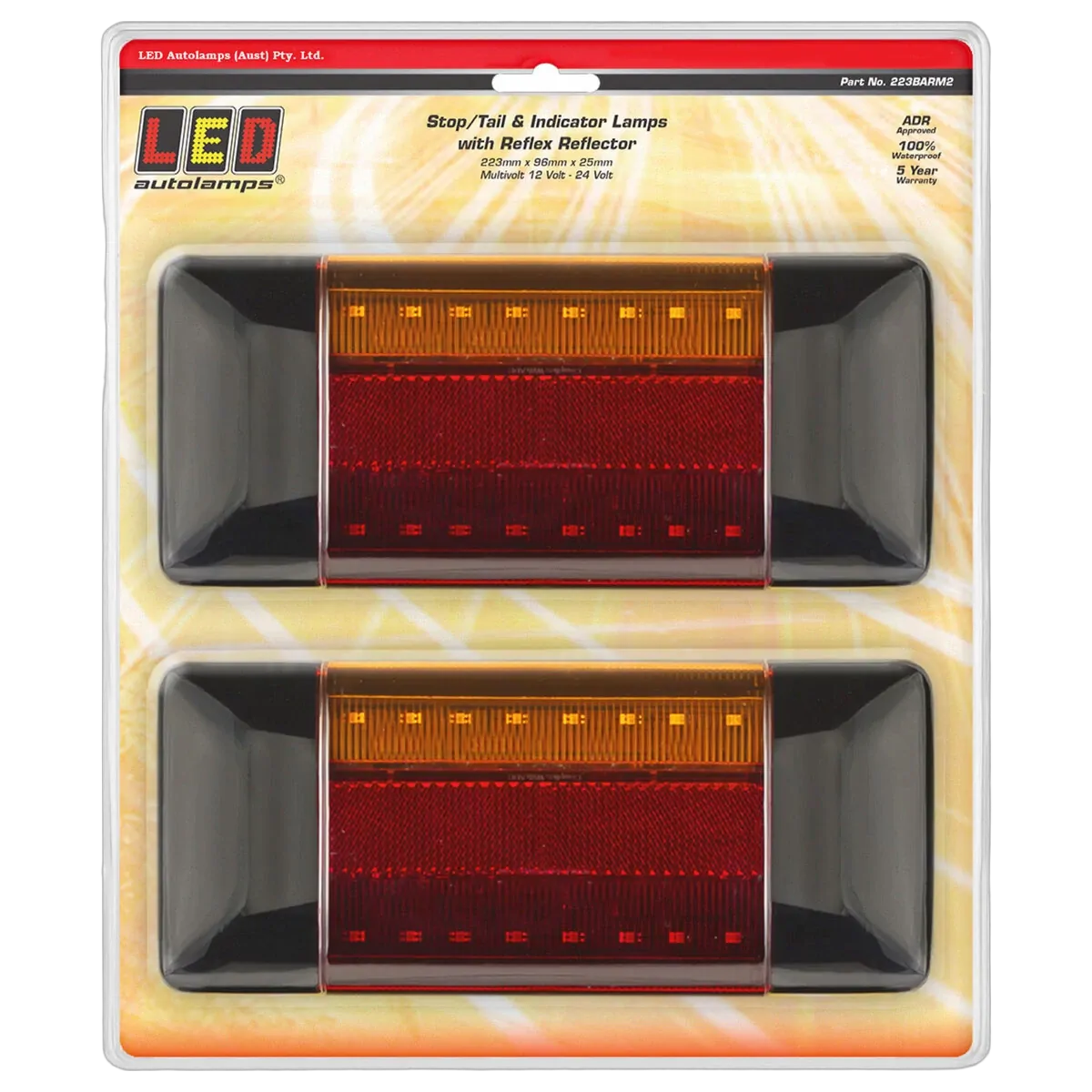

Stop/Tail/Indicator With Reflex Reflector And Black Caps, 12-24 Volt, Twin Blister Pack
