Description

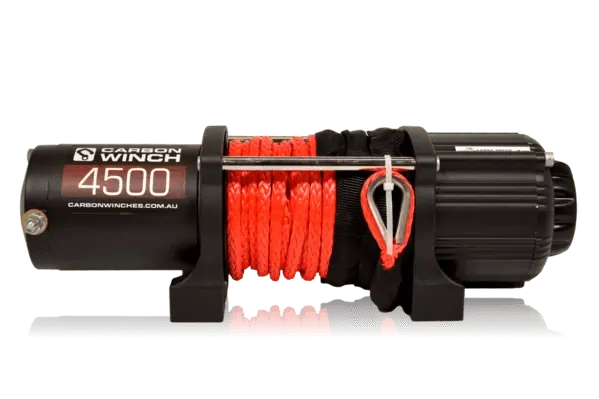

The Carbon Offroad 4,500 lb Capacity ATV/UTV winch for big ATV, UTV and sides x sides, and car trailers. This winch has been upgraded and all stock from September 2021 onward have been re-designed to include better clutch handle operation, seals allowing use in wet conditions, better quality finish and components all for the same price.
A small compact winch with integrated mounting plate makes mounting this winch as simple as it can get to an exisitng pedestal on a trailer, or into a winch location on an ATV or Buggy.
With wireless remote control included free and a handlebar rocker switch control option, it's a very versatile winch setup.
Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinnys and open cattle gates on Livestock Truck Trailers.
A great small all rounder winch to make work easier or to get your buggy out of the bog.
FEATURES
4,500 lb (2,040 kg ) line pull
Power in and power out
Winch drum centred avoids the interference of rope and provides streamlined appearance.
Mechanical load holding and dynamic brake for 100% braking.
High efficiency, low amp draw and sealed permanent magnet motor
Full metal 3 stage planetary gear train for greater pulling force
Sliding pin and ring gear clutch for rapid wire rope payout
Synthetic rope
SPECIFICATION / PART NUMBERS CW-45
Part number: CW-4.5
Rated line pull: 4,500 lbs, (2040kg) single-line
Motor: 12V DC 1.9HP motor
Remote Control: Handlebar Mini-Rocker
Wireless Remote Control: included
Geartrain: 3-Stage Planetary.
Gear Ratio: 176:1
Clutch (freespooling): Split Ring Gear
Brake: Dynamic and mechanical braking
Drum Diameter/Length: 2.5’’/4.4’’ (60.5mm/112mm)
Synthetic Rope: 43’, 1/4’’ diameter ( 13m, 6.35 diameter)
Fairlead: Aluminium Hawse
Mounting Bolt Pattern: 3.0’’ x 6.59’’ ( 76mm x 167mm )
Winch Dimensions ( L x W x H ): 14.9'' x 4.7'' x 4.5'' (379x 120 x 115mm )
Packing Dimensions( L x W x H ): 19.7x 10.6'' x 6.3'' ( 500 x 270 x 160mm )
Shipping Weight: 12.2kg
12V DC PERFORMANCE SPECS (first layer of drum)
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 20.4(6.2) | 31 Amps | 1/4500(2040) |
| 1000 | 14.2(4.3) | 65Amps | 2/3750(1700) |
| 2000 | 10.9(3.3) | 96Amps | 3/3510(1595) |
| 3000 | 7.7(2.4) | 125Amps | 4/3300(1500) |
| 4500 | 4.9(1.5) | 175.Amps | |
Warranty
Please see link below for detailed warranty information on all Carbon Winches.
https://www.carbonoffroad.com.au/warranty/
Carbon Winches Warranty - 12000lb and 9500lb winches only.
Summary
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
Warranty for 4500lb and 17000lb winches
Summary
- 5 Year Mechanical Warranty
- 5 Year Electrical Warranty
Specifications
| SKU | CW-45 |
|---|---|
| Barcode # | OEBC0000056 |
| Brand | Carbon Offroad |
| Shipping Weight | 12.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.180m |
| Shipping Length | 0.300m |

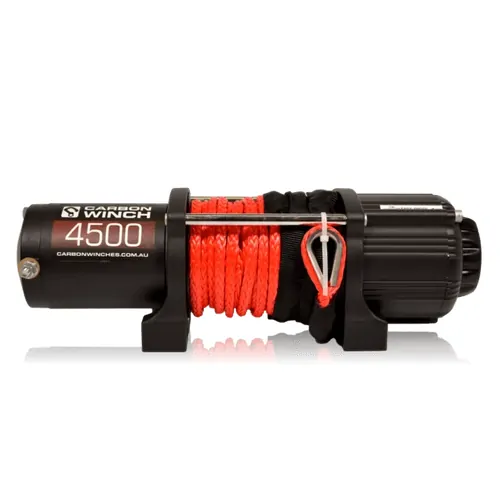

Carbon Winch 4500Lb Atv Trailer With Synthetic Rope And Wireless Control - Fully Sealed.
