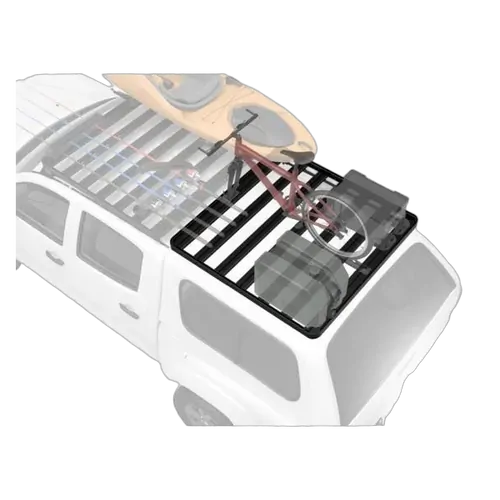

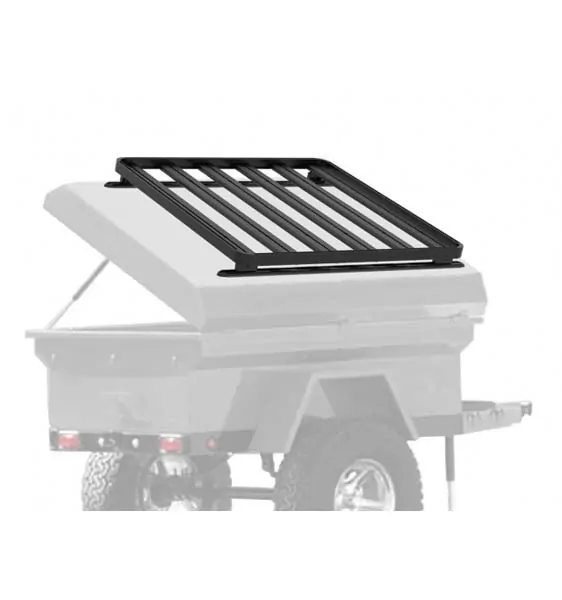

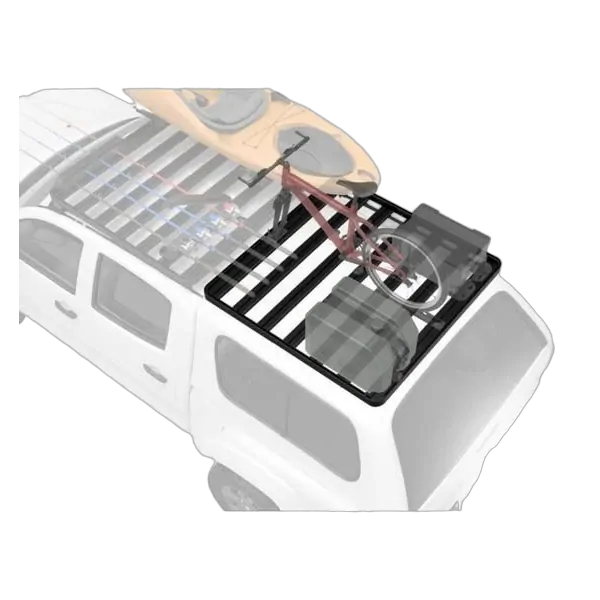

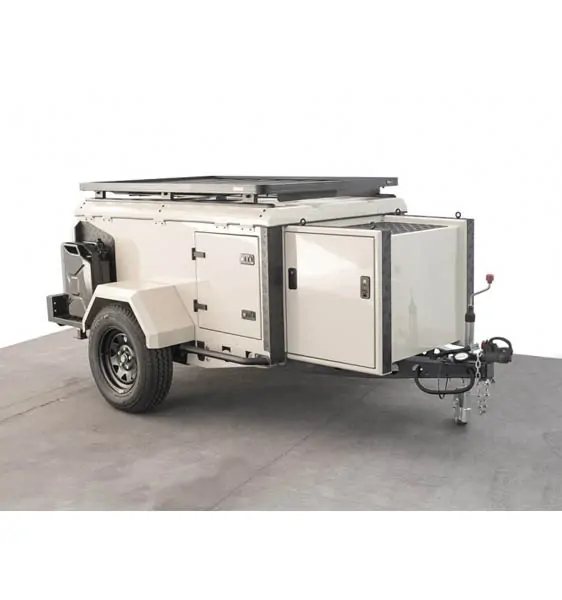

These kits include the rack tray, wind deflector, track and feet - everything you need to mount a Slimline II Rack to truck canopies/camper shells/caps and trailers. The Slimline II Tray mounts to supplied Feet that slide into the supplied Track. The Track can be easily mounted to your canopy/shell or trailer with the supplied fasteners. If you currently have track in your canopy or trailer, we recommend replacing it with the stronger, integrated Front Runner track.
See the Track installation instructions in the INSTALL tab for further details.
Please Note: Taller kits have space for mounting the Front Runner tables or other compatible accessories UNDERNEATH the rack.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

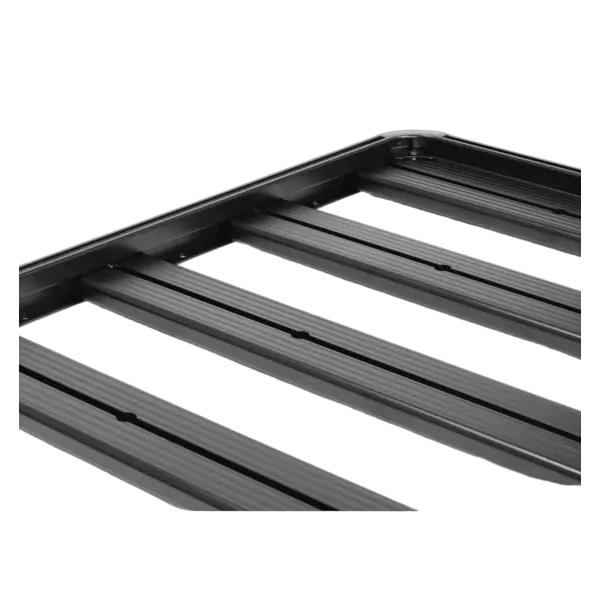

KRCA054T - Truck Canopy or Trailer Slimline II Rack Kit / 1425mm(W) x 1156mm(L)

Consisting of:

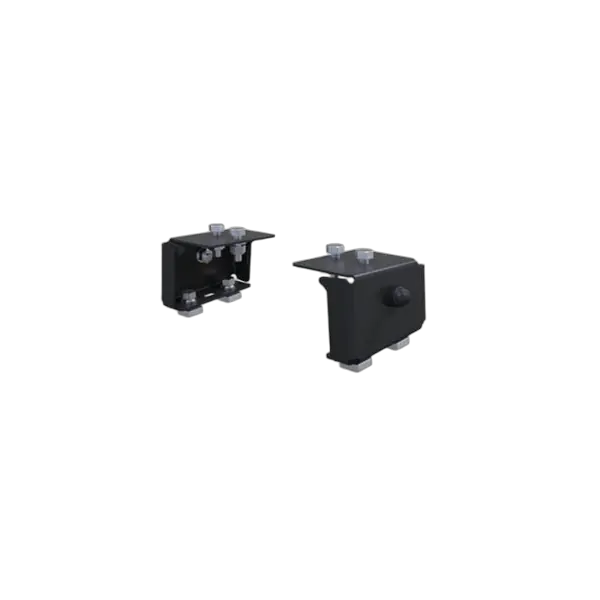

2 x FASS002 - Foot Set / 50mm - by Front Runner
2 x RRAC021 - Between Slat Foot Adapter - by Front Runner

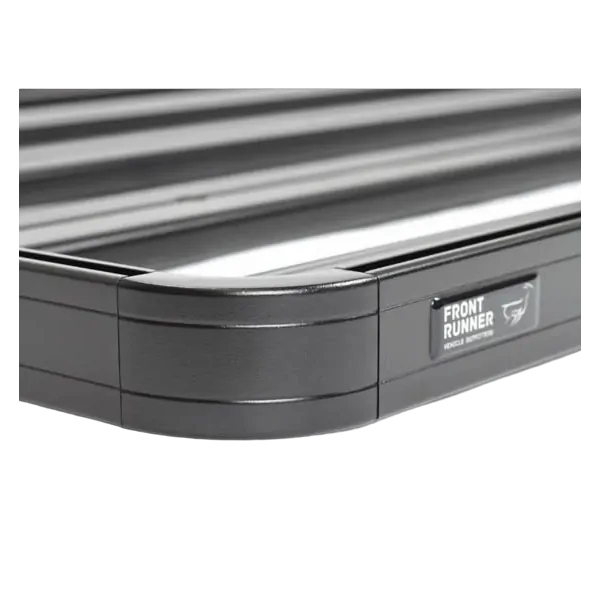

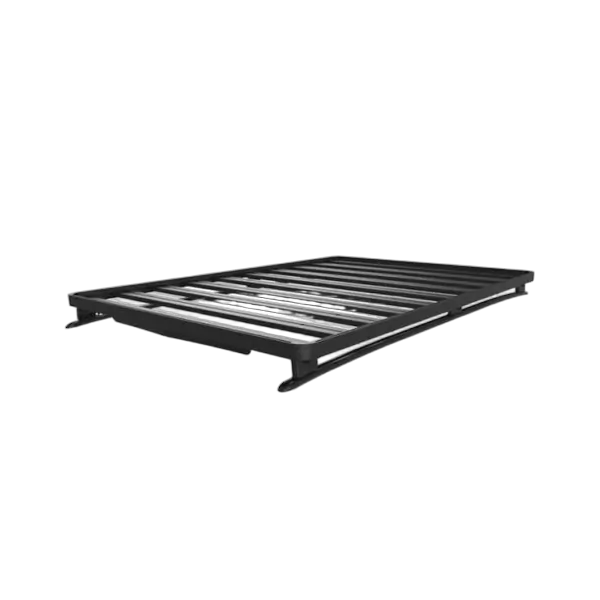

1 x RRSTJ06 - Slimline II Tray - 1425mm(W) x 1156mm(L) - by Front Runner
1 x TRCA003 - Canopy Tracks / 1150mm(L) - by Front Runner

Material used:
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel

Approximate Installed Weight 24kg (52lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width 1425mm (56")
Length 1156mm (46")
Height 50mm (2")

Shipping Weight:
Weight 27.5kg (60.5lbs)
