Features

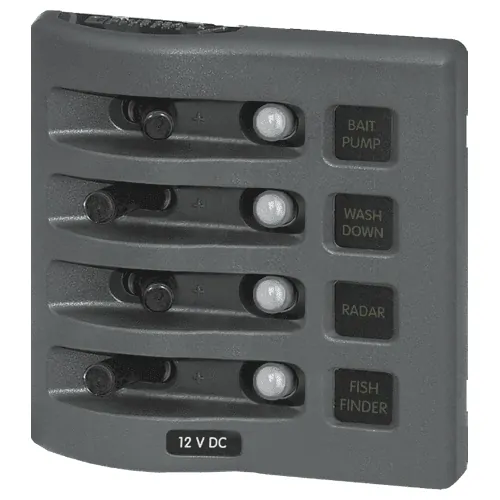

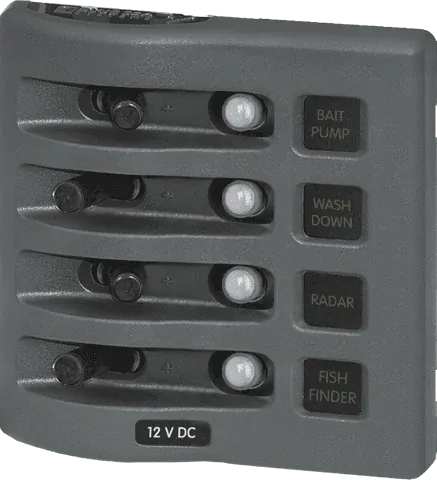

WeatherDeck® 12V DC Waterproof Circuit Breaker Panel – Gray 4 Positions

  • Rated IP67-temporary immersion for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label backlighting allows switching and dimming
  • Compatible with all Blue Sea Systems Digital Dimmers
  • Available in 4 and 6 circuit models
  • Each panel can be mounted in four different orientations
  • Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications

WeatherDeck® 12V DC Waterproof Circuit Breaker Panel – Gray 4 Positions
WeatherproofWaterproof
Positions4
Nominal Voltage12V DC 24V DC
Circuit ProtectionCircuit Breaker
Maximum15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit)
Panel Cumulative Rating45A
Backlit LabelGreen LED
Backlighting Amperage10mA /Illuminated Circuit
Backlighting Voltage12 or 24V DC
MaterialReinforced Polycarbonate
Height4.30in (109.22 mm)
Width4.25in (107.95 mm)
Depth3.50in (88.9 mm)
Weight0.44 kg
SKU BS-4374
Barcode # OEBC527557
Brand Blue Sea Systems
Shipping Weight 0.4400kg
SKU: BS-4374

Blue Sea Systems Weatherdeck 12V Dc Waterproof Circuit Breaker Panel - Gray 4 Positions

QOH: 0
QTY: 0
Availability:
Sold Out
Sale price
$214.99

Don't Pay RRP:$225.00

Earn 2,140 Outback Rewards Points

Sale price
$214.99

Don't Pay RRP:$225.00

Pay in 4 interest-free payments of $53.75 PayPal Checkout

More info.

Make 4 payments of $53.75 over 8 weeks and get it now!

or interest free for up to 12 months with zipMoney
Make 4 payments of $53.75 over 8 weeks and get it now! Afterpay
