Features

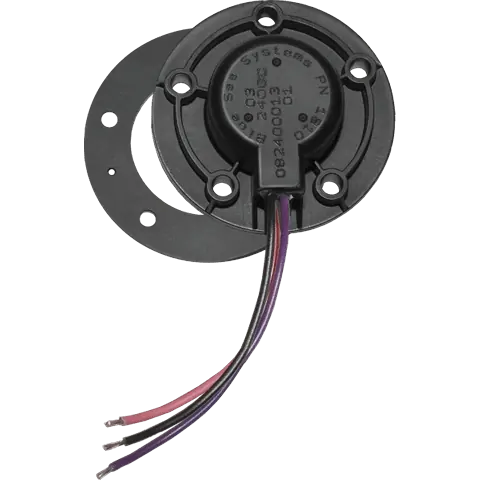

Vessel Systems Monitor Tank Sender – Petrol Only

• Accurate – used with the Vessel Systems Monitor VSM 422 PN 1800—can be precisely calibrated for each tank*
• Reliable – SSI Technologies, Inc. Fluid-Trac® is non-contacting eliminating any mechanical moving parts that can wear and cause intermittent or complete signal loss
• Digital filtering – Eliminates errors due to liquids sloshing in mobile tanks

Limitations and considerations for mounting the ultrasonic tank senders:

• Senders are calibrated to the VSM 422 and will not function with other monitors
• Senders must be mounted 4″ or greater distance from a tank side or baffle
• Tank floor must not be sloped
• Tanks must not be deeper than 24″
• Sender must be mounted perpendicular to the surface of the liquid
• The sender negative connection should be connected as directly as possible to the main negative bus.
