Description
Eliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads
- Perfect for passing high current cables through hulls, decks and bulkheads
- Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
- Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
- Rated IP66 — withstands water from heavy seas
Specifications | |
---|---|
Amperage | 250A |
Color | Black |
Maximum Voltage | 48V DC |
Stud Size | 3/8"-16 |
Base Material | Reinforced Thermoplastic |
Recommended Torque | 100 in-lb (11.3 N·m) |
Stud Material | Tin-Plated Copper Alloy |
Weight | 0.30lb (0.14 kg) |
Specifications
SKU | BS-2204 |
---|---|
Barcode # | OEBC527445 |
Brand | Blue Sea Systems |
Shipping Weight | 0.0600kg |

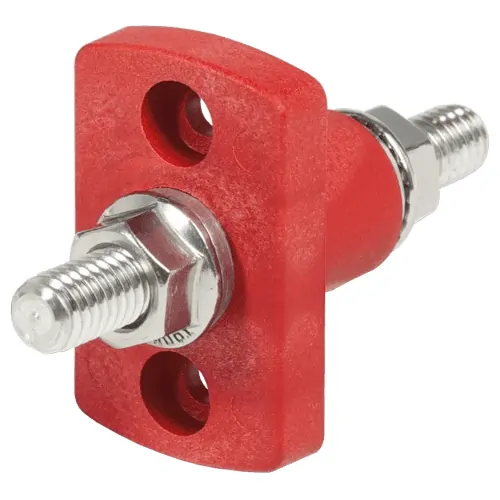

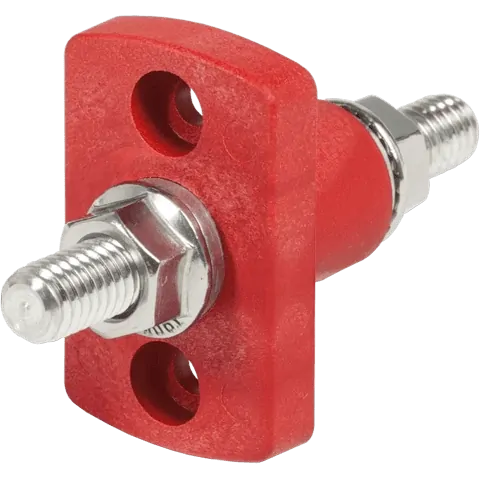

Blue Sea Systems Terminal Feed Through 3/8-16 Stud Red
