Description
- Weatherproof
- Can be used as Main, Branch, or 24 hour circuit protection
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- “Trip Free” design cannot be held “ON” during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts
Specifications
| Medium Duty Push Button Reset Only Circuit Breaker | |
|---|---|
| Maximum Voltage | 120V AC 32V DC |
| Terminal Stud Torque | 30 in-lb (3.39 Nm) |
| Circuit Breaker Type | Thermal trip, manual push-button reset only |
| Terminal Stud | #10-32 Stainless Steel |
| Interrupt Capacity | 3000A @ 120V AC 5000A @ 32V DC |
| Minimum Operating Temp | -54° C |
| Maximum Operating Temp | 74° C |
| Mounting Screw Thread | #8-32 |
| Weight | 0.04 kg |
Specifications
| SKU | BS-2140 |
|---|---|
| Barcode # | OEBC527562 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.4500kg |

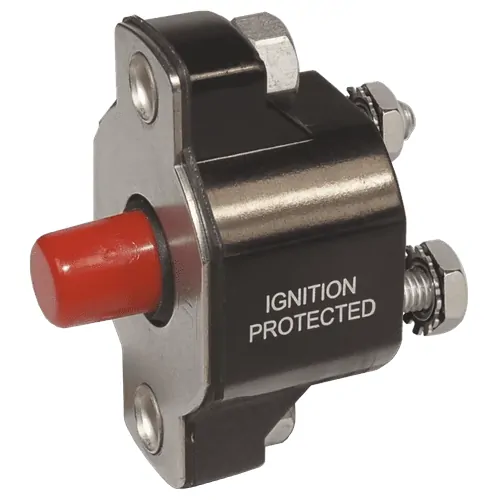

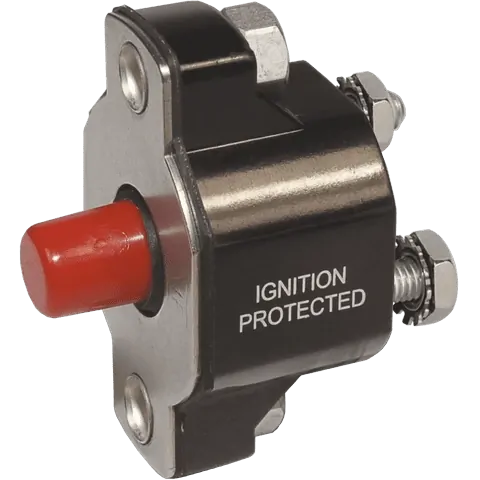

Blue Sea Systems Medium Duty Push Button Reset Only Circuit Breaker 30A
SKU: BS-2140
In stock
Sale price
REG $84.00
SALE ENDS
In Stock — Ships in 1 to 3 Days
More infoMake 4 payments of $19.25 over 8 weeks and get it now!
Calculate Shipping
