1%OffRRP

Features

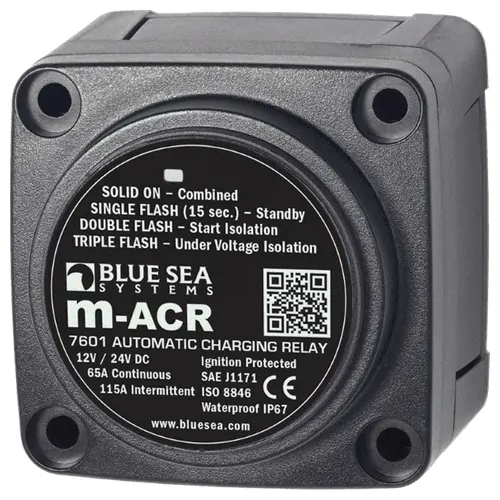

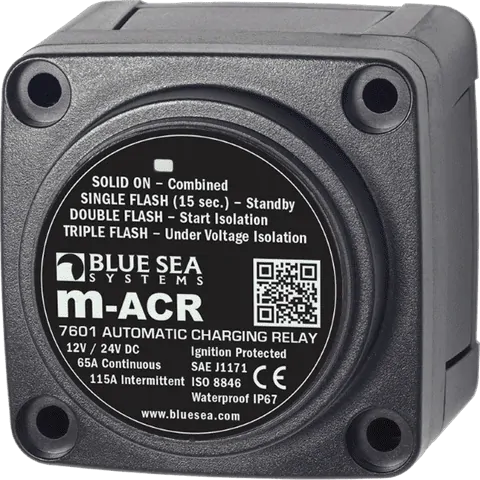

m-Series Automatic Charging Relay – 12/24V DC 65A

  • Senses charging on two battery banks
  • Pull off and snap on insulating cover
  • LED indicates ACR status
  • 1 ∕4″ x .032″ male quick connect terminal for ground



Specifications

m-Series Automatic Charging Relay – 12/24V DC 65A
Nominal Voltage12V DC
24V DC
Start IsolationYes
Amperage Operating Current90mA (Combine)
15mA (Open)
Terminal Stud Torque60 in-lb (6.78 Nm)
Continuous Rating65A
Intermittent Rating115A (5 min)
Cable Size to Meet Ratings6 AWG
Maximum Cable Size1/0 AWG
Terminal Stud Size1/4″ – 20 (M6)
Relay Contact Position
Combine 30 sec13.6V DC
Open 10 sec12.35V DC
Open 30 sec12.75V DC
Open High16.0V
Under Voltage Lockout9.5V
Weight0.43 kg
SKU BS-7601
Barcode # OEBC527435
Brand Blue Sea Systems
Shipping Weight 0.8000kg
SKU: BS-7601

Blue Sea Systems M-Series Automatic Charging Relay - 12/24V Dc 65A

QOH: 0
QTY: 0
Availability:
Sold Out
Sale price
$145.99

Don't Pay RRP:$147.00

Earn 1,450 Outback Rewards Points

Sale price
$145.99

Don't Pay RRP:$147.00

Pay in 4 interest-free payments of $36.50 PayPal Checkout

afterpay More info.

Make 4 payments of $36.50 over 8 weeks and get it now!

or interest free for up to 12 months with zipMoney
Make 4 payments of $36.50 over 8 weeks and get it now! Afterpay
