Busbars are used to consolidate multiple wires or feed multiple circuits

  • Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
  • Raised bus provides easy access to multiple wires on a single stud
  • UL 94-V0 rated base material resists high heat
  • Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
Specifications
Maximum Voltage 300V AC
48V DC
Number of Terminal Studs 6
Terminal Type 5/16"-18 Stud
Continuous Rating  250A
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Recommended Stud Torque 132 in-lb (14.91 N·m)
Weight 1.00lb (0.45 kg)
Weight 0.80lb (0.36 kg)
SKU BS-2126
Barcode # OEBC527471
Brand Blue Sea Systems
Shipping Weight 0.0500kg
SKU: BS-2126

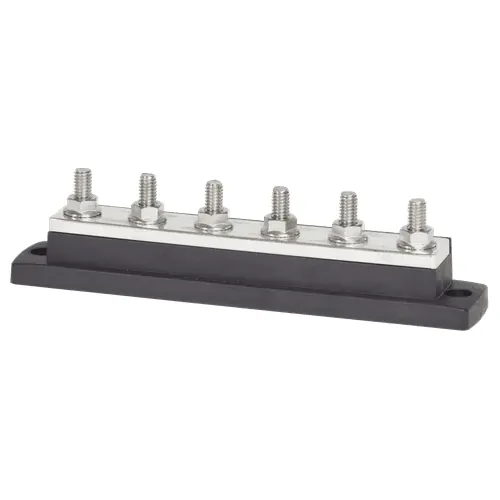

Blue Sea Systems Busbar 250A 6 Terminal 5/16
