Features

Cover included
Accepts 5/16″ (M8) ring terminals
For use on systems up to 32 Volts DC
Swing out design allows replacement of the fuse without removing fasteners
Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
UL 94-V0 base resists high heat
Insert molded studs ensure secure fuse mounting
Insulating cover satisfies ABYC/USCG requirements
Cover breakouts allow wire access in any direction
Fuse sold separately

Specifications

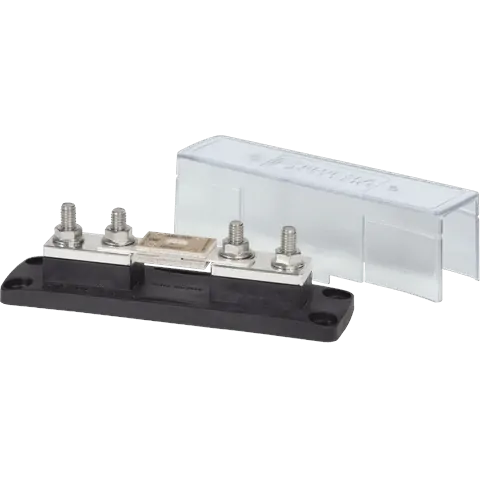

ANL Fuse Block with Insulating Cover – 35 to 750A
Maximum Voltage	32V DC
Base Material	Reinforced Polycarbonate
Fuse Mounting Blocks	Tin-Plated Copper
Maximum Cable Size	4/0 AWG
Maximum Torque	170 in-lb (12.09 Nm)
Terminal Stud Size	5/16″ – 18 (M8)
Weight	0.48 kg

Note: Specifications subject to change without notice.

SKU: BS-5503

$94.99 MATES’ RATE

Unlock Mates'Rate and Save. Login or Join Free

SAVE $4.01

REG $99.00

NSW, QLD & VIC Order Express by 17th Dec for Christmas delivery. T&Cs apply.

Ships in 7 days

$99.00 REG

$94.99 MATES’ RATE

Cover included
Accepts 5/16″ (M8) ring terminals
For use on systems up to 32 Volts DC
Swing out design allows replacement of the fuse without removing fasteners
Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
UL 94-V0 base resists high heat
Insert molded studs ensure secure fuse mounting
Insulating cover satisfies ABYC/USCG requirements
Cover breakouts allow wire access in any direction
Fuse sold separately

ANL Fuse Block with Insulating Cover – 35 to 750A
Maximum Voltage	32V DC
Base Material	Reinforced Polycarbonate
Fuse Mounting Blocks	Tin-Plated Copper
Maximum Cable Size	4/0 AWG
Maximum Torque	170 in-lb (12.09 Nm)
Terminal Stud Size	5/16″ – 18 (M8)
Weight	0.48 kg
