Description
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
Specifications | |
---|---|
Circuits | 4 |
Length | 3.89in (98.81 mm) |
Maximum Voltage | 600V AC/DC |
Continuous Rating | 65A |
Base Material | UL 94 V0, PC |
Bus Material | Nickel-Plated Brass |
Mounting Screw | #10 [M5] |
Screw Material | Stainless Steel |
Screw Size | #10-32 |
Screw Terminal Torque | 17.5 in-lb (1.98 Nm) |
Terminal Screws | M5 |
Wire Terminal Size | #10 [M5] |
Weight | 0.27lb (0.12 kg) |
Specifications
SKU | BS-2604 |
---|---|
Barcode # | OEBC527458 |
Brand | Blue Sea Systems |
Shipping Weight | 0.1000kg |

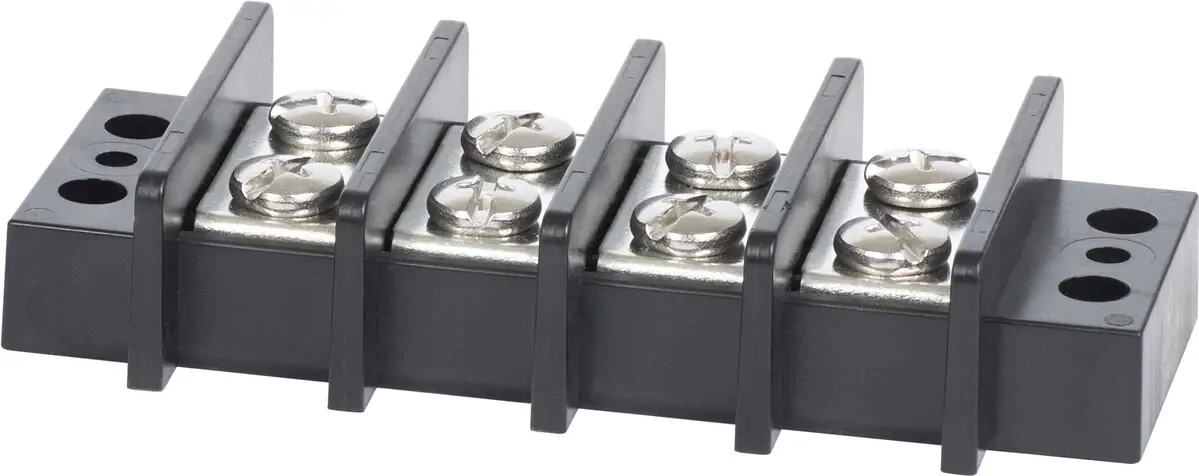

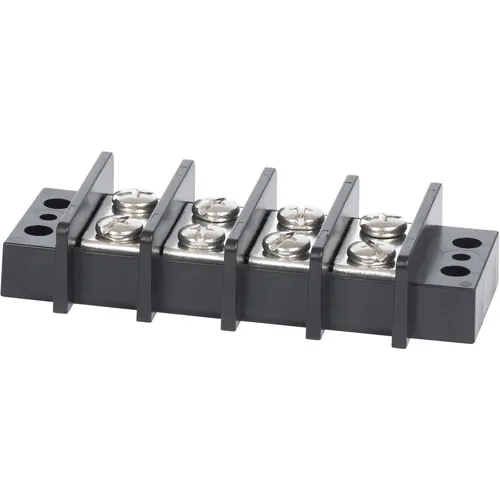

Blue Sea Systems 65A Terminal Block 4 Circuit
