Description
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
Specifications | |
---|---|
Circuits | 10 |
Length | 8.01in (203.45 mm) |
Maximum Voltage | 600V AC/DC |
Continuous Rating | 65A |
Base Material | UL 94 V0, PC |
Bus Material | Nickel-Plated Brass |
Mounting Screw | #10 [M5] |
Screw Material | Stainless Steel |
Screw Size | #10-32 |
Screw Terminal Torque | 19 in-lb (2.15 Nm) |
Terminal Screws | M5 |
Wire Terminal Size | #10 [M5] |
Weight | 0.52lb (0.24 kg) |
Weight | 0.52lb (0.24 kg) |
Specifications
SKU | BS-2610 |
---|---|
Barcode # | OEBC527461 |
Brand | Blue Sea Systems |
Shipping Weight | 13.0000kg |

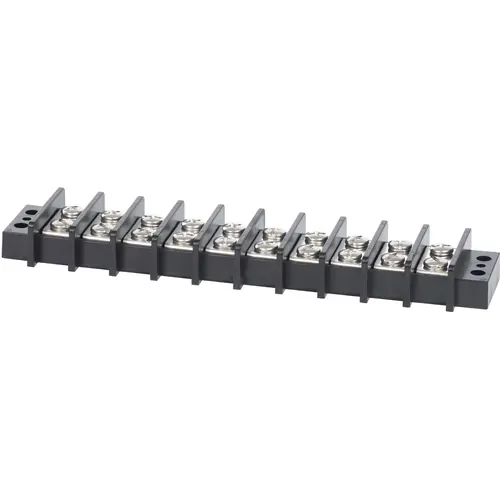

Blue Sea Systems 65A Terminal Block 10 Circuit
