Description
Features
DURABLE
Molded panel frame will stand up to UV and salt air
EASY
Low profile makes it easy to install in tight spaces
SIMPLE
Fast-on circuit breaker connectors make it quick to wire
CONVENIENT
Red “ON” indicating LEDs for safe operation in low light conditions
- 4 Carling Technologies™ 15A circuit breakers
- Illuminated ON indication
- Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
- Quick connect BUS eliminates wire harness and clutter contributing to a low profile panel
- Two-wire connection for powering all panels is simple and requires #5 ring terminals. Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
- Stainless steel #6 x 5/8″ mounting screws included
Specifications
| 4 Position, BelowDeck Circuit Breaker Panel | |
|---|---|
| Positions | 4 |
| Nominal Voltage | 12V DC |
| Maximum Voltage | 45A |
| Terminal Type | 1/4″ Male Quick Connect |
| Hardware | Stainless Steel #6 X 5/8″ mounting screws |
| Ring Terminal Size | M5 (#10) |
| Height | 144.78mm |
| Width | 107.95mm |
| Depth | 44.45mm |
Note: Specifications subject to change without notice.
Specifications
| SKU | BS-4350 |
|---|---|
| Barcode # | OEBC527554 |
| Brand | Blue Sea Systems |
| Shipping Weight | 1.0000kg |
SKU: BS-4350

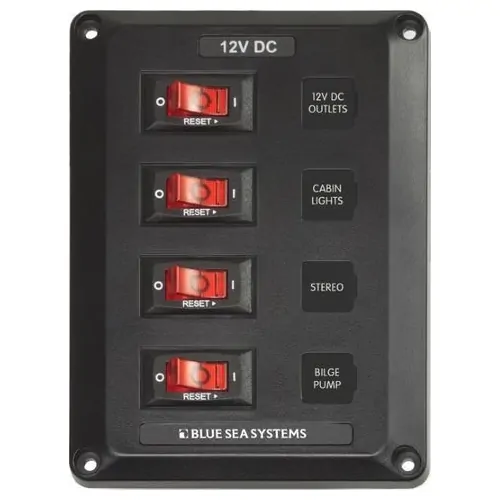

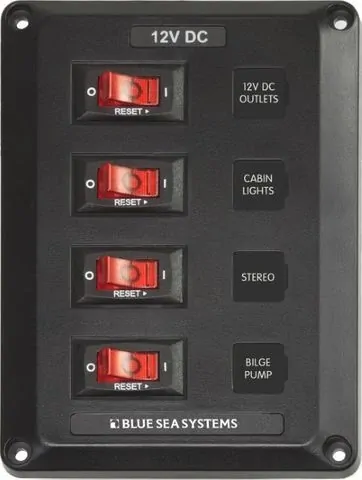

Blue Sea Systems 4 Position, Belowdeck Circuit Breaker Panel
