• Closed back design completely insulates power from the mounting surface
  • Each screw pair is one isolated circuit
  • Jumpers allow creation of common circuits
Specifications
Circuits 4
Length 2.17in (55.12 mm)
Maximum Voltage 300V AC/DC
Continuous Rating  20A
Base Material UL 94 V0, PC
Bus Material Nickel-Plated Brass
Mounting Screw #6 [M3.5]
Screw Material Stainless Steel
Screw Terminal Torque 7 in-lb (0.79 Nm)
Terminal Screws M3.5
Wire Terminal Size #6 [M3]
Weight 0.06lb (0.03 kg)
Weight 0.07lb (0.03 kg)
SKU BS-2404
Barcode # OEBC527447
Brand Blue Sea Systems
Shipping Weight 0.0800kg

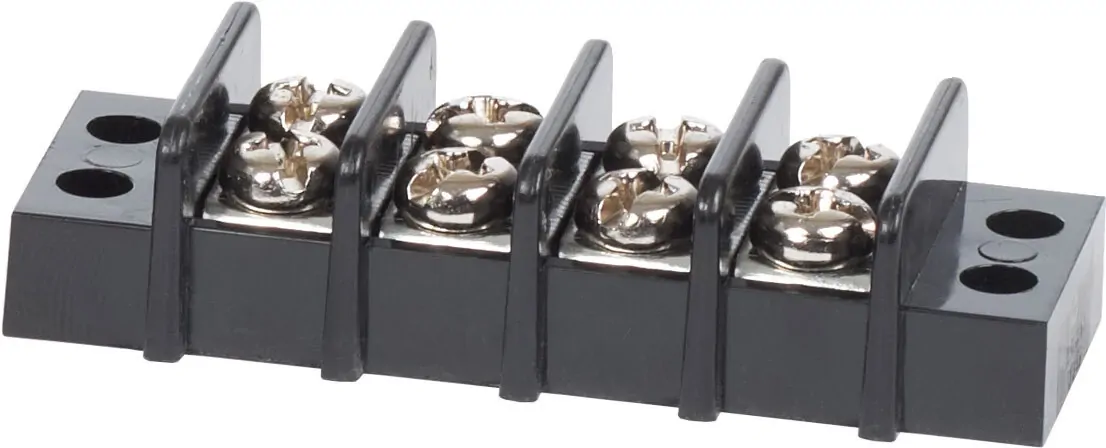

Blue Sea Systems 20A Terminal Block 4 Circuit

SKU: BS-2404
Sale price
$9.00
Earn 90 GEAR'd Points
Ships in 7 days (Christmas delays possible)
Sale price
$9.00
PayPal Checkout
4 payments of $2.25

afterpay More info.

Make 4 payments of $2.25 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $2.25
Humm

Calculate Shipping

  • Closed back design completely insulates power from the mounting surface
  • Each screw pair is one isolated circuit
  • Jumpers allow creation of common circuits
Specifications
Circuits 4
Length 2.17in (55.12 mm)
Maximum Voltage 300V AC/DC
Continuous Rating  20A
Base Material UL 94 V0, PC
Bus Material Nickel-Plated Brass
Mounting Screw #6 [M3.5]
Screw Material Stainless Steel
Screw Terminal Torque 7 in-lb (0.79 Nm)
Terminal Screws M3.5
Wire Terminal Size #6 [M3]
Weight 0.06lb (0.03 kg)
Weight 0.07lb (0.03 kg)
SKU BS-2404
Barcode # OEBC527447
Brand Blue Sea Systems
Shipping Weight 0.0800kg
