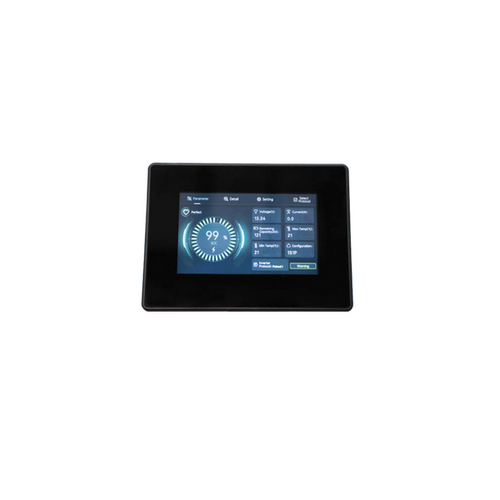

The X Series Battery Monitor Display gives real-time readings from BLA Marine Performance X Series
Batteries and includes visual and audible alarms for immediate issue detection. Stay updated and
proactive with accurate battery status monitoring.

Features:
• Visible and Audible Warnings and Alarms
• Clear 5” Display for accurate battery monitoring
• State of Charge, Voltage, Current, Remaining Capacity clearly displayed

Specifications:
• Rated input voltage 9 - 60V
• Rated Power <5W
• Operating Current Maximum 170mA (VCC=12V)
• Operating Current Minimum 55mA (VCC=12V)
• Resolution 800*480
• Operating Humidity 10% - 90%RH
• Protective Level IP65 (Front)
• Communication RS485
• Operating Temperature -20~70°C
• Storage Temperature -30~80°C
• Net Weight 340g
• Type LCD
• Screen Size 5 Inch
