Description

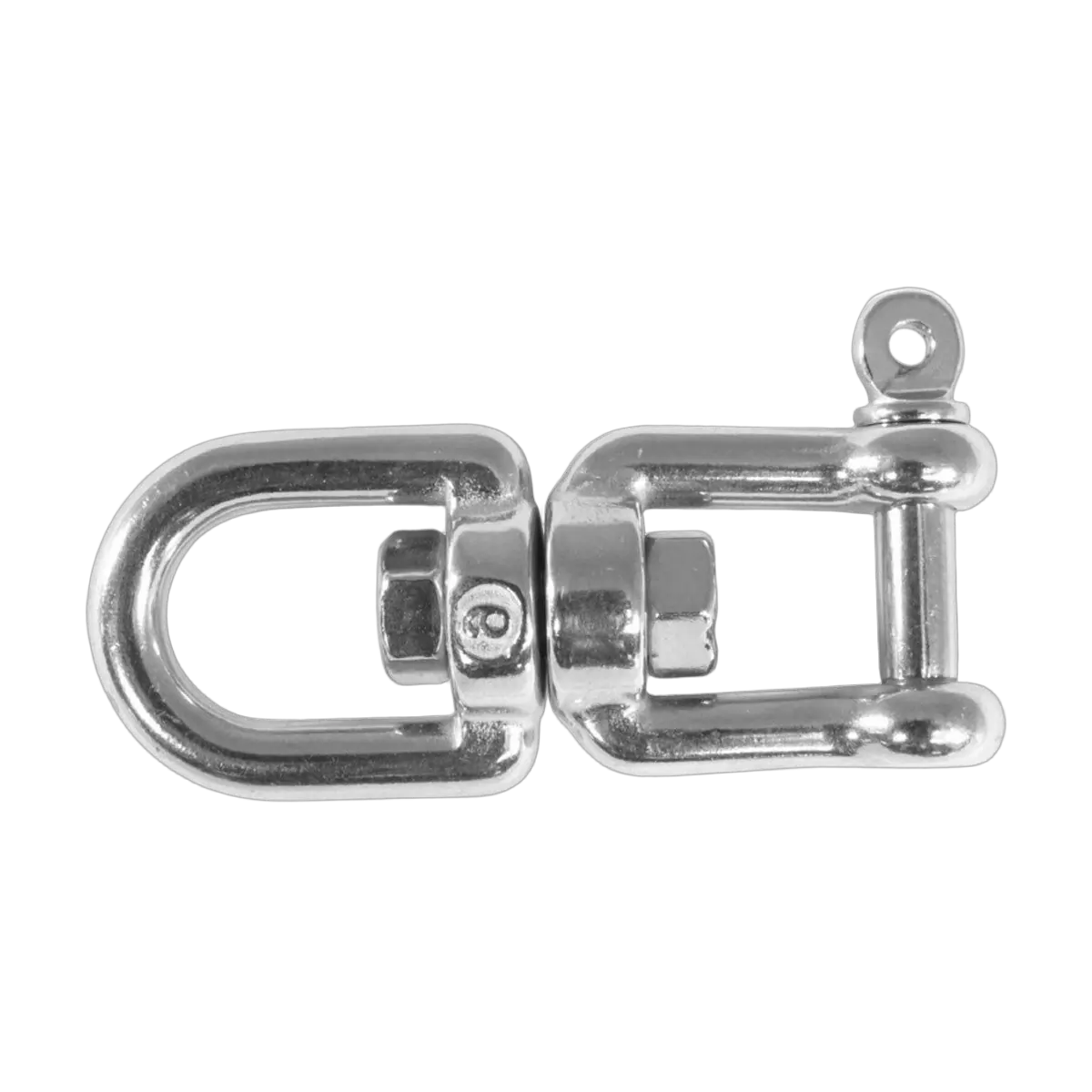

Cast 316 grade stainless steel eye and fork swivels. Welded nut pivot bolt. Drilled jaw pin for security tie wire.
Not SWL rated for lifting purposes.
| Part Number | Pin Diameter | Length (A) | B | Inner Width (C) | Inner Length (D) | Break Load |
|---|---|---|---|---|---|---|
| BLA-165474 | 6mm | 66mm | 12mm | 15mm | 11mm | 1200kg |
| BLA-165476 | 8mm | 88mm | 16mm | 20mm | 16mm | 1900kg |
| BLA-165478 | 10mm | 112mm | 20mm | 24mm | 21mm | 3500kg |
| BLA-165480 | 12mm | 146mm | 26mm | 33mm | 26mm | 5000kg |
Specifications
| SKU | 165474 |
|---|---|
| Barcode # | 9319786019573 |
| Brand | BLA |
| Shipping Weight | 0.0600kg |

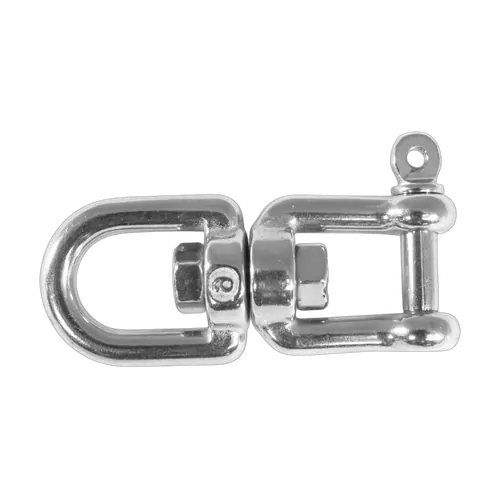

BLA Stainless Steel Eye & Fork Swivel G316 6mm
SKU: 165474
Sale price
REG $12.90
FINAL DAYS - Black Friday Sale Ends Monday
SALE ENDS
Ships in 5 days
More infoMake 4 payments of $2.50 over 8 weeks and get it now!
Calculate Shipping
Description
Cast 316 grade stainless steel eye and fork swivels. Welded nut pivot bolt. Drilled jaw pin for security tie wire.
Not SWL rated for lifting purposes.
| Part Number | Pin Diameter | Length (A) | B | Inner Width (C) | Inner Length (D) | Break Load |
|---|---|---|---|---|---|---|
| BLA-165474 | 6mm | 66mm | 12mm | 15mm | 11mm | 1200kg |
| BLA-165476 | 8mm | 88mm | 16mm | 20mm | 16mm | 1900kg |
| BLA-165478 | 10mm | 112mm | 20mm | 24mm | 21mm | 3500kg |
| BLA-165480 | 12mm | 146mm | 26mm | 33mm | 26mm | 5000kg |
Specifications
| SKU | 165474 |
|---|---|
| Barcode # | 9319786019573 |
| Brand | BLA |
| Shipping Weight | 0.0600kg |
