Circuit breaker panels with stylish curved front facia incorporating recesses for circuit breaker toggles preventing them from being switched on accidentally.

Digital panel functions include volts for up to three battery banks and current discharge/charge as well as ampere hours used and remaining for two banks. The digital meter can also be used as a tank monitor.

Features:
Durable grey powder coated marine grade aluminium base panel
Marine quality, magnetic, hydraulic, UL listed trip free breakers
Backlit labels supplied, refer page 101
Suitable size negative busbar supplied
1x 450A/50mA shunt supplied, refer page 139
Red LED indication for circuits �on�
Green LED back lighting for meters and labels
Double pole configurations available for survey or additional safety
DC digital meters - 200 mV sensitivity, 1% accuracy including alarms. 12mm high numerals

With the flexibility of the 'Contour' four way plastic modules, BEP can build panels to custom requirements if requested.

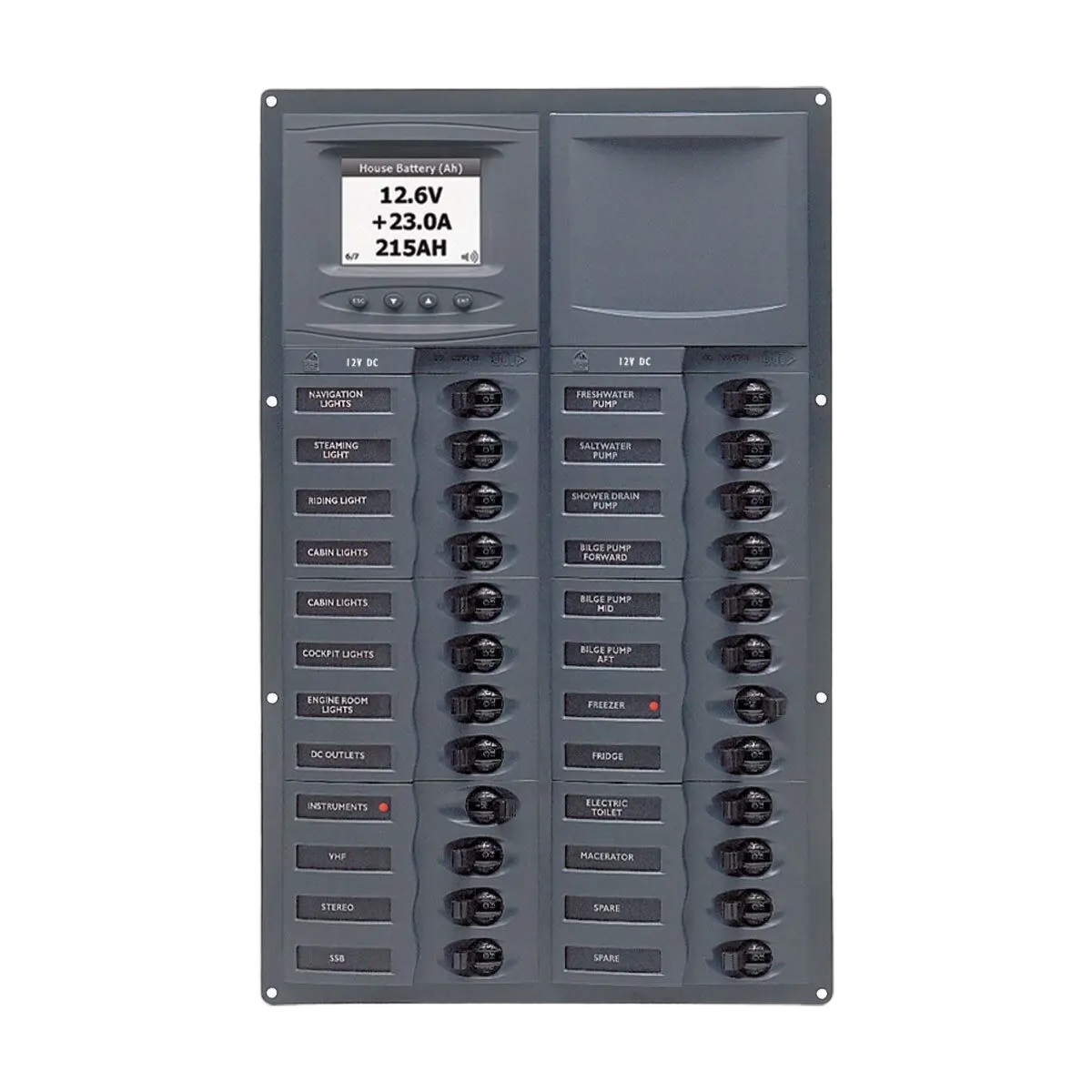

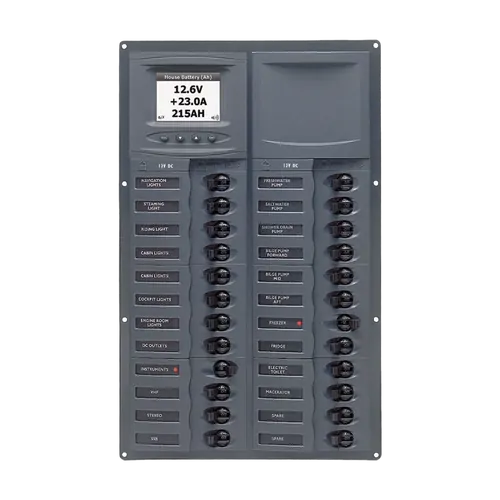

Circuit Breaker Panel

Circuits: 24 Overall Size WxH: 351mm x 295mm Cut Out Size WxH: 331mm x 275mm Intrusion mm: 65mm Mount Screws Gauge: 6 r/h Power Volt: 12-24 Label Sheet: 1, 2 & 3
