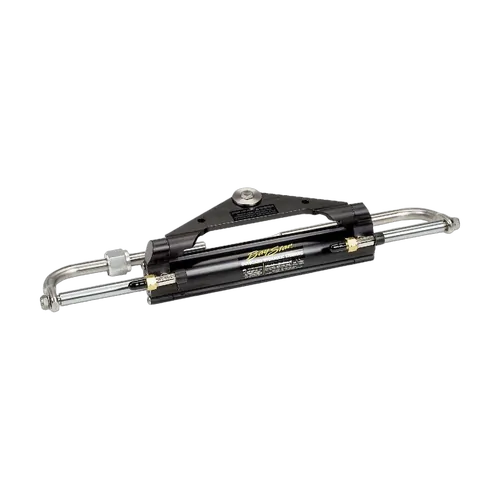

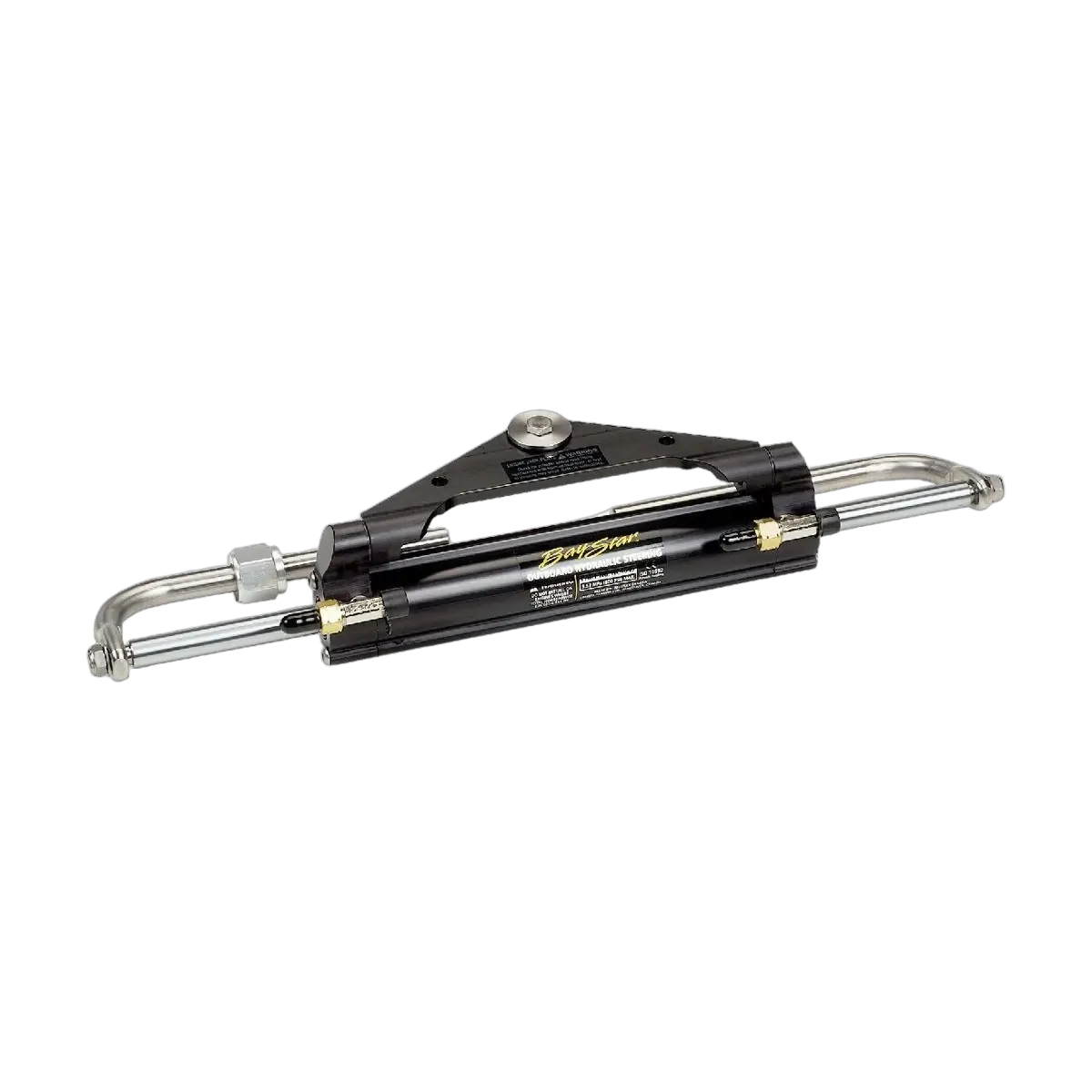

Baystar Cylinder Capacities – SeaStar Solutions Part No. HC4460H

BayStar™ inboard hydraulic steering has been developed by SeaStar Solutions® for use in relatively low
torque applications – typically low speed displacement vessels. For applications that exceed BayStar’s
torque rating please purchase one of our SeaStar® products.
Features:
• Anodised alloy cylinder and mount
• Compact helm
• 4.6 turns lock to lock
• Cylinder torque 52kg/m (4514in/lb)
• 15.9cm (6.25″) stroke
• Balanced cylinder
• Adjustable O-ring sealed ports

Cylinder Model: Inboard ATM Bore: 1.25" / 31.7mm Shaft Dia.: .50" / 12.7mm Stroke: 6.25" / 159mm Volume: 105cc / 6.4in3 Torque: 4513in-lb / 52kg-mm
