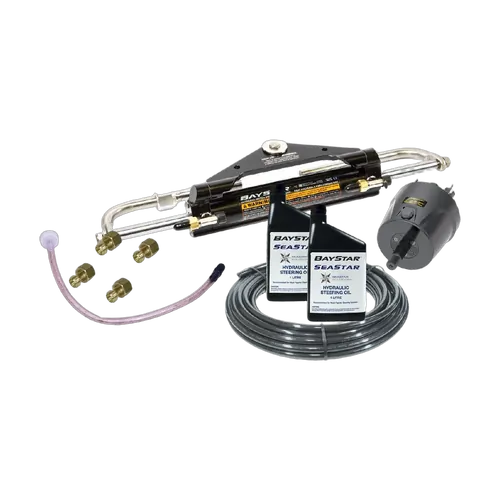

Baystar Steering Kit Semi – Rigid Nylon Hose Steering Kit – Tilt Helm

BayStar Plus outboard hydraulic steering has been developed by TeleflexMarine to suit most single outboard driven vessels up to 150HP. For applications that exceed BayStar HP rating please purchase one of our SeaStar products.

Features

• Patented No Feedback steering lock valves
• Super low friction helm for smooth comfortable steering
• 5.2 turns lock to lock
• Balanced design that fits most splashwells provides full engine movement
• Cylinders to suit most outboards

Three easy steps to order your BayStar Steering kit

1 Check helm dimensions: Front Mount Hydraulic Helm

• Used with both front and side mount cylinders
• Easily installed to your existing console to create a professional finish
• Easy front of console filling point for hydraulic oil
• Simple purging process

2 Check cylinder dimensions: Front Mount Cylinder

• This compact unit fits narrow splashwells with only 534mm width required
• The steering cylinder is protected in the splashwell
• One common cylinder fits most outboards to 150HP
• Fits to outboard tilt tube

3 Splashwell

Is there enough room in the splashwell for full engine tilt? Check your dimensions (A, B & C) and ensure that they are the same or more than what is listed.

Supplied in kit form with all the components required to complete your installation.

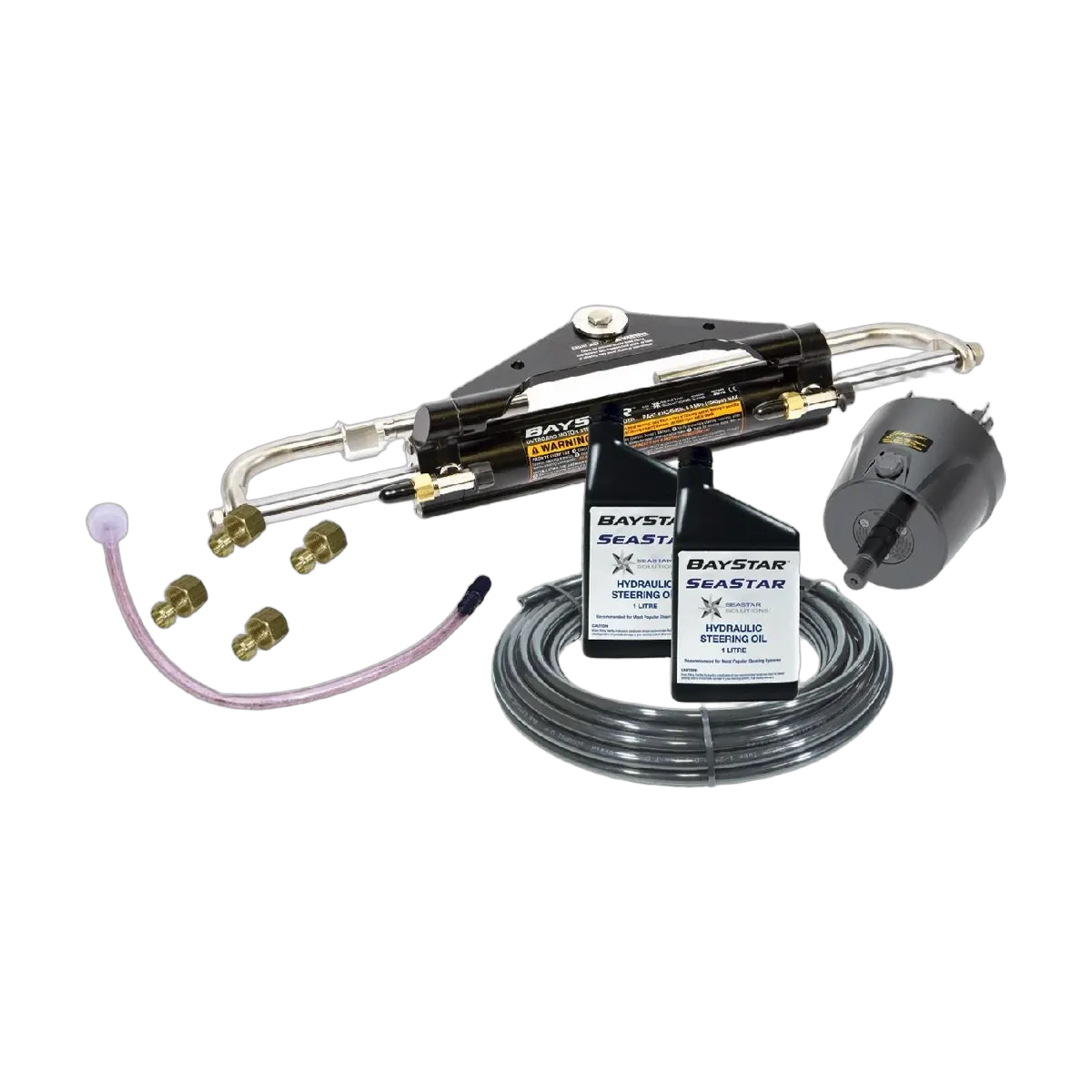

Kits Include:

• BayStar Plus helm pump tilt helm 291492
• BayStar  front mount cylinder
• 15m 292997 semi rigid nylon hose kit
• 4 x 293610 nut and olive kit
• 1 x 291898 filler kit
• 2 x 291902 1 litre Seastar oil

Not recommended for Mercury 150HP Optimax DFI
