Description
HITCH FEATURES:
- ADJUSTABLE AND REVERSIBLE SHANK & BALL PLATFORM
- THE SHANK IS REVERSIBLE AND THE BALL PLATFORM IS REVERSIBLE, ALLOWING MANY HEIGHT CONFIGURATIONS
- 5 HOLE - 12 STAGES OF ADJUSTMENT
- 6 STAGES OF DROP DOWN TO 186MM
- 6 STAGES OF RISE UP TO 166MM
- 2 X HITCH PIN HOLES TO GIVE GREATER ADJUSTMENT
- A GENUINE MISTER HITCHES PRODUCT - DESIGNED IN AUSTRALIA
- SUITS MOST 40MM x 40MM SMALL CAR TOW BAR RECEIVERS EG. SUBARU, HONDA, KIA, MAZDA SOME COMMODORES.
- MATTE BLACK SEAGUARD BLACK POWDER COATED DROP FORGED STEEL
- ROBOTIC WELDED FOR STRENGTH AND CONSISTENCY
- 40MM SQUARE SHANK
- HEAVY DUTY 19MM X 75MM BALL PLATFORM
- 19MM BACKING PLATE
- INCLUDES 2 x 16mm 12.9 GRADE HIGH TENSILE BOLTS
- 25 YEARS WARRANTY
- BALL PLATFORM IS REVERSIBLE AND SO IS THE SHANK
- MAXIMUM G.T.W (GROSS TRAILER WEIGHT) = 1800KG
- MAXIMUM T.W (TONGUE WEIGHT) = 180KG
- MAX. DROP = 186MM
- MAX. RISE = 166MM
- HAS STANDARD 7/8" TOW BALL HOLE AND STANDARD 5/8"PIN HOLE
- LENGTH (FROM CENTRE OF PIN HOLES TO CENTRE OF TOW BALL HOLE): 237MM & 267MM
- LENGTH (FROM CENTRE OF PIN HOLE TO END OF SHANK (VEHICLE END): APPROX 50MM & 80MM
- ROBOTIC WELDED
Specifications
| SKU | MHABM-40 |
|---|---|
| Barcode # | 000006793586 |
| Brand | Mister Hitches |
| Shipping Weight | 8.0000kg |
SKU: MHABM-40

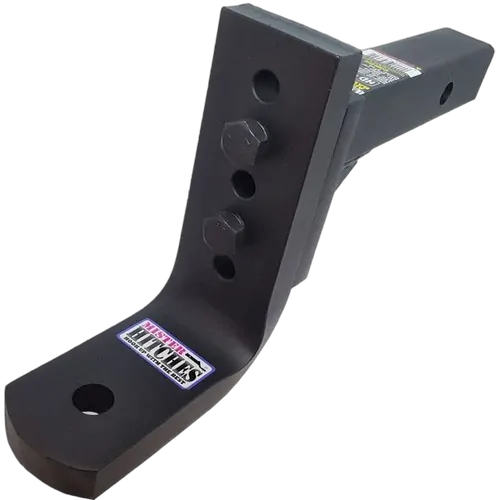

Ball Mount Adjustable 12 Stage 40 X 40mm Shank 1800Kg
Availability:
In stock
Pay in 4 interest-free payments of $24.75
More infoMake 4 payments of $24.75 over 8 weeks and get it now!
or interest free for up to 12 months with
Make 4 payments of $24.75 over 8 weeks and get it now!
This Ball Mount from Mister Hitches has a weight rating of 1800kg, and is adjustable to suit your towing needs with a 12 stage shank.
