Description
Autopilot ORB hose fitting kit for MKII Pumps 1, 2, 3, 4 &5

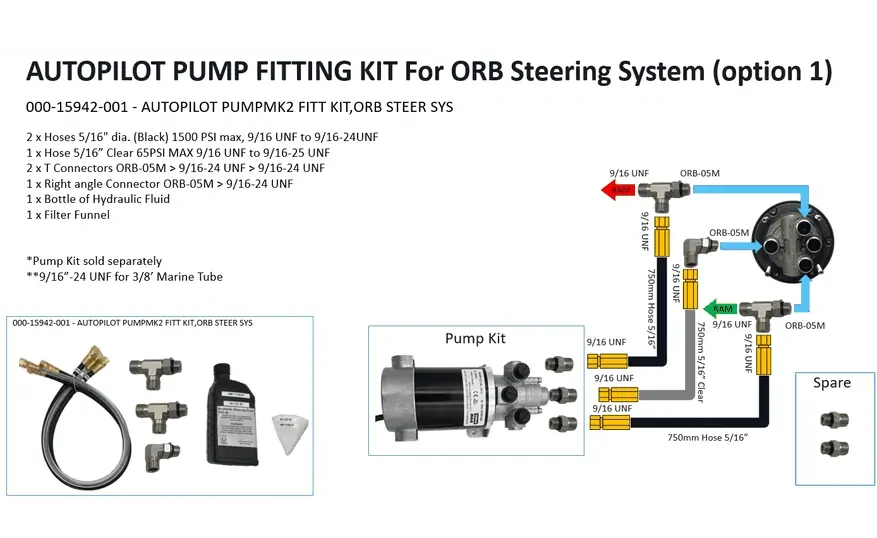

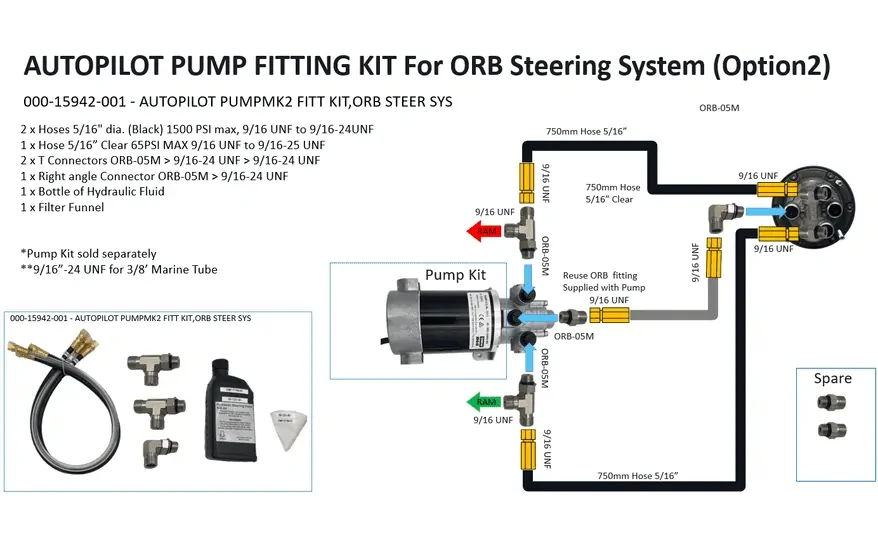

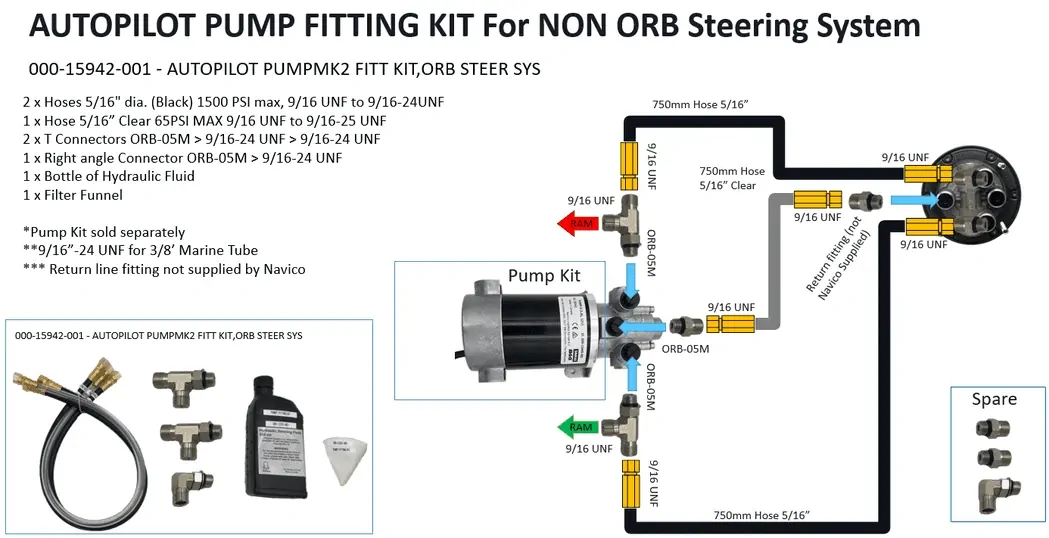

Fitted hose kit designed for simplified ORB system installation reducing the opportunity for faulty field terminated hydraulic hoses and incorrect installation layouts.

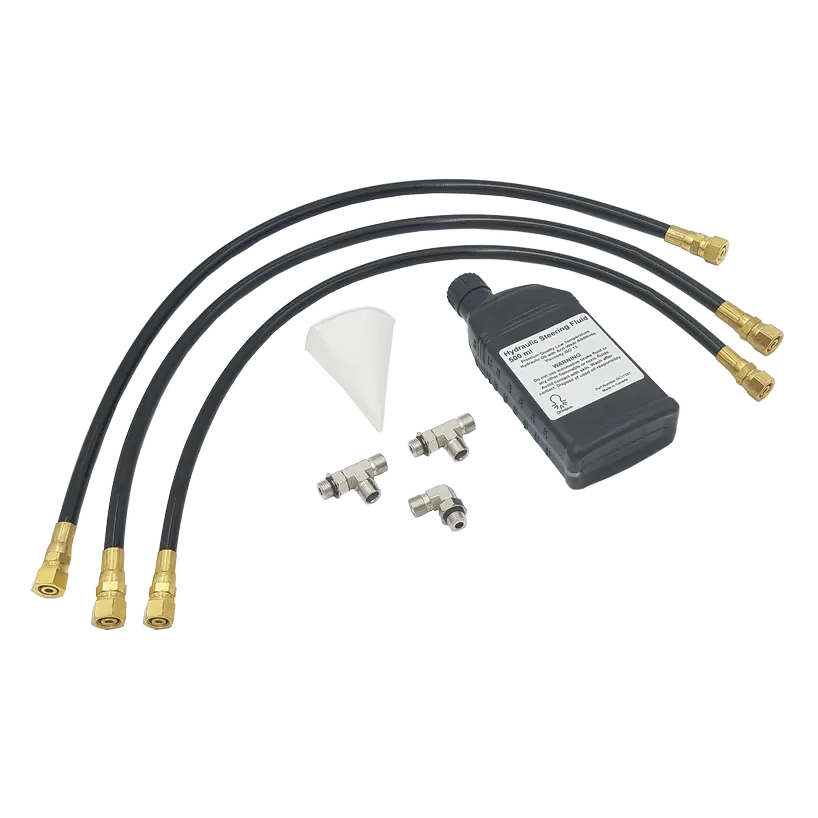

Kit contains
- 2 x T Connectors ORB-05M > 9/16-24 UNF > 9/16-24 UNF
- 1 x Right angle connector ORB-05M > 9/16-24 UNF
- 3 x Hoses 5/16" dia. (Black) 1500 PSI max, 750 mm (29.5"), 9/16 UNF to 9/16-24 UNF
- 1 x Bottle of hydraulic fluid
- 1 x Filter funnel
Specifications
| SKU | 000-15942-001 |
|---|---|
| Barcode # | 9420064127771 |
| Brand | Simrad |
| Shipping Weight | 1.4000kg |
| Shipping Width | 0.330m |
| Shipping Height | 2.500m |
| Shipping Length | 0.250m |
SKU: 000-15942-001

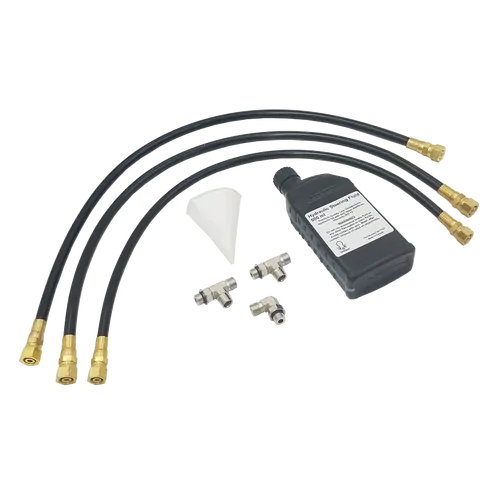

Simrad Autopilot pump fitting kit for ORB steering system
Sale price
$305.00
