Active Line Out Converter
AudioControl has paired our award winning amplifier technology with our powerful Matrix DSP into the D-4.800. This single-unit solution provides unprecedented power and tuning flexibility when you require audio perfection from your factory or aftermarket sound system.
Maximum Sound Quality
The AudioControl D-4.800 Amplifier offers two great features for unlocking amazing sound in your vehicle. Serious power and extensive control. The amplifier can be setup as either 4,3 or 2 channel configurations to suit your needs.
Designed for us with many different combinations including
Active 2 Way Component Speakers
Front and Rear Speakers passive
You could even use it for 2x Subwoofers!
Offering a full Digital Sound Processing (DSP) suite, the D-4.800 lets you tune and dial in your system to how you always wanted it.
Big On Output
With a long heritage of home audio, AudioControl's flag ship 4 Channel DSP Amplifier offers some serious grunt matched with amazing sound quality.
Thanks to its efficient Class-D topology, the D-4.800 offers full 20Hz to 20kHz audio range with a warm, clean and detailed sound like you would find in the AudioControl home theatre range.
With up to 200 Watts RMS per channel and over 400w Bridged, this packs a serious punch with its 4 channels of output.
We've even included an assignable stereo RCA output for additional amplifier connection. Great for external mono block amplifiers.
The Input You Need
Integrating an amplifier into the factory audio system of many vehicles can be confusing and scary. Dealing with many input channels, active and passive speaker options and high powered outputs makes your basic line out converter not an option.
With 6 Channels of high level input accepting up-to 400 watts per channel using the same technology found in our DSP range of interfaces, the D-4.800 makes easy work of taking all of these signals and giving you the smooth full range output you want.
Using an aftermarket headunit?
We've got you covered with 4 channels of low level RCA input for direct control of each channel.
Get That BASS!
Using patented technology, each AudioControl D-4.800 includes the AccuBASS processor system.
Ever fitted an amplifier to a factory system and found the bass lacking the punch you wanted? Designed to correct bass removed from the factory audio system to protect the factory speakers, AccuBASS processing is an adjustable feature that gives your new audio system rock solid bass response that you wanted.
Smart DSP Software
Connect your laptop to the D-6.1200 using AudioControl’s DM Smart DSP app, a fully featured Matrix DSP Interface designed to give you instant and clear control over every aspect of your processor.
Features Per Channel
- 30 band EQ
- Adjustable 12 or 24 dB/octave Linkwitz-Riley High-pass / low-pass / band-pass crossover
- AccuBass Bass Restoration
- Adjustable Time Delay
- Adjustable Signal Delay
- Channel Summing
- Line Driver
- Auto EQ
- Adjustable Input Level
- Real Time Analyzer on Input Channel as well as Output Channel.
For OEM integration, take advantage of the input and output RTAs, available for every input and output, to easily identify and sum factory speaker signals.
With a clear GUI and intuitive workflow, AudioControl’s DM Smart DSP app will take the guesswork out of tuning your system to your exact specifications.
Control From The Palm Of Your Hand
With support for Bluetooth Audio (aptX) and Bluetooth Data, the optional AC-BT24 can be installed into the option port of the D-6.1200 to allow complete control of your Digital Sound Processor's DM Suite from your iOS or Android device.
You can also stream your favourite music in high fidelity aptX via Bluetooth audio with direct volume control on your phone or tablet.
(AC-BT24 Available Separately)
Plug & Play Your Audio Away
With our wide range of Plug and Play harnesses, you can get the right connection, save time on installation and get the professional finish.
Available for a select wide range of makes and models including:
- Audi
- BMW
- Citroen
- Ford
- Holden
- Honda
- Hyundai
- GM
- KIA
- Mazda
- Skoda
- Subaru
- Toyota
- Volkswagen and more!
(available Separately. Please check compatibility)
Control At Your Fingertips
Control your subwoofer bass level with ease using the optional ACR-3 Bass controller. Assignable for each channel on the D-6.1200, this can be used as a overall volume control or as a direct subwoofer level.
Clicking the controller in, you can then scroll left or right to select up to 4 audio presets for your audio system.
(Available Separately. Only one ACR-3 can be used on the amplifier)
What Do You Get?
Specifications
Inputs
- Preamp Inputs: 4 Balanced
- Preamp Input Voltage Range: 250 mV –8 Vrms
- Speaker Level Inputs: 6
- Speaker Level Input Voltage Range: 3 V – 40 Vrms
Outputs
Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 125 W x4 RMS
- 2 Ω – 200 W x4 RMS
- 4 Ω – 400 W RMS BRIDGED
- Preamp Outputs: 2x RCA (assignable in DSP Software)
- Preamp Output: Upto 8.5v RMS
Performance
- Frequency Response: 20 Hz – 22 kHz
- Signal to Noise: 102 dBA, Ref 200 W @ 2 Ohm
- THD+N: < 0.01%
- Power / Ground Wire Gauge: 8 to 3 AWG wire
- Fuse Rating: 3 x 40 A
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
- PFM Subsonic Filter: 24 Hz
- GTO Remote Turn On Feature
- AccuBass Bass Restoration Feature
- 30 Band EQ per Channel
- Adjustable 12 or 24 dB/octave Linkwitz-Riley High-pass / low-pass / band-pass crossover
- Adjustable Time Delay
- Adjustable Signal Delay
- Channel Summing
- Line Driver
- Auto EQ
- Adjustable Input Level
- Real Time Analyzer on Input Channels and Output Channels.
- Micro USB Connection
- Option Port for Bluetooth Module (AC-BT24)
- Option Port for Volume Control Module (AC-ACR-3)
Whats In The Box
1x Amplifier
1x Speaker Connector
2x 40 Amp Fuse
1x Manual
1x Awesomeness
Check Out These Recommended Accessories
16GA Speaker Cable
Part Number: ST16SPKB
Plug & Play Harness
Part Number: AC-AMPH-3M
Remote Bass Controller
Part Number: AC-ACR-3
4GA Amplifier Wiring Kit
Part Number: SK4241
Product Overview Video
| DSP Built-in |
Yes |
|---|---|
| Rated Continuous (RMS) Power @ 14.4v |
4 Ω – 125 W x 4 RMS / 2 Ω – 200 W x 4 RMS / 4 Ω – 400 W BRIDGED RMS |
| High level Input Voltage |
40v (400 Watts) Per Channel |
| Input Channels |
4 Channel RCA + 6 Channel High Level Input |
| RCA Pre-Outs |
2 Channel Stereo |
| Remote Turn On Feature |
YES |
| Total Harmonic Distortion Rating |
0.01% |
| Crossover Type |
12 and 24 dB/octave Linkwitz-Riley |
| Dimensions |
9″W x 7.95″D x 2.1″H |
| SKU | AC-D4.800 |
|---|---|
| Barcode # | 855814005792 |
| Brand | AudioControl |
| Shipping Weight | 5.0000kg |

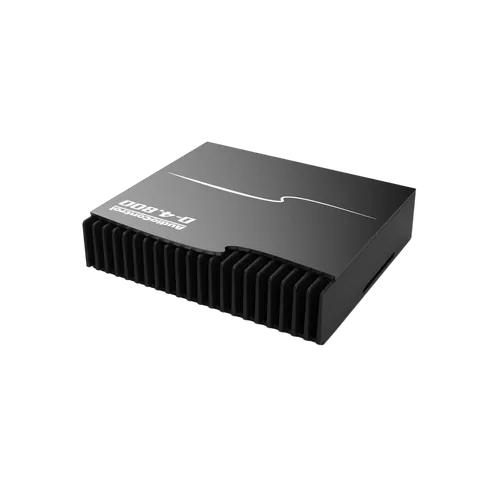

Audiocontrol D Series 4 Channel Amplifier W/Dm Dsp
