Micro 2 Channel Amplifier
ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation.
Small Foot Print
Trying to find room for an amplifier in your vehicle is always a task, especially in small vehicles. AudioControl's range of ACM Amplifiers are designed for this exact reason.
This tiny, almost hand sized, fits in your back jeans pocket amplifier is designed to be fitted behind trim panels, up behind dashboards or tucked away in small areas where space is an issue.
Big On Power
Don't let the small size of the ACM Amplifiers fool you. They may be small but the ACM-2.300 packs a punch with conservative 150w RMS per channel, enough to power your speakers with ease.
Featuring the same technology and design of its larger brother the AudioControl LC Series, the ACM Series offer smooth, clean and detailed audio output to keep any audiophile happy.
Choose Your Inputs
Designed for both OEM integration and aftermarket head unit connectivity, the ACM-2.300 features true High Level and Low Level inputs.
With handling up-to 400 Watts Per Channel (40V rms) on high level and up-to 6v rms RCA low level, this versatile amplifier can be used easily in connection with OEM Amplified systems using the same technology found in the AudioControl LC2i as well as your aftermarket headunit.
Great Turn On
Every ACM Series amplifier features AudioControls Patented GTO Technology. Standing for Great Turn On, this feature powers on the amplifier when high level audio is received from the factory audio system meaning no remote wire is needed and keyless play (if the vehicle has it) can be retained.
Plug & Play Your Audio Away
With our wide range of Plug and Play harnesses, you can get the right connection, save time on installation and get the professional finish.
Available for a select wide range of makes and models including:
- Audi
- BMW
- Citroen
- Ford
- Holden
- Honda
- Hyundai
- GM
- KIA
- Mazda
- Skoda
- Subaru
- Toyota
- Volkswagen and more!
(available Separately. Please check compatibility)
Modular Design
Every ACM series amplifier features the exact same footprint and size, allowing you to mount back to back or stack ACM Amplifiers for neat tidy installation.
Each amplifier includes a removable top plate which can be mounted to the top or the bottom of the amplifier as the ACM Amplifier can be mounted upside down as well for those flushed in fitment.
With the optional large mounting plate, you can replace the included removable top plate for a seamless look (available separately)
What Do You Get?
Specifications
Inputs
- Preamp Inputs: 2 Balanced
- Preamp Input Voltage Range: 500 mV – 6 Vrms
- Speaker Level Inputs: 2
- Speaker Level Input Voltage Range: 3 V – 40 Vrms
Outputs
Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 75 W x2 RMS
- 2 Ω – 300 W x2 RMS
- 4 Ω – 300w RMS x1 (BRIDGED)
Performance
- Frequency Response: 10 Hz – 22 kHz
- Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
- THD+N: < 0.01%
- Power / Ground Wire Gauge: 10 to 4 AWG wire
- Fuse Rating: 1 x 30 A
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
- PFM Subsonic Filter: 32 Hz
Whats In The Box
1x Amplifier
1x Speaker Connector
1x 30 Amp Fuse
1x Manual
1x Awesomeness
Check Out These Recommended Accessories
Dual Amplifier Mounting Plate
Part Number: AC-ACM-5.600
Plug & Play Harness
Part Number: AC-AMPH-3M
16GA Speaker Cable
Part Number: ST16SPKB
Plug & Play Harness
Part Number: AC-AMPH-6M
Product Overview Video
| Rated Continuous (RMS) Power @ 14.4v |
4 Ω – 75w x 2 RMS / 2 Ω – 150w x 2 RMS / 300w RMS Bridged 4 Ω |
|---|---|
| High level Input Voltage |
40v (400 Watts) Per Channel |
| Input Channels |
2 Channel RCA + 2 Channel High Level |
| RCA Pre-Outs |
NONE |
| Remote Turn On Feature |
YES |
| Total Harmonic Distortion Rating |
0.01% |
| Crossover Frequency |
Selectable 80Hz / 120Hz / Bypass |
| Crossover Type |
Independent 12 dB Linkwitz-Riley Crossovers |
| Dimensions |
9.4″W x 3.0″D x 1.75″H |
| SKU | AC-ACM-2.300 |
|---|---|
| Barcode # | 851523007478 |
| Brand | AudioControl |
| Shipping Weight | 1.5000kg |

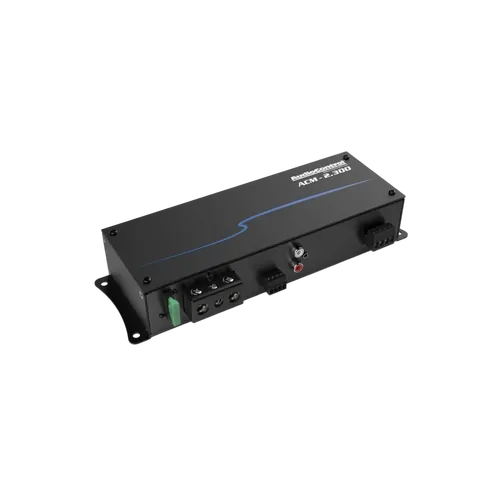

Audiocontrol 2Ch Micro Amplifier
