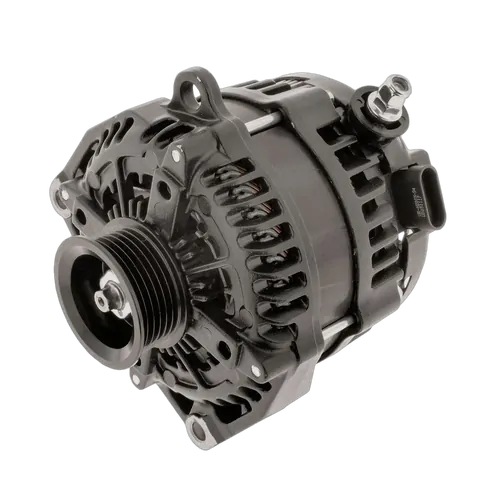

Hair Pin Stator High Charge Rate at Low RPM.
*WIRING MODIFICATION WILL NEED TO BE MADE ON STANDARD TYPE VEHICLES*
Notes:
PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR.

Specifications
Voltage 12V
Amperage 215A Hot (96c) 231A Cold (40c)
Mount Leg ID 56mm
C-C Mounts 139mm
Hole ID Top 10mm
Hole ID Bottom 10mm
Shaft Size 17mm
Pulley Type 6PV, FIXED
Pulley Belt Width
Pulley Grooves 6
Pulley Diameter 61mm
Regulator Type INTERNAL
Series
Connections Plug # EP39
Terminals B+ L, S
Excitation EXTERNAL
Ground NEGATIVE
Weight (Kg) 7.7kg
