Self Exciting/ No need to add to wiring Plug
NSK BEARINGS
Notes:
PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR.

Specifications
Voltage 12V

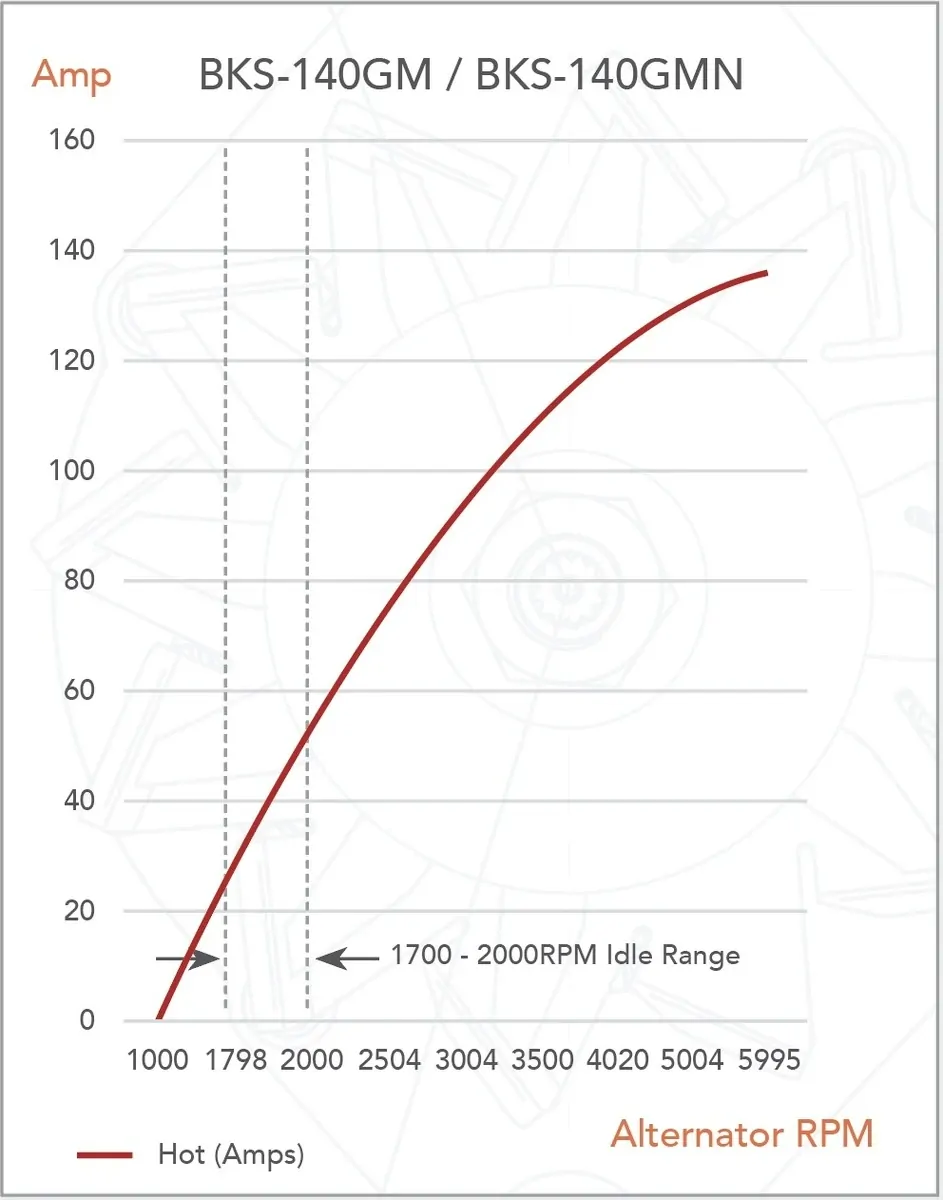

Amperage 132A (Hot) 148A (Cold)
Mount Leg ID 51mm
C-C Mounts 157mm
Hole ID Top M8
Hole ID Bottom 10mm
Shaft Size 17mm
Pulley Type 6PV, FIXED
Pulley Belt Width
Pulley Grooves 6
Pulley Diameter 56mm
Regulator Type INTERNAL
Series C1S30

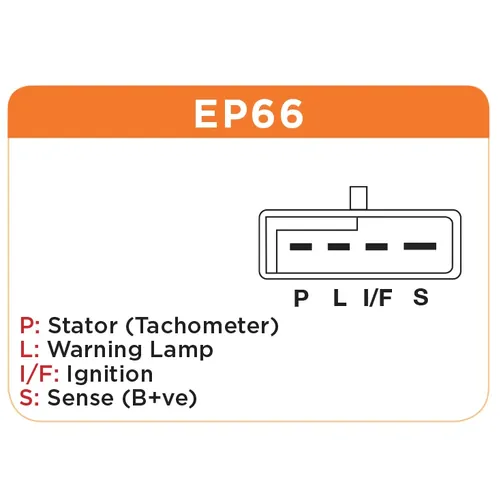

Connections Plug # EP66
Terminals B+, P (TACHO), L (WARNING LIGHT), I/F, S (BATTERY SENSE)
Excitation INTERNAL
Ground NEGATIVE
