Description
| Specifications | |
| Voltage | 12V |
| Amperage | 150A |
| Mount Leg ID | 65mm |
| C-C Mounts | 160mm |
| Hole ID Top | 10mm |
| Hole ID Bottom | 10mm |
| Shaft Size | |
| Pulley Type | 9PV |
| Pulley Belt Width | |
| Pulley Grooves | 9 |
| Pulley Diameter | 63mm |
| Regulator Type | INTERNAL |
| Series | |

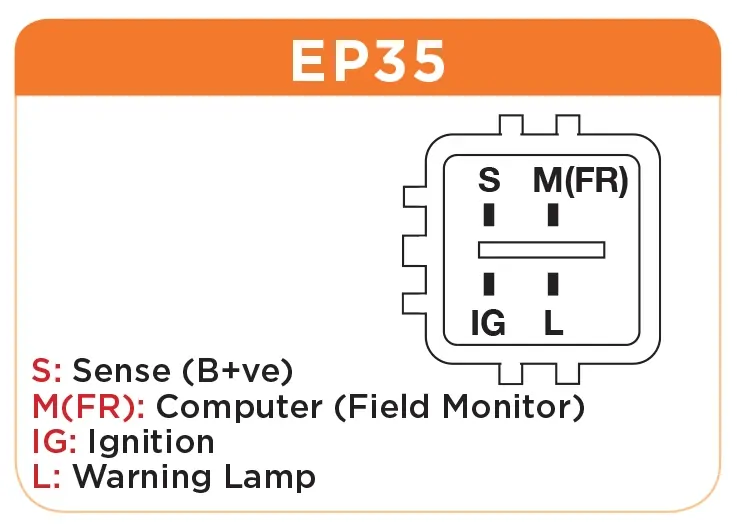

| Connections Plug # | EP35 |
| Terminals | B+, S, IG, M(FR), L |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
| Weight (Kg) | 8.0kg |
| Manufacturer Type | |
| Product Release Documents + | |
|
|
|
| Technical Drawings, Wiring Diagrams + | |
|
|
|
| MSDS + | |
|
|
|
| Supplier Website + | |
|
|
|
| Installation Instructions + | |
|
|
|
Specifications
| SKU | 65-8594-2 |
|---|---|
| Barcode # | OEBC534296 |
| Brand | Jaylec |
| Shipping Weight | 7.5000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.230m |
| Shipping Length | 0.220m |
Alt 12V 150A To Suit Landcruiser 4.5L Diesel 1Vd-Ftv 2007-
SKU: 65-8594-2
Sale price
REG $447.51
More infoMake 4 payments of $111.88 over 8 weeks and get it now!
Calculate Shipping
