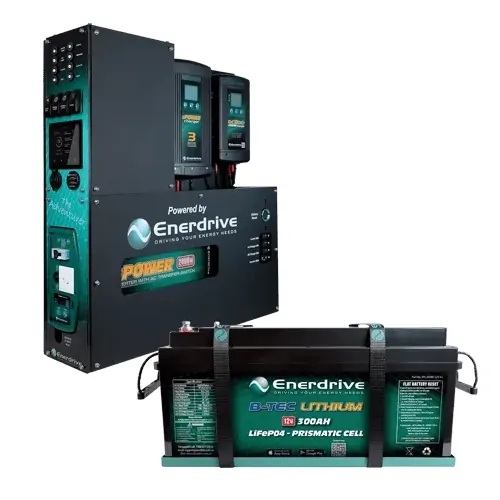

Bundle contains the following items:



• ePOWER B-TEC G2 12v 300Ah Lithium Battery
• Adventurer 02 Power System

With Enerdrive breaking into the 4WD canopy market in recent years, we have been consistently asked by manufactures and end users to come up with a compact power solution to operate all of the electrical equipment that is ending up in the back of these canopies. From a simple system to operate a fridge and a couple of lights to a full on power station, these are the type of systems we have been asked for. After many brainstorming sessions and 3D modelling designs, Enerdrive have produced 3 models to cover just about any customer request for power in their canopies.

The Adventurer:

This system is designed for the end user requiring maximum power requirements along with AC charging ability and 230v Inverter power. Available in 3 different versions;

1. K-ADVENTURER-01 inc ePRO PLUS Battery Monitor
2. K-ADVENTURER-02 inc Simarine Battery Monitoring
3. K-ADVENTURER-03 inc Simarine & Individual Load Monitoring

The Adventurer 01 for example consists of the following items

• Enerdrive ePOWER DC2DC40+ Vehicle/Solar Charger
• Enerdrive ePOWER 40A AC charger
• Enerdrive ePOWER 2000W AC Transfer Inverter
• 1 x ePRO Plus Battery Monitor (K-ADVENTURER-01)
• 4x Pre-wired Circuit Breakers for main power equipment
• 4 x Contura switches for Lights & Auxiliary loads
• 4 x additional Circuits Breakers for Air/Water Pumps and more
• Main System & Inverter Hi-Amp Circuit Breakers
• 1 x 12v CIG & 1 x Dual 2.4A USB sockets come standard. You can choose a mixture of Twin USB 2.4A Hi Amp sockets to charge your mobile devices or mix it up with 2 x 12v Output Socket. The choice is yours at time of order.
• Battery Reset button for kick starting your flat battery from the DC2DC Charger
• Simarine LCD Battery WIFI Monitoring System with option to incorporate individual load/charge information. (K-ADVENTURER-02 & 03)
• Optional Water/Fuel Tank module also available. (K-ADVENTURER-02 & 03)

All Adventurer systems are pre-wired by Enerdrive so the only cabling required at installation time is load outputs, battery connection & vehicle/solar/tank inputs All systems are built into a unique compact box arrangement and designed to mount for example on either the front or rear bulkhead of a vehicle canopy. If you are interested in having custom engraving for switch/circuit breakers to your specific requirements, this option is available at an additional cost. Enerdrive are proud to bring to market this innovative design that can be installed by the manufacturer or end user in a neat one piece installation.

*Please note these systems are built to order and have a lead time of 4-6 weeks*

Specifications

Items Included	The Adventurer
ePOWER DC2DC 40+ Charger (Vehicle/Solar)	*
ePOWER 40A AC Charger	*
ePOWER 2000W AC Transfer Inverter	*
ePRO Plus Battery Monitor	K-ADVENTURER-01
Simarine LCD Battery WIFI Monitoring System	K-ADVENTURER-02 K-ADVENTURER-03
1 x 1m 70mm2 Main Battery Cable Connection Kit inc Main fuse	*
4x Pre-Wired Circuit Breakers for Main Power Equipment	*
4 x Additional Circuit Breakers	*
4 x Contura Switches	*
Twin USB 2.4A Hi Amp Sockets	*
Cig Socket to Replace One or Both USB Sockets. (Please Request at Time of Order)	Optional
Battery Reset Button	*
Main System & Inverter Circuit Breakers	*
Individual Load/Charge Module for Simarine. (#SI-SCQ50)	K-ADVENTURER-03
Water/Fuel Tank Module for Simarine. (#SI-ST107)	K-ADVENTURER-02 (Optional) K-ADVENTURER-03 (Optional)
Dimensions	630L x 155W x 665Hmm
Weight	18kg
(*) Indicates Standard Fitment



Features

Enerdrive B-TEC LiFeP04 12v 300Ah G2 Lithium Battery

Available in 12v 300Ah capacity, the Enerdrive B-TEC G2 lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

Smart Phone Monitoring System

The Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

• Battery Capacity
• Battery Voltage
• Battery Current (Amps)
• Battery State of Charge (SOC)
• Battery State of Health (SOH)
• Battery Status
• Individual Cell Voltage
• Battery Temperature
• Battery Cycles
• Battery Alarms
• Battery Event Information



Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

Size & Weight Savings

Lithium v AGM Capacities;

• 100Ah Lithium = 160Ah AGM
• 125Ah Lithium = 200Ah AGM
• 200Ah Lithium G2 = 320Ah AGM
• 300Ah Lithium G2 = 480Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC G2 battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

The New Generation 2 B-TEC

So, How does the New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery measure up against it original predecessor? Let’s have a look.

Dimension	Original	Generation 2
Length	519mm	521mm
Width	273mm	280mm
Height	222mm	253mm

Also included for free is a metal battery tray and hold down strap to complete the installation process.

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.

The new G2 also includes a RS485 communications port located on the top of the battery. This port allows for integration onto other CanBus systems for data monitoring and recording.

The New Enerdrive Generation 2 (G2) B-TEC 300Ah Lithium Battery now comes with a 5 year warranty, giving you peace of mind that this product will keep you covered.

With over 8 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With over 4000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

Please Note; The G2 battery is capable to be paralleled to a second G2 battery. For maximum performance and lifespan of your G2 battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

The G2 300Ah battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

If you are requiring a battery system larger than the Enerdrive B-TEC G2 battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.

Specifications

Normal Specification	EPL-300BT-12V G2
Nominal Voltage	12.8V
Nominal Capacity	300Ah
Cycle Life (DOD – 80% under controlled conditions)	≥ 2000 Cycles
Standard Charge Specification (Lithium profile charger required)
Battery Charge Temperature	0 ̴ 45°C
Normal Charge Voltage CV/CC*	14.20 ̴ 14.60V
Standby (Float) Voltage	13.50 ̴ 13.80V
Maximum Charge Current	190A @ 25°C for 30mins
Recommended Charge Current For Maximum Life, Charge in the lower amperage range	80~120A
Standard Discharge Specification
Battery Discharge Temperature	-20 ̴ 60°C
Battery Output Voltage Range	11.00 ̴ 14.60V
Maximum Discharge/Pulse Current	250A @ 25˚C ±5˚C for 15 mins
Pulse Discharge Current	450A for 1.0s
Discharge Cut-off Voltage	≤11.20V
Circuit Protection	The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
Over-Charge Protection
Over-charge Protection Per Cell	3.90V ± 0.03V
Over-charge Release Per Cell	3.60V ± 0.05V
Over-charge Release Method	Discharge below release voltage
Over-Discharge Protection
Over-discharge Protection Per Cell	2.80V ± 0.05V
Over-discharge Release Per Cell	3.20V ± 0.05V
Over-discharge Release Method	Apply Charge/Voltage ≥12.8V
Battery Manual Reset Button	Yes
Over Current Protection
Discharge Over Current	280A for 25s – 400A for 3.5s
Protection Reset Time	Approx 10s Auto Release
Over Current Release Method	Disconnect Load
Over Temperature Protection
Battery Discharge Over Temperature	Protection to 65°C ± 5°C
	Release at 50°C ± 5°C
Battery Charge Over Temperature	Protection to 55°C ± 5°C
	Release at 45°C ± 5°C
Short Circuit Protection	Auto release after 5s
Dimensions
Length	521mm
Width	280mm
Height	238mm
Weight	Approx 38.2 Kg
Storage Information
Temperature & Humidity Range	≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH
	≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
Self-discharge Rate	≤ 3% Per Month
