Victron solar panels:
Victron solar panels are made using high quality Polycrystalline & Monocrystalline cells. Victron provide a full range of solar panel modules ranging from 20W - 360W. They are designed for charging deep cycle batteries, for example in vehicles and boats, motor homes, caravans, camping, marine or any other systems with a 12V battery or battery bank.
Solar panels can be utilised to extend battery run time when powering multiple accessories. A number of factors that can influence this include: the time of year, weather conditions, battery capacity and how long you run your appliances. It's important to over size your solar array (where space allows) so that on a good day your solar panels will be able to fully charge your batteries and keep your loads running whilst free camping.
*Note the Victron 24V range of solar panels are suitable for Charging 24V battery systems when using a PWM Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used. The Victron range of SmartSolar regulators would be best suited based on price and quality.
See more info about the SmartSolar Regulator - Click here
- Low voltage-temperature coefficient enhances high-temperature operation.
- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
- 25-Year limited warranty on power output and performance.
- 5-Year Limited warranty on materials and workmanship.
- Sealed, waterproof, multifunctional junction box gives high level of safety.
- High performance bypass diodes minimize the power drop caused by shade.
- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
- A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
- Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
- Pre wired quick-connect system with PV-ST01 connectors.
*Please note, Victron 305W Mono is a special order and take 4-5 business days to order in.

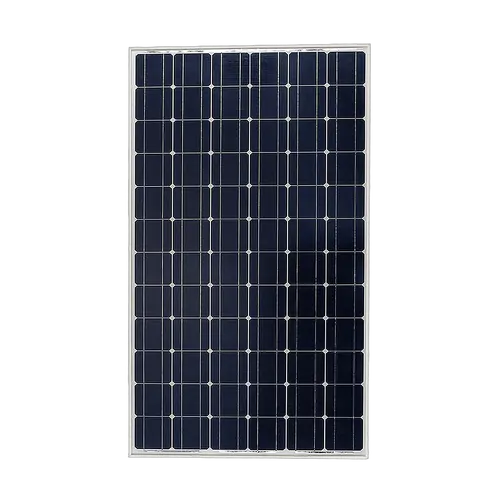

Specifications | |
Model | SPM043052002 |
Cell type | Monocrystalline |
Number of cells in series | 60 |
Nominal power (Watts) | 305 |
Open Circuit Voltage (Volts) | 39.7 |
Maximum Power Voltage (Volts) | 32.5 |
Short Circuit Current (Amps) | 10.27 |
Maximum Power Current (Amps) | 9.38 |
Power (Max.) | 305W |
Temp Range | -40 to +85°C |
Length of cable / connector | 900mm / MC4 |
Power Tolerance | ±3% |
Maximum system voltage | 1000V |
Size (LxWxH) | 1658 x 1002 x 35mm |
Weight | 19kg |
Warranty -Product warranty |
|
SKU | SPM043052000 |
---|---|
Barcode # | 8719076047421 |
Brand | Victron |
Shipping Weight | 18.0000kg |
