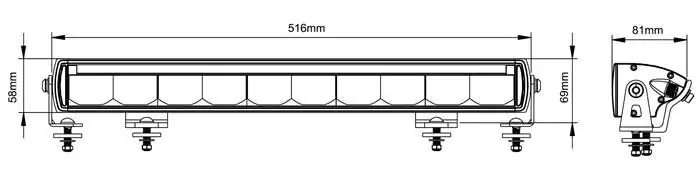

• Free form reflector design • One piece front cover • Die cast aluminium housing • Powder coated finish • Sealed Deutsch connector • Electronic Thermal Management • Dual mounting options • Approved by ECE R112/R7/R10 (Ref. 45) • 2 Year Warranty Wattage 100W Input voltage 9-36V DC input Current draw @ 12V Driving Beam: 5.7A Park Beam: 0.2A Colour temperature 6500°K Raw lumens 9500 Actual lumens 8075 IP rating IP68 & IP69K LED Qty 10 x 10 Watt Cree LED (Driving Light) 2 x 2 Watt LUXEON® LED (Park Light) 1 Lux @ 442 Metres Lens Polycarbonate Beam type Combination Measurements 516 x 58 x 81mm
