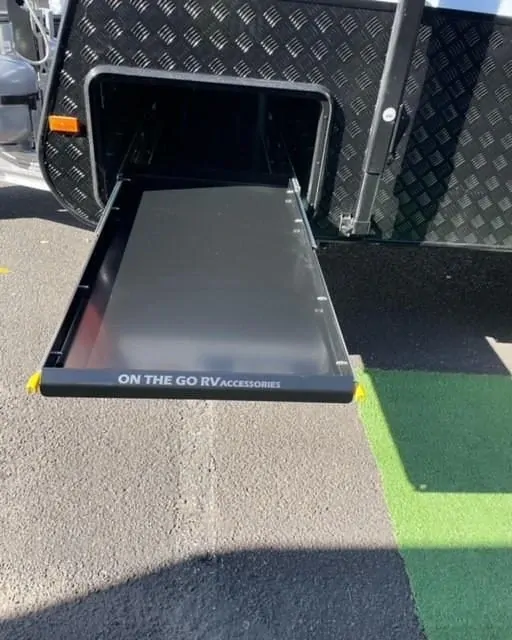

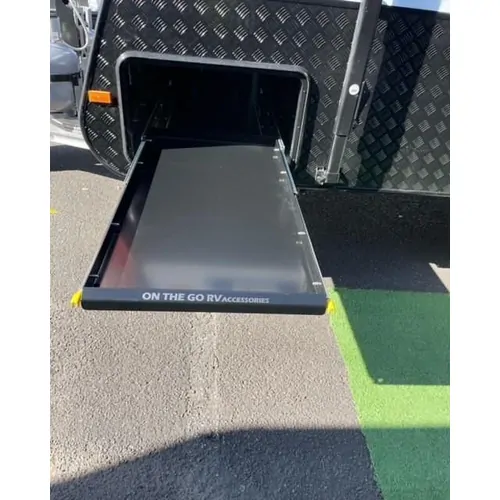

This Drawer Slide is the biggest, 570mm wide x 1200mm long and holds a massive 225KG. Quality lockable runners (both sides) with stainless steel ball bearings to ensure your slide glides perfect everytime.
Made from 3mm 5005 Aluminim PVC Coated and Powder Coated to a Satin Black.
*DRAWER SLIDE ONLY*
- Overall Width: 586mm (includes outside dome nuts)
- Closed Length: 1219mm (+25mm for locking tab)
- Extended Length: 2438mm (+25mm for locking tab)
- Overall Height: 90mm
- Height - 40mm from floor to underside of the tray
- Internal Tray Size: 1200mm x 516mm
- Weight: 22kg
- Weight Capacity: 227kg
- Colour: Satin Black
- Material: 3mm Aluminium
- Lockable Draw Slide: Yes
| SKU | DS570-1200 |
|---|---|
| Barcode # | OEBC538183 |
| Brand | ON THE GO RV ACCESSORIES |
| Shipping Weight | 21.0000kg |
| Shipping Width | 0.610m |
| Shipping Height | 0.120m |
| Shipping Length | 1.280m |
| Shipping Cubic | 0.093696000m3 |
