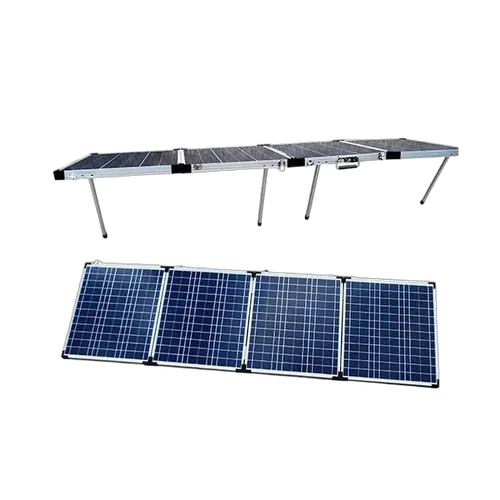

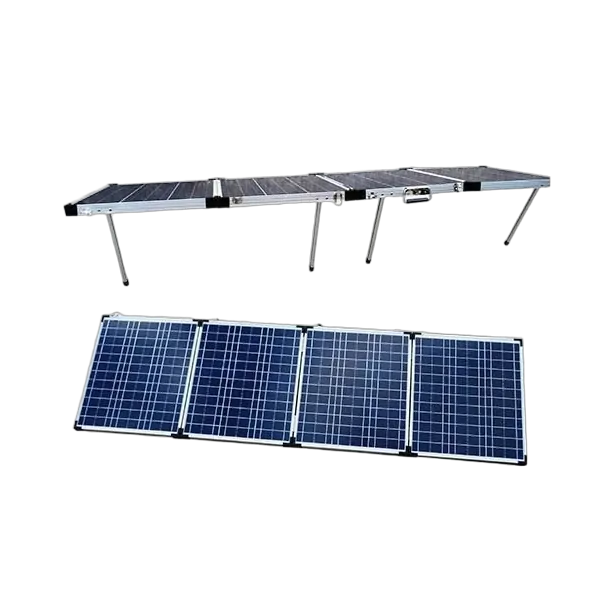

Made from superior quality Poly-Crystalline Cells, the BAINTUFF foldable solar panels are designed to efficiently absorb sunlight providing a portable power source to power your adventures.
Features:
- Compact Poly-Crystalline Cells with corner protectors
- 5m of cabling with Alligator Clips
- Strong aluminium frame with fold-out legs, high quality hinges and latches, plus a fold away handle.
- Compact for easy storage, complete with BainTuff carry bag
DIMENSIONS
- Each 40w Panel = 500mm wide x 590mm High
- 160wat = 4 x 40watt panels
- 40 W Panels 4 PPV160-F4 SPECSPanels web
| RATED MAX POWER (W) | 160W |
| OPTIMUM POWER VOLTAGE VMP | 17.5V |
| OPTIMUM OPERATING CURRENT IMP | 9.14A |
| OPEN CIRCUIT VOLTAGE VOC | 22.0V |
| SHORT CIRCUIT CURRENT ISC | 10.16A |
| MAXIMUM SYSTEM VOLTAGE | 1000V |
| WEIGHT PER PIECE (KG) | 14.7KG |
| SKU | BTPPV160-F4 |
|---|---|
| Barcode # | BTPPV160-F4 |
| Brand | Baintech |
| Shipping Weight | 32.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.590m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.177000000m3 |
Made from superior quality Poly-Crystalline Cells, the BAINTUFF foldable solar panels are designed to efficiently absorb sunlight providing a portable power source to power your adventures.
Features:
- Compact Poly-Crystalline Cells with corner protectors
- 5m of cabling with Alligator Clips
- Strong aluminium frame with fold-out legs, high quality hinges and latches, plus a fold away handle.
- Compact for easy storage, complete with BainTuff carry bag
DIMENSIONS
- Each 40w Panel = 500mm wide x 590mm High
- 160wat = 4 x 40watt panels
- 40 W Panels 4 PPV160-F4 SPECSPanels web
| RATED MAX POWER (W) | 160W |
| OPTIMUM POWER VOLTAGE VMP | 17.5V |
| OPTIMUM OPERATING CURRENT IMP | 9.14A |
| OPEN CIRCUIT VOLTAGE VOC | 22.0V |
| SHORT CIRCUIT CURRENT ISC | 10.16A |
| MAXIMUM SYSTEM VOLTAGE | 1000V |
| WEIGHT PER PIECE (KG) | 14.7KG |
| SKU | BTPPV160-F4 |
|---|---|
| Barcode # | BTPPV160-F4 |
| Brand | Baintech |
| Shipping Weight | 32.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.590m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.177000000m3 |
