RV ventilation has never been easier than with a MaxxFan and has been used in the US RV market since 1988. The MaxxFan Plus and the MaxxFan Deluxe, both have a manual option and an electric opening option, and they also have a ceiling mounted control panel that is easy to use and read.
Product Features:
- Removable flyscreen – simply twist the L-clamps and remove for cleaning
- Powerful 10-speed fan motor
- Fan can run even if the lid is closed (select ‘Ceiling Fan Mode’) and can be used in “intake” and “exhaust” modes
- Provides over 900CFM, keeping your RV cool and comfortable
- Auto Mode allowing automatic on and off function
- Twin lifting arms limit vibrations cause by wind when in the ‘open’ position
- Specification:
- Amp Draw on High: 2.6A
- Amp Draw on Low: 0.17A
- Installs onto all standard 14” x 14” (356mm x 356mm) roof openings
- Dimensions (closed): 461L x 420W x 97H (mm)
- Dimensions (open): 461L x 420W x 311H (mm)
- Installed Weight: 4.1kg
- Roof Thickness: 50mm (min) – 110mm (max)
- Proven MaxxFan gear for RV setups_x000d_
- Ten fan speeds to match conditions_x000d_
- Fits common 356 mm roof cut-outs_x000d_
- Low draw suits small 12V systems_x000d_
- Stable lid support from twin arms_x000d_
- Smart buy for van conversions
- Fan type: 10-speed roof-mounted RV ventilation fan_x000d_
- Airflow output: over 900 CFM_x000d_
- Electrical supply: 12V DC_x000d_
- Amp draw on high speed: 2.6 A_x000d_
- Amp draw on low speed: 0.17 A_x000d_
- Roof opening compatibility: standard 14" x 14" / 356 mm x 356 mm_x000d_
- External dimensions closed: 461 mm L x 420 mm W x 97 mm H_x000d_
- External dimensions open: 461 mm L x 420 mm W x 311 mm H_x000d_
- Installed weight: 4.1 kg_x000d_
- Compatible roof thickness range: 50 mm minimum to 110 mm maximum

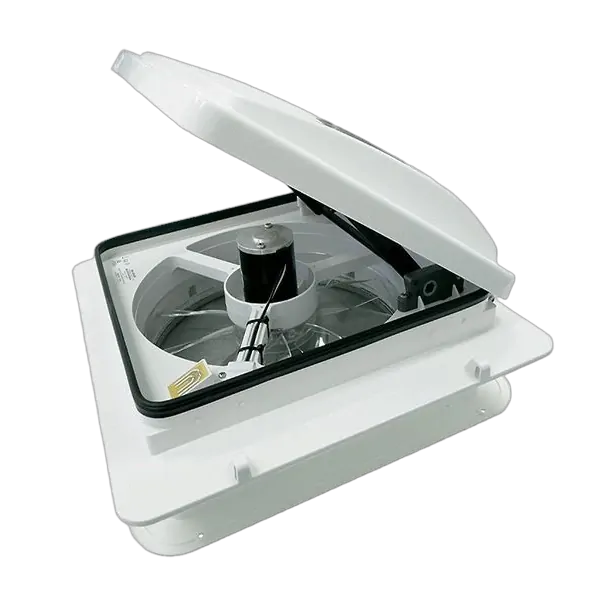

MaxxFan Plus roof vent unit_x000d_
Removable flyscreen_x000d_
Integrated 10-speed fan motor assembly_x000d_
Twin lifting arm lid mechanism_x000d_
Remote control with LCD display
| SKU | 650-03012 |
|---|---|
| Barcode # | 752055006314 |
| Brand | MaxxAir |
| Shipping Weight | 5.6000kg |
| Assembled Length | 0.480m |
| Assembled Height | 0.250m |
| Assembled Width | 0.450m |
Download instructions to help you install, use and get the most out of your product.

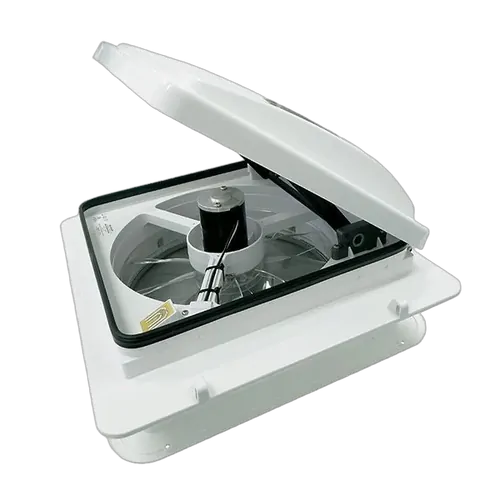

MaxxFan Plus with Thermostat, Power Lift, Rain Sensor and Remote
More infoMake 4 payments of $124.50 over 8 weeks and get it now!
