Description

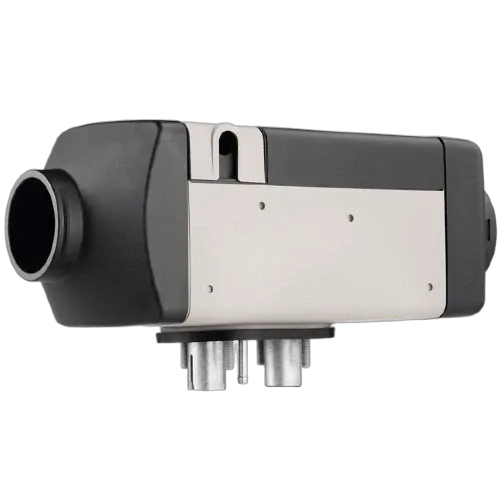

Webasto KTH-1OUTW12V-PGM 12V Diesel Heater Single Outlet with Digital Controller. 12V 2kW diesel fired Air Top heater operates quickly and powerfully, is virtually noiseless and highly economical in fuel and power consumption. Used while the vehicle is stationary, the unit not only warms the cab interior but also dehumidifies for complete comfort. Normal operation of this device would see the heater using 1L of diesel fuel every 5-6hrs. The Air Top heaters are easy to install inside the vehicle due to their compact design and come with a 2 year Australia-wide warranty.
FEATURES AND BENEFITS:
- Low energy consumption
- Quiet operation
- Diesel fuel burner
- Normal operation of this device would see the heater using 1L of diesel fuel every 5-6hrs
- Completely enclosed, no naked flame
- Compact, space saving design
- 2 Year Manufacturers Warranty
SPECIFICATIONS:
- Voltage – 12V
- Height (mm) – 121
- Width (mm) – 120
- Depth (mm)- 317
- Net Weight (kg) – 2.6 Kg
- Fuel Consumption – is 0.12-0.24L per hour (partial-full load)
- Fuel – Diesel
WHAT IS INCLUDED:
- 1x Webasto KTH-1OUTW12V-PGM 12V Diesel Heater Single Outlet with Digital Controller
- 1x Air Top 2000 STC diesel heater unit
- 1x Programmable digital multi-control
- 1x Fuel connector kit: fuel connector (1), fuel clamps (2), fuel filter (1) & exhaust end cap (1)
- 1x Fuel pump harness (7m length)
- 1x Fuel pump kit with mounting hardware
- 1x Exhaust silencer with mounting hardware
- 1x Combustion kit: combustion air silencer (1), combustion air intake (400mm) (1), hose clamp (1)
- 1x Rubber mounting gasket and air grille
- 1x 620 Ohm resistor
- 1x RV main harness
Documentation
- 1x Single outlet accessory kit:
- 1x Stainless steel floor mount heater bracket
- 1x 1m length 60mm ducting
- 4x 47-70mm ducting clamps
- 1x 45° air outlet
- 1x Vent collar
- 1x Vent 60mm flat open
- 1x 0.8m length exhaust pipe
- 1x 6m length fuel line
Features
- 2 kW output handles chilly camps
- Sips 0.12–0.24 L diesel per hour
- Compact size fits under most seats
- Quiet enclosed burner for better sleep
- Single 60 mm outlet ideal for RVs
Specifications
- Heater type: 12V diesel fired Air Top 2000 STC air heater
- Heat output: 2 kW
- Operating voltage: 12V DC
- Height: 121 mm
- Width: 120 mm
- Depth: 317 mm
- Net weight: 2.6 kg
- Fuel type: Diesel
- Fuel consumption: 0.12–0.24 L per hour (partial to full load)
- Typical fuel use: 1 L diesel per 5–6 hours operation
- Outlet configuration: Single outlet with 60 mm ducting
- Warranty: 2 year manufacturer’s Australia-wide warranty
- 1 x Webasto KTH-1OUTW12V-PGM 12V Diesel Heater Single Outlet with Digital Controller
- 1 x Air Top 2000 STC diesel heater unit
- 1 x Programmable digital multi-control
- 1 x Fuel connector kit: fuel connector (1), fuel clamps (2), fuel filter (1) and exhaust end cap (1)
- 1 x Fuel pump harness (7 m length)
- 1 x Fuel pump kit with mounting hardware
- 1 x Exhaust silencer with mounting hardware
- 1 x Combustion kit: combustion air silencer (1), combustion air intake (400 mm) (1), hose clamp (1)
- 1 x Rubber mounting gasket and air grille
- 1 x 620 Ohm resistor
- 1 x RV main harness
- 1 x Single outlet accessory kit
- 1 x Stainless steel floor mount heater bracket
- 1 x 1 m length 60 mm ducting
- 4 x 47–70 mm ducting clamps
- 1 x 45° air outlet
- 1 x Vent collar
- 1 x 60 mm flat open vent
- 1 x 0.8 m length exhaust pipe
- 1 x 6 m length fuel line
| SKU | 053408-A |
|---|---|
| Barcode # | OEBC564635 |
| Brand | Webasto |
| Shipping Weight | 6.0000kg |
