Description
Alko's Premium range of jockeys wheels are made from high quality materials rated with a static capacity of 400kg or 500kg when used with the Alko Extra Wide Clamp.With standard height or extra tall models available and a complete range of wheels sizes from 150mm to 250mm. This style of jockey wheel comes with or without clamps and is suitable for most caravan and trailer applications.

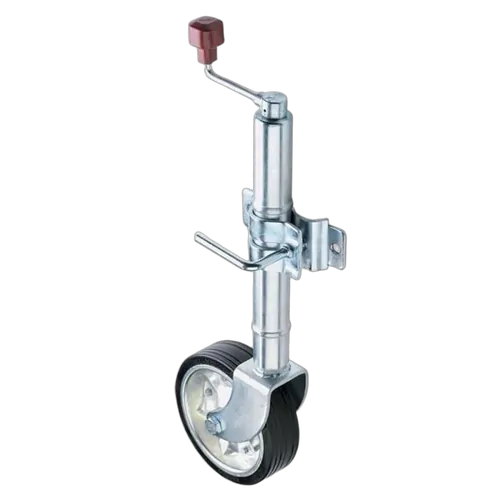

The Alko 628100 is a standard height jockey wheel with a 200mm (8") solid tyre.The zinc coated 48mm diameter shaft has 3 clamping positions providing a lift range of 262mm to 697mm between the ground and centre of drawbar.This unit is ideal for caravans or trailers which require movement on soft or uneven groundonce detached from tow vehicle.
This unit includes the standard Alko clamp, however if you wish to increase the rating to 500kg the extra wide clamp is available as a related product below.
Features
- Large heavy duty wheel for easy manoeuvring on soft or uneven surfaces
- Included Alko Standard Clamp - this can bolted or welded on. (Bolts not included)
- Zinc coated for lasting protection
- 1 year warranty.
- Proven 400kg rating for drawbars
- Solid 200mm wheel for campsite use
- Zinc-coated 48mm shaft handles weather
- Three clamp settings suit different trailers
- Bolt-on or weld-on clamp for setups
- Smart buy for frequent caravan towing
- Brand: Alko
- Model: 628100
- Product type: Standard height jockey wheel with clamp
- Wheel diameter: 200mm (8")
- Tyre type: Solid tyre
- Shaft diameter: 48mm
- Static capacity with standard clamp: 400kg
- Static capacity with Alko extra wide clamp: 500kg

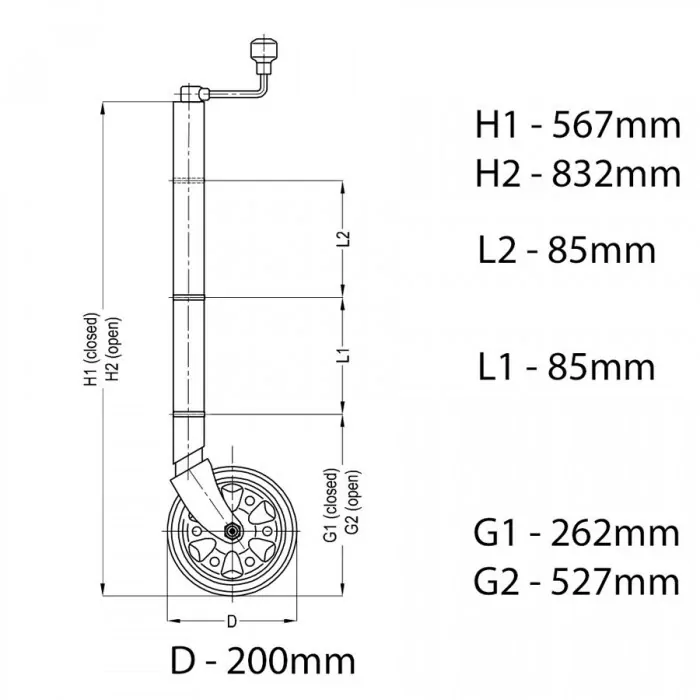

- Lift range (ground to centre of drawbar): 262mm to 697mm
- Closed height (H1): 567mm
- Open height (H2): 832mm
- Inner lift section L1: 85mm
- Outer lift section L2: 85mm
- Ground to drawbar height closed (G1): 262mm
- Ground to drawbar height open (G2): 527mm
- Finish: Zinc coated steel
- Clamp type: Standard Alko clamp (bolt-on or weld-on)
- Warranty: 1 year (manufacturer)
- Suitable applications: Caravans and trailers
- Wheel construction: Heavy duty for soft or uneven surfaces
- Alko 8" jockey wheel assembly (model 628100)
- Standard Alko clamp (bolt-on or weld-on)
- Solid 200mm (8") tyre and rim fitted to wheel fork
- Integrated winding handle with knob
| SKU | 450-00620 |
|---|---|
| Barcode # | OEBC523994 |
| Brand | Alko |
| Shipping Weight | 6.8800kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.680m |
| Shipping Length | 0.210m |
