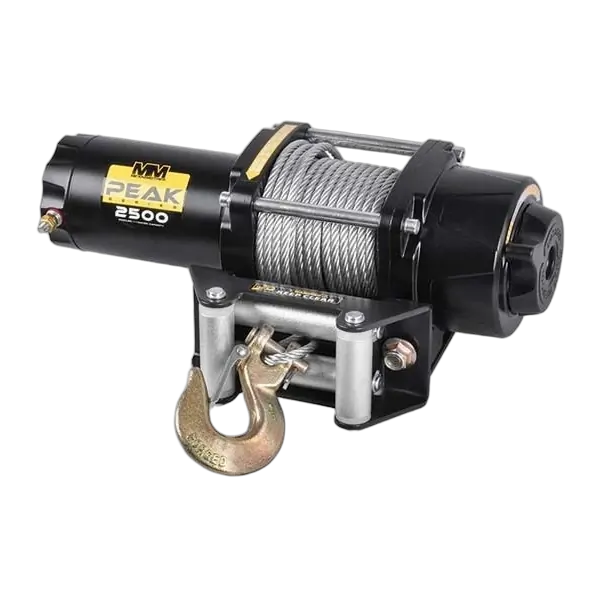

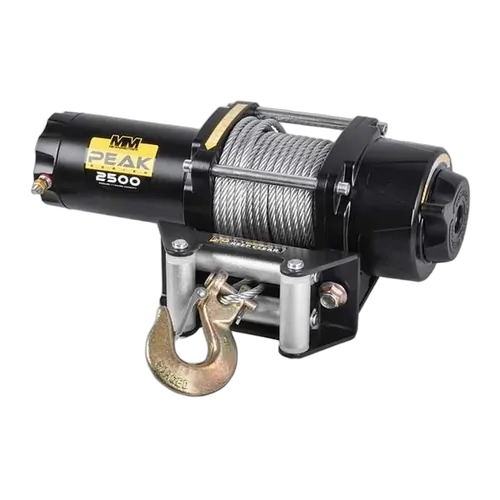

Mean Mother ATV winches have been designed to be compact and light weight and are ideal for most ATV/UTV vehicles. The 2500lb model are supplied with a universal mounting plate for easy installation. The 2500lb winch has more than enough power to recover ATV/UTV vehicles from most situations. Mean Mother 2500lb winch model uses a two stage planetary gearbox. All the winches in the range have a clutch system allowing the user to disengage the gearbox and free spool the cable. Please Note: When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).
What's In the Box?
- Winch
- Winch mounting plate
- Solenoid (contactor)
- Handle bar switch with mounting bracke
- Power cable kit - 4.76mm x 12m, (7x19 construction galvanised aircraft cable)
- Roller Fairlead
- 1/4" Clevis Hook
- Hand Saver Hook Strap
- Detailed Instruction Manual
- Warranty registration Card
- Winch and Fairlead Mounting Hardware (Bolts and Nuts)
| Recommended Battery | Minimum 650CCA |
| Gear Ratio | 242:01:00 |
| Gear Tran | 2 Stage Planetary |
| Clutch | Turn 90° by handle |
| Cable | 4.76mm x 12m (3/16" x 39') |
| Control | Handle bar mountable switch, 2.4m lead |
| Motor Type | Permanent magnet |
| Overall Dimensions | 333.5mm x 116mm x 114mm (13.13" x 4.57" x 4.5") |
| Specifications | 2500lb (1135kg) |
| Motor | 3 Hp, 2.2 Kw |
| Net weight | 11.4kg |
| Drum Size | 50mm x 80mm(2.5" x 3.15") |
| Motor Power Cable | 1 x 600mm x 8mm² & 1 x 450mm x 8mm² |
| Finish | Powder Coating |
| Braking | Self locking brake |
| Battery Power Cable | 2 x 2350mm x 8mm² |
| Clevis hook | 1/4" |
| voltage | 12 Volt |
| Mounting Bolt Pattern | 124mm x 76mm (4.88" x 3") |
| SKU | EW2500 |
|---|---|
| Barcode # | 9311902021514 |
| Brand | Mean Mother |
| Shipping Weight | 12.0000kg |
Download instructions to help you install, use and get the most out of your product.
