The Hi-Lift Jack Company offers the only all-cast jack manufactured in the world today. Our casting jack is manufactured from high yield and tensile strength iron castings, the same durable metal that we have used for over 100 years.
- All-Cast Construction.
- 7000lb (3175.14kg) Tested Capacity.
- Available in 48" Heights 122cm
- Lifts, Winches, Clamps, & More.
- Most Durable Design.
- Tested and certified to meet applicable requirements of ASME B30.1-2015.
|
HL-605 |
|
|
Size |
60” (152 cm) |
|
Min. Lift Height |
4.5" (11.43 cm) |
|
Max. Lift Height |
49.75" (126.37 cm) |
|
Overall Height |
61.75" (156.85 cm) |
|
Width |
5" (12.7 cm) |
|
Depth |
9.63" (24.46 cm) |
|
Rated Load (RL) |
4,660 lbs (2,113 kg) |
|
RL on upper 12" (30.5cm) |
2,660 lbs (1206 kg) |
|
Tested Load (TL) |
7,000 lbs (3,175 kg) |
|
TL on upper 12" (30.5cm) |
4,000 lbs (1,814 kg) |
|
Winching Capacity |
5,000 lbs (2,268 kg) |
|
Clamping Capacity |
750 lbs (340 kg) |
|
Weight |
31.31 lbs (14.2 kg) |
- Proven all-cast iron jack gear
- 60 inch bar for high lift points
- Rated 4,660 lb for real recoveries
- Winch pull capacity to 5,000 lb
- Compact base for bumper and sill work
- Solid 14.2 kg unit for rack storage
- Construction: All-cast high yield and tensile strength iron castings
- Size: 60" overall bar length (152 cm)
- Overall height: 61.75" (156.85 cm)
- Minimum lift height: 4.5" (11.43 cm)
- Maximum lift height: 49.75" (126.37 cm)
- Width: 5" (12.7 cm)
- Depth: 9.63" (24.46 cm)
- Rated load: 4,660 lbs (2,113 kg)
- Rated load on upper 12": 2,660 lbs (1,206 kg)
- Tested load: 7,000 lbs (3,175 kg)
- Tested load on upper 12": 4,000 lbs (1,814 kg)
- Winching capacity: 5,000 lbs (2,268 kg)
- Clamping capacity: 750 lbs (340 kg)
- Weight: 31.31 lbs (14.2 kg)
- Certification: Tested and certified to ASME B30.1-2015
- Functions: Lifts winches clamps and more
- 1 x Hi-Lift All-Cast Jack 60" (152 cm)
| SKU | HL-605 |
|---|---|
| Barcode # | OEBC716978 |
| Brand | Hi-Lift |
| Shipping Weight | 14.5000kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.250m |
| Shipping Length | 1.550m |
| Shipping Cubic | 0.050375000m3 |

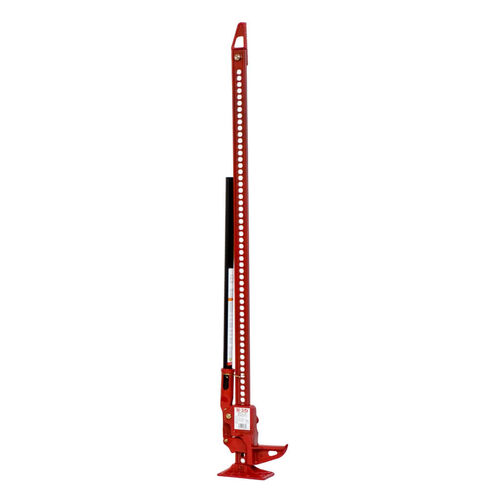

Hi-Lift All-Cast Jack - 60"
