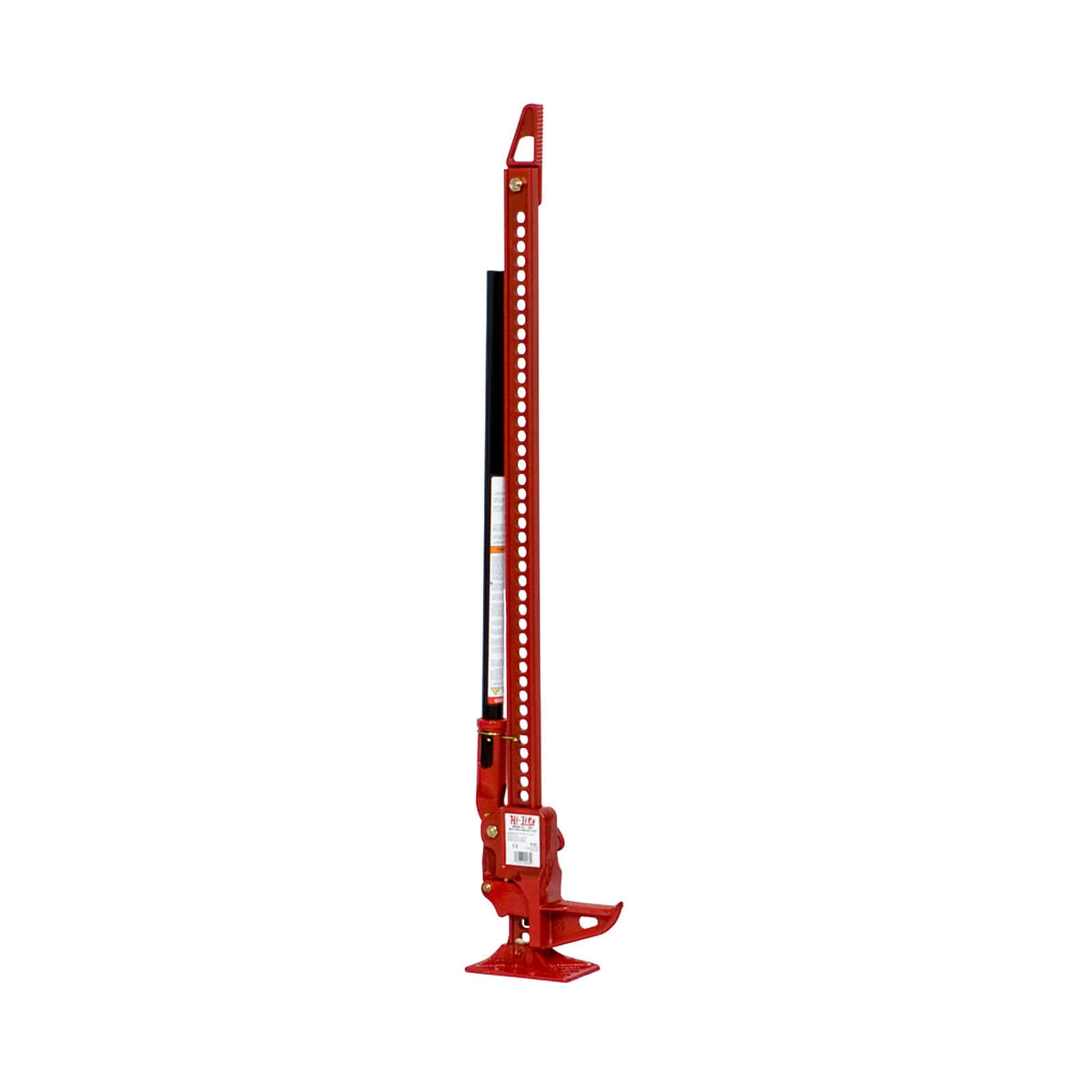

The Hi-Lift Jack Company offers the only all-cast jack manufactured in the world today. Our casting jack is manufactured from high yield and tensile strength iron castings, the same durable metal that we have used for over 100 years.
- All-Cast Construction.
- 7000lb (3175.14kg) Tested Capacity.
- Available in 48" Heights 122cm
- Lifts, Winches, Clamps, & More.
- Most Durable Design.
- Tested and certified to meet applicable requirements of ASME B30.1-2015.
|
|
HL-485 |
|
Size |
48” (122 cm) |
|
Min. Lift Height |
4.5" (11.43 cm) |
|
Max. Lift Height |
38.63" (98.12 cm) |
|
Overall Height |
50.75" (128.91 cm) |
|
Width |
5" (12.7 cm) |
|
Depth |
9.63" (24.46 cm) |
|
Rated Load (RL) |
4,660 lbs (2,113 kg) |
|
RL on upper 12" (30.5cm) |
- |
|
Tested Load (TL) |
7,000 lbs (3,175 kg) |
|
TL on upper 12" (30.5cm) |
- |
|
Winching Capacity |
5,000 lbs (2,268 kg) |
|
Clamping Capacity |
750 lbs (340 kg) |
|
Weight |
28.16 lbs (12.77 kg) |
- High-yield cast iron throughout
- 48 inch rack for tall lifts
- 4,660 lb rated load capacity
- 5,000 lb winching for recoveries
- Compact 5 by 9.63 inch base
- Trusted Hi-Lift gear we rate
- Brand: Hi-Lift
- Model: HL-485
- Construction: All-cast high yield iron
- Size: 48" (122 cm)
- Minimum lift height: 4.5" (11.43 cm)
- Maximum lift height: 38.63" (98.12 cm)
- Overall height: 50.75" (128.91 cm)
- Width: 5" (12.7 cm)
- Depth: 9.63" (24.46 cm)
- Rated load: 4,660 lbs (2,113 kg)
- Tested load: 7,000 lbs (3,175 kg)
- Winching capacity: 5,000 lbs (2,268 kg)
- Clamping capacity: 750 lbs (340 kg)
- Weight: 28.16 lbs (12.77 kg)
- Tested and certified to ASME B30.1-2015
- 1 x Hi-Lift All-Cast Jack 48" (122 cm)
| SKU | HL-485 |
|---|---|
| Barcode # | OEBC716977 |
| Brand | Hi-Lift |
| Shipping Weight | 13.0000kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.250m |
| Shipping Length | 1.300m |
| Shipping Cubic | 0.042250000m3 |
