Fiamma Bike Rack Caravan

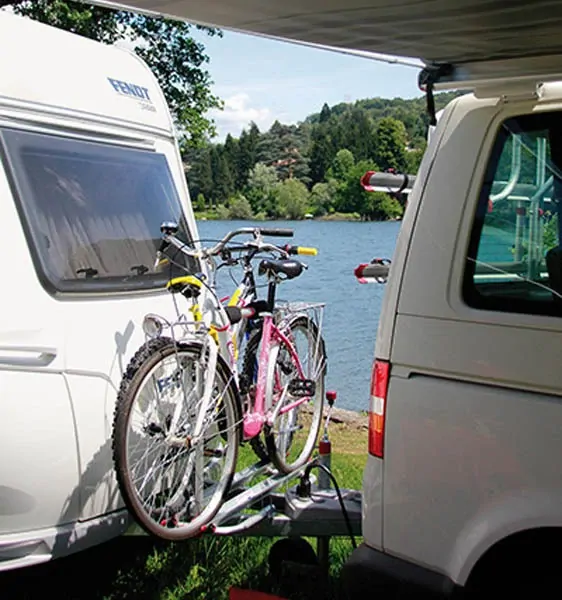

Bringing an extra two wheels with you on holiday is a great solution if you just want to nip down the road to the shops for a quick cuppa, without having to take the entire rig with you. A Fiamma bike rack is a convenient and compact solution to transport up to two bicycles with you on the front of a caravan. The Fiamma Carry Bike is made from reinforced aluminium for a light weight and durable solution to storing your bikes whilst not in use. Weighing in at just 5kgs, this caravan bike rack fits all caravan with a standard A frame, with no drilling or welding required for installation. Designed to pivot forward and out of the way, so you can still easily access storage at the front with this high quality, Fiamma bike rack still attached. The Fiamma Carry Bike is the perfect addition to any avid cyclists who want the most out of their holiday adventures.

TIP: Also buy the Fiamma Bike Block Pro

Product Features:

• Fits all caravans with a standard A-frame (up to 140mm)
• Pivots forward allowing access to the storage compartment
• Easily installed (no drilling required)
• Rail support base reinforced with new aluminium blocking system

Specifications:

• Max Load Weight: 35kg
• Carries 2 bikes
• Weighs 5.3kg
• A frame U bolt length 150mm long X 67MM wide

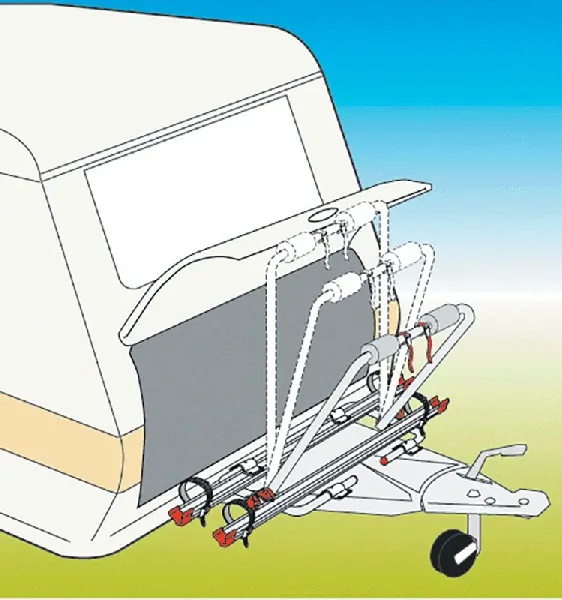

PLEASE NOTE: To avoid interference with a front storage box or access door, please measure your A Frame and allow for at least 500mm space from the front of the caravan to the intended install location of the bike carrier.

What types of bikes fit on this rack?

The rack is built to carry two standard bikes with a combined weight of 35 kg. It works well for road bikes, most mountain bikes, and kids’ bikes. Tyres up to about 2.8 inches wide, or just under 7 cm, fit securely in the rails. Wider tyres, like those on fat bikes, may not sit properly. Very heavy e-bikes can also push past the weight limit, so they are not recommended.

How do I load the bikes onto the rack?

Place the first bike closest to the caravan and set the second bike facing the opposite way. This stops the pedals and handlebars from clashing. Turn the front wheels slightly so the handlebars don’t press against the caravan body. Secure each wheel and frame using the supplied straps, pulling them tight so the bikes don’t move. If you want extra stability for long trips, you can add a Fiamma Bike Block Pro to hold them even firmer.

Download Instructions
