Features
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
Enerdrive has a range of Mono & Poly Crystalline solar panels from 10 to 200watts. Each module is typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Enerdrive stocks a full range of spare cables. With a mass of factories developing solar panels around the world, the biggest choice is ‘Where to buy” & even more importantly “What quality and support am I getting”. Enerdrive can become your single point contact for all things relating to solar products, warranty and importantly that same level of support that we have provided
for many years with all Enerdrive products.
If you buy from us you will ALWAYS be dealing with Enerdrive for warranty, and we won’t hide behind supplier warranty statements or clauses. Enerdrive’s volume will allow us to ensure that any quality or warranty issue can be dealt with LOCALLY.
Specifications
| Enerdrive Part Number | SP-EN190W |
|---|---|
| Max Power Pm(W) | 190 |
| Power Tolerance % | ± 5% |
| Max Power Voltage Vm(V) | 20.00 |
| Max Power Current Im(A) | 9.50 |
| Open Circuit Voltage Voc(V) | 24.80 |
| Short Circuit Current Isc(A) | 10.07 |
| Max System Voltage (VDC) | 1000 |
| Dimensions (mm) | 1500 x 680 x 35 |
| Weight (kg) | 11.5 |
| Test Conditions | 1000W/m² , AM1.5 , 25°C |
- 190W panel to keep batteries working
- Mono cells give proven, steady output
- MC4 connectors match common touring gear
- 1500 x 680 mm size suits racks and roofs
- 11.5 kg panel weight easy to handle
- Smart buy for fixed off-grid setups
- Enerdrive part number: SP-EN190W
- Panel type: fixed monocrystalline
- Maximum power: 190 W
- Power tolerance: ±5%
- Maximum power voltage (Vm): 20.00 V
- Maximum power current (Im): 9.50 A
- Open circuit voltage (Voc): 24.80 V
- Short circuit current (Isc): 10.07 A
- Maximum system voltage: 1000 VDC
- Dimensions: 1500 mm x 680 mm x 35 mm
- Weight: 11.5 kg
- Test conditions: 1000 W/m², AM1.5, 25°C
- Typical open circuit voltage: around 20+ VDC
- Suited to 12 V systems or 24 V via series connected panels
- Larger panel configuration with MC4-compatible connectors
- Black frame finish
- 1 x Enerdrive 190W fixed monocrystalline solar panel with black frame
- Pre-installed MC4-compatible solar cable connectors
| SKU | SP-EN190W-B |
|---|---|
| Barcode # | 9342616020890 |
| Brand | Enerdrive |
| Shipping Weight | 11.5000kg |
| Shipping Width | 0.680m |
| Shipping Height | 0.040m |
| Shipping Length | 1.500m |
| Shipping Cubic | 0.040800000m3 |
Download instructions to help you install, use and get the most out of your product.

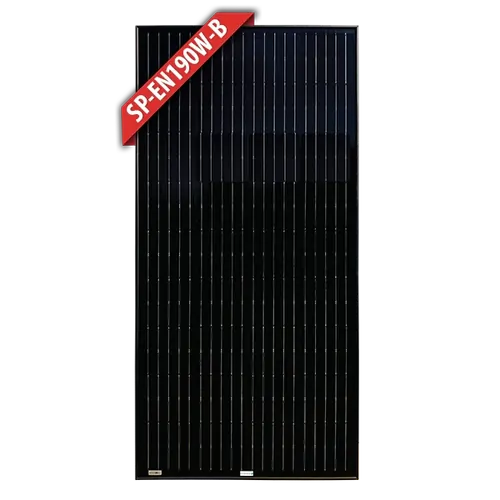

Enerdrive 190W Fixed Mono Solar Panel - Black Frame
